Seamless 2507 Super Duplex Tubing , Duplex SS Pipe 3/4 Inch XBWG14x20ft

China Seamless 2507 Super Duplex Tubing , Duplex SS Pipe 3/4 Inch XBWG14x20ft supplier
Seamless 2507 Super Duplex Tubing , Duplex SS Pipe 3/4 Inch XBWG14x20ft supplier Seamless 2507 Super Duplex Tubing , Duplex SS Pipe 3/4 Inch XBWG14x20ft supplier Seamless 2507 Super Duplex Tubing , Duplex SS Pipe 3/4 Inch XBWG14x20ft supplier Seamless 2507 Super Duplex Tubing , Duplex SS Pipe 3/4 Inch XBWG14x20ft supplier

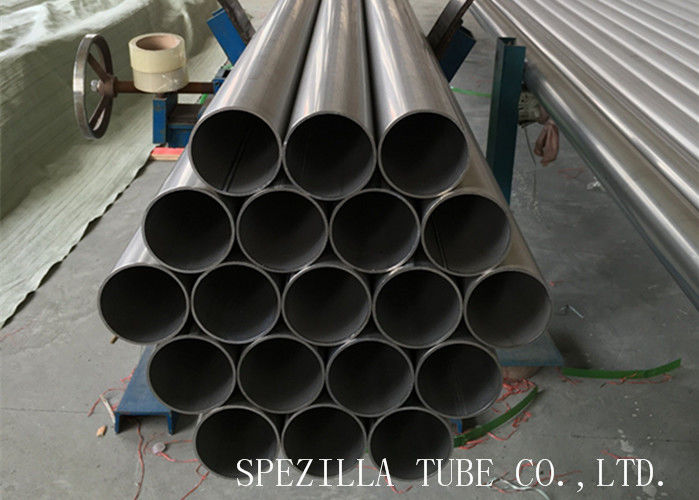

Large Image :  Seamless 2507 Super Duplex Tubing , Duplex SS Pipe 3/4 Inch XBWG14x20ft

Product Details:

Place of Origin: CHINA
Brand Name: SPEZILLA
Certification: ISO9001:2008, PED 97/23/EC
Model Number: Seamless Tube

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: PLY-WOODEN CASE / BUNDLE WITH PLASTIC CAP
Delivery Time: 25 DAYS
Payment Terms: T/T or L/C
Supply Ability: 1000 TONS / MONTH
Contact Now
Detailed Product Description
Materials: Duplex Steel UNS S32507 Product Name: Duplex Stainless Steel Tube
Standard: ASME SA789 O.D.: 5/8"-2"
W.T.: BWG18-BWG14 Length MAX: 12000MM Max.
Type: Seamless Shape: Round
Surface: Bright Annealed Application: Heat Exchanger
Package: Wooden Case

2507 Super Duplex Stainless Steel Seamless Tube ASTM A789 3/4"xBWG14x20ft





Super Duplex 2507 Stainless Steel (UNS S32750 and UNS S32760)



Certain projects require the use of materials that provide exceptional strength and corrosion resistance. Duplex 2507 stainless steel exceeds the standard requirements of stainless steel, with a SAF 2507 alloy that combines the benefits of chromium, molybdenum and nickel within a single steel material. Super duplex 2507 is highly useful in corrosive environments where resistance to crevice corrosion and pitting is a must. Due to these beneficial qualities, SAF 2507 is extremely useful in a wide range of industrial applications throughout the world.



Duplex Alloy 2507 is a super duplex stainless steel with 25% chromium, 4% molybdenum and 7% nickel. It has excellent resistance to chloride stress corrosion cracking, high thermal conductivity, and a low coefficient of thermal expansion. The high chromium, molybdenum and nitrogen levels provide excellent resistance to pitting, crevice and general corrosion. The impact strength is also high. Duplex Alloy 2507 is not recommended for applications which require long exposures to temperatures above 570 °F because of the risk of a reduction in toughness.



CHEMISTRY TYPICAL

Carbon: 0.03 max
Manganese: 1.2 max
Phosphorus: 0.035 max
Sulfur: 0.020 max
Silicon: 0.80 max
Chromium: 24.00 - 26.00
Nickel: 6.00 - 8.00
Molybdenum: 3.00 - 5.00
Nitrogen: 0.24 - 0.32
Copper: 0.50 max
Iron: Balance



PHYSICAL PROPERTIES

Density: 0.28 lbs/in3 7.75 g/cm3

Thermal Conductivity: BTU-ft/hr/ft2/°F (W/m-° K):
At 68 - 212 °F (20 - 100 °C): 9.0 (17.0)

Mean Coefficient of Thermal Expansion: in/in/°F (µm/m•K):
32 - 212 °F: 7.2 x 10·6 (13)

Modulus of Elasticity: ksi (MPa):
29 x 103 (200 x 103) in tension

Melting Point: 2570 - 2660 °F (1410 - 1460 °C)







Specifications:





S32750 Standard Specification:



Standard ASTM A789, ASME SA789
Equivalent Standards DIN 17458, GOST 9941-81, GOST 9940-81, EN 10216-5, ASTM A790, ASME SA790, DIN 17456
Material S32750
Equivalent Materials X2CrNiMoN25-7-4, 1.4410, SAF2507, F53
Related Products stainless steel tube, stainless steel pipe, heat exchanger steel tube, ASTM A789



Features

  • High resistance to chloride stress corrosion cracking
  • Chloride pitting and crevice corrosion resistance superior to 317L stainless
  • Good general corrosion resistance
  • High strength
  • Good sulfide stress corrosion resistance
  • Useful up to 600°F



Applications

  • Chemical process vessels, piping, and heat exchangers
  • FGD scrubber systems
  • Pulp mill digesters, bleach washers, chip presteaming vessels
  • Food process equipment
  • Oil field piping, heat exchangers





ASTM A789 S32750 (SAF2507) Stainless Steel Tubes Chemical Composition



C % Si % Mn % P % S % Cr % Ni % Mo % N % Cu %
0.03 max 0.8 max 1.2 max 0.035 max 0.02 max 24.0-26.0 6.0-8.0 3.0-5.0 0.24-0.32 0.50 max

ASTM A789 S32750(SAF2507) Stainless Steel Pipe Mechanical Properties

Tensile Strength, Mpa Yield Strength, MPa Elongation, % Hardness, HB
800 min 550 min 15 min 310 max



Seamless 2507 Super Duplex Tubing , Duplex SS Pipe 3/4 Inch XBWG14x20ft
