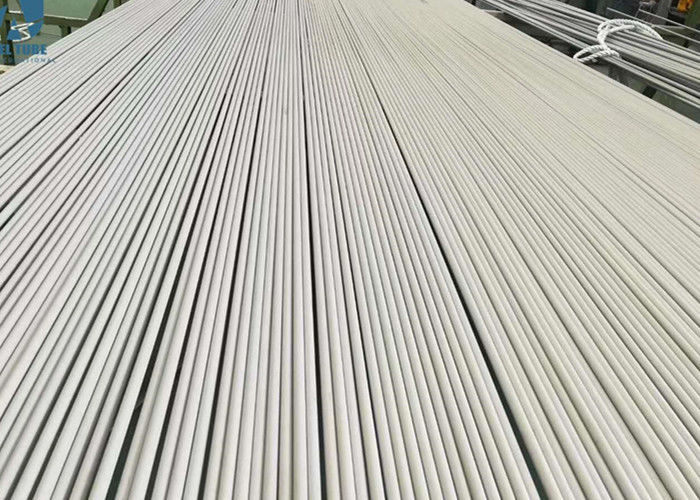

Cold Drawn Corrosion Resistance ASTM A789 UNS S31803 Pipe

Cold Drawn Corrosion Resistance ASTM A789 UNS S31803 Pipe
Cold Drawn Corrosion Resistance ASTM A789 UNS S31803 Pipe

Large Image :  Cold Drawn Corrosion Resistance ASTM A789 UNS S31803 Pipe

Product Details:
Place of Origin: CHINA
Brand Name: SPEZILLA
Certification: ISO
Model Number: Round Tube
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: wooden cases/Bundle
Delivery Time: 20 days
Supply Ability: 1000Tons/Month
Detailed Product Description
Standard: ASTM A789 ASME SA789 Steel Grade: 2205 S31803
Process: Cold Drawn Size: 6mm-1016mm
Surface Finish: Fully Annealed MTR: EN10204 3.1
Shape: Round Application: Industry Petroleum
Package: Wooden Case Product Name: Stainelss Steel Tube
High Light:

Cold Drawn astm a789 uns s31803

,

A789 uns s31803 pipe

,

S31803 Duplex Stainless Steel Tube

S31803 Tube,ASME SA789 ASTM A789 2205 Duplex Stainless Steel Seamless Tube​



S31803 Pipe SA 789 A789 S31803 Duplex Tube A790 SA790 S31803 Pipe



 Alloy ASME SA789 S31803 Stainless Steel Pipe provides pitting and crevice corrosion resistance superior to316L or 317L austenitic stainless steel in almost all corrosive media. It also has high corrosion and erosion fatigue properties as well as lower thermal expansion and higher thermal conductivity than austenitic.The advantage of a duplex structure is that it combines the favorable qualities of a ferritic alloy stress corrosion cracking resistance and high strength with austenitic alloy ease of fabrication and corrosion resistance.



Item Duplex Stainless Steel Tube/Stainless Steel Tubing/Stainless Steel Pipe
Standard ASTM A249/A213/A269/A554/A270/A312/A268/A778/A790/A789/A511
A335/A376/B161/B163/B167/B338/B668/B677/B622
DIN11850/17456/17458/SMS/ISO2037/ISO1127/EN10217-7 EN 10217-7
Grade Austenite:201/202/301/304/304L/304N/304LN/309S/310S/316/316L/316TI
Ferritic:409,409L,410,420,430,431,439,440,441,444
Duplex stainless steel:S31803,S32205,S31500,S32550,S32304,S32750
Nickel Alloy:Hastelloy,Inconel,Monel Alloy
Special Stainless Steel:904L,347/347H,317/317L,316Ti,254Mo
OD 3.175mm-1016mm
Thickness 0.5-20mm
Length 1000-12000mm or as required
Tolerance a) Outer Diameter:according to standards or as required.
b) Thickness: +/- 10% or as required.
c) Length: -0 +5mm
Finish Polished,MF,AP, BA(Bright&Annealed) or as required
Application Boiler, Heat Exchanger, Construction, Pharmacy, Power, Petrochemical
Machinery, Oil, Gas, and Auto industry...
Test Flattening test, Bend test, Hydrostatic, Eddy Current, Hardness,
Heat Treatment, Flaring test, I.C.test,
Certification ISO EN 1024 3.1/ 3.1B/ 3.2, PED, DNV, TUV.
Package Plywood Cases or as required.
Lead Time 7-30 days depend on quantity.



Tube Size



MINAL
DIAMETER NPS
OUTSIDE
DIAMETER(MM)
SCH-5S
WALL THICKNESS(MM)
SCH-10S
WALL THICKNESS(MM)
SSCH-40S
WALL THICKNESS(MM)
1/4 13.72   1.65 2.24
3/8 17.15   1.65 2.31
1/2 21.34 1.65 2.11 2.77
3/4 26.67 1.65 2.11 2.87
1 33.40 1.65 2.77 3.38
1 1/4 42.16 1.65 2.77 3.56
1 1/2 48.26 1.65 2.77 3.68
2 60.3 1.65 2.77 3.91
2 1/2 73.03 2.11 3.05 5.16
3 88.90 2.11 3.05 5.49
3 1/2 101.60 2.11 3.05 5.74
4 114.30 2.11 3.05 6.02
5 141.30 2.77 3.40 6.55
6 168.28 2.77 3.40 7.11
8 219.08 2.77 3.76 8.18
10 273.05 3.40 4.19 9.27
12 323.85 3.96 4.57 9.53
14 355.60 3.96 4.78 9.53
16 406.40 4.19 4.78 9.53
18 457.20 4.19 4.78 9.53
20 508.00 4.78 5.54 9.53
22 558.80 4.78 5.54
24 609.60 5.54 6.35 9.53
30 762.00 6.35 7.92

32

|

80

812.8

|

2032.0

(Thickness):6.35~30mm

Nominal diameter and wall thickness subject to the approval of vendor and purchaser
