ASTM A312 TP310 / 310S Stainless Steel Seamless Pipe , SS Seamless Steel Pipe ANSI B36.10

China ASTM A312 TP310 / 310S Stainless Steel Seamless Pipe , SS Seamless Steel Pipe ANSI B36.10 supplier
ASTM A312 TP310 / 310S Stainless Steel Seamless Pipe , SS Seamless Steel Pipe ANSI B36.10 supplier ASTM A312 TP310 / 310S Stainless Steel Seamless Pipe , SS Seamless Steel Pipe ANSI B36.10 supplier ASTM A312 TP310 / 310S Stainless Steel Seamless Pipe , SS Seamless Steel Pipe ANSI B36.10 supplier ASTM A312 TP310 / 310S Stainless Steel Seamless Pipe , SS Seamless Steel Pipe ANSI B36.10 supplier

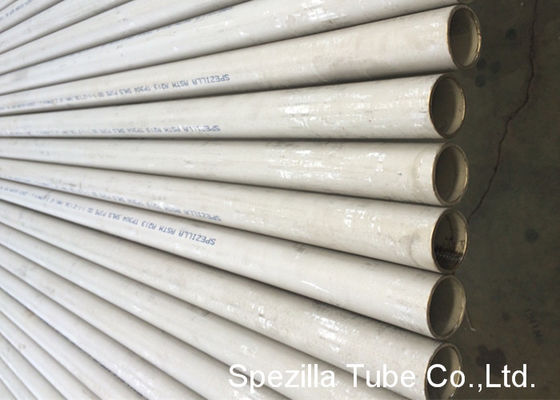

Large Image :  ASTM A312 TP310 / 310S Stainless Steel Seamless Pipe , SS Seamless Steel Pipe ANSI B36.10

Product Details:

Place of Origin: CHINA
Brand Name: SPEZILLA
Certification: ISO9001:2008, PED 97/23/EC
Model Number: ASTM A312

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: PLY-WOODEN CASE / BUNDLE WITH PLASTIC CAP
Delivery Time: 10 DAYS
Payment Terms: T/T or L/C
Supply Ability: 1000 TONS / MONTH
Contact Now
Detailed Product Description
Product Name: Stainless Steel Seamless Pipe Standard: ASTM A312/ASME SA312
Materials: TP310/310S O.D.: 1/2'' - 24''
W.T.: SCH5S - 80S Length MAX: 12000MM Max.
Pipe Finish: Cold Rolled Shape: Round
Package: Wooden Case/Bundle Application: Indsutry
Finish: Annealed&Pickled

ASTM A312 TP310 / 310S Stainless Steel Seamless Pipe , SS Seamless Steel Pipe ANSI B36.10





SPEZILLA TUBE stocks stainless steel Seamless pipe per ASTM A 312 in 304/304L and 316/316L. We supply other stainless grades, including 304H, 316H, 309/S, 310/S, 317/L, 321/H, 347/H, 904L, 330, 254SMO, 410. In duplex grades, we can supply 2205 and 2507. Some nickel grades are also supplied.



We supply a full range of pipe schedules ranging from Sch 5 thru Double Extra Heavy. Most products are available in 20′ random length sections, but SPEZILLA can supply stainless steel seamless pipe in most stainless grades in sections exceeding 40′. All stainless steel seamless pipes can be cut to your exact requirements. Some made to order items can be produced in 2-3 weeks.



Nominal Wall Thickness:

  • Nominal Wall Tolerance Plus 12.5%, Minus 12.5%
  • These do not conform to the American National Standard for Welded and Seamless Wrought Steel Pipe
    (ANSI B 36.10 – 1979)

NPS Designator

Outside Diameter in.

Schedule 10S in.

Schedule 40S in.

Schedule 80S in.

Schedule 160 in.

Schedule XX in.

1/4 0.540 0.065 0.088 0.119
3/8 0.675 0.065 0.091 0.126
1/2 0.840 0.083 0.109 0.147 .188 .294
3/4 1.050 0.083 0.113 0.154 .218 .308
1.0 1.315 0.109 0.133 0.179 .250 .358
1 1/4 1.660 0.109 0.140 0.191 .250 .382
1 1/2 1.900 0.109 0.145 0.200 .281 .400
2 2.375 0.109 0.154 0.218 .343 .436
2 1/2 2.875 0.120 0.203 0.276 .375 .552
3 3.500 0.120 0.216 0.300 .438 .600
3 1/2 4.000 0.120 0.226 0.318   .636
4 4.500 0.120 0.237 0.337 .534 .674
5 5.563 0.134 0.258 0.375 .625 .750
6 6.625 0.134 0.280 0.432 .719 .864
8 8.625 0.148 0.322 0.500 .906 .875
10 10.750 0.165 0.365 0.500 1.125
12 12.750 0.180 0.375 0.500 1.312
14 14.000 0.188 0.375 0.500 1.406
16 16.000 0.188 0.375 0.500 1.594

Minimum Wall Thickness on Inspection:

  • The following equation, upon which this table is based, may be applied to calculate minimum wall thicknesses from nominal wall thickness:
    • tn * 0.875 = tm
      Where:
      tn = nominal wall thickness, in. [mm], and
      tm= minimum wall thicknesses, in. [mm]
    • The wall thickness is inch-pound units is rounded to three decimal places in accordance with the rounding method of Practice E29. The wall thickness in SI units is rounded to one decimal place in accordance with the rounding method of Practice E29.
  • This table is a master table covering wall thicknesses available in the purchase of different classifications of pipe, but it is not meant to imply that all the walls listed herein are
  • necessarily obtainable for the applicable product specification.

ASTM A312 TP310 / 310S Stainless Steel Seamless Pipe , SS Seamless Steel Pipe ANSI B36.10
