1000mm ASME SA789 Duplex Steel Pipe High Thermal Conductivity

1000mm ASME SA789 Duplex Steel Pipe High Thermal Conductivity
1000mm ASME SA789 Duplex Steel Pipe High Thermal Conductivity

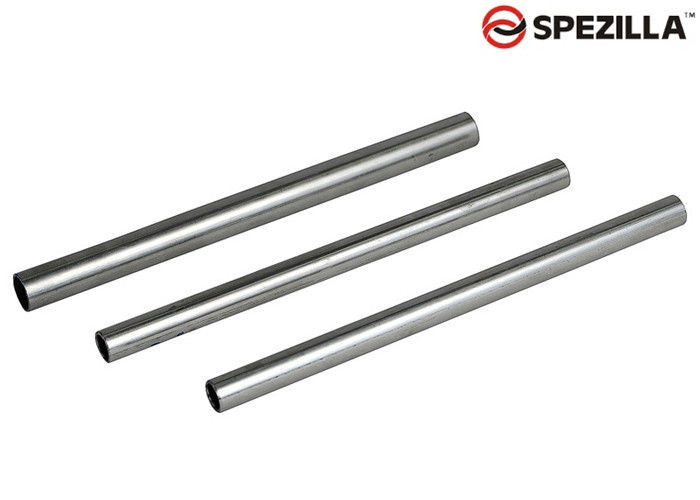

Large Image :  1000mm ASME SA789 Duplex Steel Pipe High Thermal Conductivity

Product Details:
Place of Origin: CHINA
Brand Name: SPEZILLA
Certification: ISO
Model Number: Round Tube
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: wooden cases/Bundle
Delivery Time: 20 days
Supply Ability: 1000Tons/Month
Detailed Product Description
Product Name: Super Duplex Stainelss Steel Tube Standard: ASTM A789 ASME SA789
Steel Grade: UNS S32750 2507 Process: Cold Drawn
Size: 6mm-1016mm Surface Finish: Fully Annealed
MTR: EN10204 3.1 Shape: Round
Application: Industry Petroleum Package: Wooden Case
High Light:

ASME SA789 duplex steel pipe

,

1000mm duplex steel pipe

,

ASME SA789 duplex steel tube

ASME SA789 SAF 2507 UNS S32750 Pipe,Supler Duplex Stainless Steel Tube



2507 Super Duplex Stainless Steel Pipe UNS S32750 Super Duplex Tube





ASTM A789 ASME SA 789 SAF 2507 UNS S32750 , 2507 Super Duplex Pipe is super duplex stainless steel with 25% chromium, 4% molybdenum, and 7% nickel designed for demanding applications which require exceptional strength and corrosion resistance, such as

chemical process, petrochemical, and seawater equipment. The steel has excellent resistance to chloride stress corrosion cracking,

high thermal conductivity, and a low coefficient of thermal expansion.



Item Duplex Stainless Steel Tube/Stainless Steel Tubing/Stainless Steel Pipe
Standard ASTM A249/A213/A269/A554/A270/A312/A268/A778/A790/A789/A511
A335/A376/B161/B163/B167/B338/B668/B677/B622
DIN11850/17456/17458/SMS/ISO2037/ISO1127/EN10217-7 EN 10217-7
Grade Austenite:201/202/301/304/304L/304N/304LN/309S/310S/316/316L/316TI
Ferritic:409,409L,410,420,430,431,439,440,441,444
Duplex stainless steel:S31803,S32205,S31500,S32550,S32304,S32750
Nickel Alloy:Hastelloy,Inconel,Monel Alloy
Special Stainless Steel:904L,347/347H,317/317L,316Ti,254Mo
OD 3.175mm-1016mm
Thickness 0.5-20mm
Length 1000-12000mm or as required
Tolerance a) Outer Diameter:according to standards or as required.
b) Thickness: +/- 10% or as required.
c) Length: -0 +5mm
Finish Polished,MF,AP, BA(Bright&Annealed) or as required
Application Boiler, Heat Exchanger, Construction, Pharmacy, Power, Petrochemical
Machinery, Oil, Gas, and Auto industry...
Test Flattening test, Bend test, Hydrostatic, Eddy Current, Hardness,
Heat Treatment, Flaring test, I.C.test,
Certification ISO EN 1024 3.1/ 3.1B/ 3.2, PED, DNV, TUV.
Package Plywood Cases or as required.
Lead Time 7-30 days depend on quantity.


Tube Size



MINAL
DIAMETER NPS
OUTSIDE
DIAMETER(MM)
SCH-5S
WALL THICKNESS(MM)
SCH-10S
WALL THICKNESS(MM)
SSCH-40S
WALL THICKNESS(MM)
1/4 13.72   1.65 2.24
3/8 17.15   1.65 2.31
1/2 21.34 1.65 2.11 2.77
3/4 26.67 1.65 2.11 2.87
1 33.40 1.65 2.77 3.38
1 1/4 42.16 1.65 2.77 3.56
1 1/2 48.26 1.65 2.77 3.68
2 60.3 1.65 2.77 3.91
2 1/2 73.03 2.11 3.05 5.16
3 88.90 2.11 3.05 5.49
3 1/2 101.60 2.11 3.05 5.74
4 114.30 2.11 3.05 6.02
5 141.30 2.77 3.40 6.55
6 168.28 2.77 3.40 7.11
8 219.08 2.77 3.76 8.18
10 273.05 3.40 4.19 9.27
12 323.85 3.96 4.57 9.53
14 355.60 3.96 4.78 9.53
16 406.40 4.19 4.78 9.53
18 457.20 4.19 4.78 9.53
20 508.00 4.78 5.54 9.53
22 558.80 4.78 5.54
24 609.60 5.54 6.35 9.53
30 762.00 6.35 7.92

32

|

80

812.8

|

2032.0

(Thickness):6.35~30mm

Nominal diameter and wall thickness subject to the approval of vendor and purchaser



ASTM A789 S32750 SAF 2507 Pipe Chemical Composition

C % Si % Mn % P % S % Cr % Ni % Mo % N % Cu %
0.03 max 0.8 max 1.2 max 0.035 max 0.02 max 24.0-26.0 6.0-8.0 3.0-5.0 0.24-0.32 0.50 max

1000mm ASME SA789 Duplex Steel Pipe High Thermal Conductivity 0
