Welding duplex stainless steel grade 2205 Tubing 5/8 Inch x1.2mmx20ft OD 8mm-1000mm

Welding duplex stainless steel grade 2205 Tubing 5/8 Inch x1.2mmx20ft OD 8mm-1000mm
Welding duplex stainless steel grade 2205 Tubing 5/8 Inch x1.2mmx20ft OD 8mm-1000mm Welding duplex stainless steel grade 2205 Tubing 5/8 Inch x1.2mmx20ft OD 8mm-1000mm Welding duplex stainless steel grade 2205 Tubing 5/8 Inch x1.2mmx20ft OD 8mm-1000mm Welding duplex stainless steel grade 2205 Tubing 5/8 Inch x1.2mmx20ft OD 8mm-1000mm

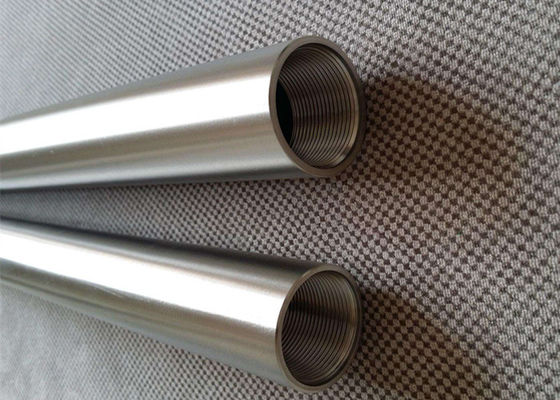

Large Image :  Welding duplex stainless steel grade 2205 Tubing 5/8 Inch x1.2mmx20ft OD 8mm-1000mm

Product Details:
Place of Origin: CHINA
Brand Name: SPEZILLA
Certification: ISO9001:2008, PED 97/23/EC
Model Number: Seamless Tube
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: PLY-WOODEN CASE / BUNDLE WITH PLASTIC CAP
Delivery Time: 25 DAYS
Payment Terms: T/T or L/C
Supply Ability: 1000 TONS / MONTH
Detailed Product Description
Materials: Duplex Steel UNS S32205/S31803 Product Name: Duplex Stainless Steel Tube
Standard: ASME SA789 O.D.: 5/8"-2"
W.T.: BWG18-BWG14 Length MAX: 12000MM Max.
Pipe Finish: TIG Welded Type: Welded
Shape: Round Surface: Bright Annealed
Application: Heat Exchanger Package: Wooden Case
High Light:

super duplex pipe

,

duplex ss pipe

Welding duplex stainless steel grade 2205 Tubing 5/8 Inch x1.2mmx20ft OD 8mm-1000mm





Specifications:



UNS S31803

ASME SA-182 (F51), SA-240, SA-798, SA-790, SA-815
ASTM A182 (F51),A240, A276, A479, A789, A790, A815, A928, A988
SAE J405



UNS S32205

ASME SA-182 (F60), SA-240, SA-798, SA-790, SA-815
ASTM A182 (F60), A240, A276, A479, A480, A798, A790, A815, A928, A988
SAE J405





Specifications of Duplex Stainless Steel Welded Tube



1. Standard: ASTM ASME
2. Grade: 630 / 631 / 2205 / 2507 / 17-4PH
ASTM A789, ASTM A790, ASTM A450, ASTM A530,
GB/T 14976, GB/T 14975, GB/T 13296, etc
3. OD: 8mm-1000mm
4. Wall thickness: 0.3mm-30mm
5. Length: max.18000mm or as demand

6. Surface finish: Polishing (180#,220#,240#,320#400#,600#), Hairline, acid pickled, etc.





2205 is a duplex (austenitic-ferritic) stainless steel containing about 40 - 50% ferrite in the annealed condition. 2205 has been a practical solution to chloride stress corrosion cracking problems experienced with 304/304L or 316/316L stainless. The high chromium, molybdenum and nitrogen contents provide corrosion resistance superior to 316/316L and 317L stainless in most environments. 2205 is not suggested for operating temperatures above 600°F.

The design strength of 2205 is significantly higher than 316/316L, often permitting lighter wall construction. 2205 has good notch impact toughness down to temperatures below - 40°F. 2205 is welded with E2209 or ER2209 fillers.





Features

  • High resistance to chloride stress corrosion cracking
  • Chloride pitting and crevice corrosion resistance superior to 317L stainless
  • Good general corrosion resistance
  • High strength
  • Good sulfide stress corrosion resistance
  • Useful up to 600°F

Applications

  • Chemical process vessels, piping, and heat exchangers
  • FGD scrubber systems
  • Pulp mill digesters, bleach washers, chip presteaming vessels
  • Food process equipment
  • Oil field piping, heat exchangers

Specifications:



Specifications (ASTM/ASME) Duplex Stainless Steel Pipe
Alloy UNS Designation Material
Specification
Tubing
Specification
Pipe
Specification
2205 S31803/S32205 A 240/SA-240 A 270 A 790/SA-790
      A 789/SA-789 A928/SA928



Chemical Compositions:



Chemical Composition (%) Duplex Stainless Steel Pipe
Alloy 2205 2205
UNS Designation S31803 S32205
Carbon (C) max. 0.030 0.030
Manganese (Mn) max. 2.00 2.00
Phosphorus (P) max. 0.030 0.030
Sulfur (S) max. 0.020 0.020
Silicon (Si) max. 1.00 1.00
Chromium (Cr) 21.0 - 23.0 22.0 - 23.0
Nickel (Ni) 4.5 - 6.5 4.5 - 6.5
Molybdenum (Mo) 2.5 - 3.5 3.0 - 3.5
Nitrogen (N) 0.08 - 0.20 0.14 - 0.20
Iron (Fe) Balance Balance

ASTM A789 UNS S31803 Tube Specification:



Chemical Element % Present
Carbon (C) 0.0 – 0.03
Chromium (Cr) 21.00 – 23.00
Manganese (Mn) 2.00 max
Silicon (Si) 1.00 max
Phosphorous (P) 0.0 – 0.03
Sulphur (S) 0.0 – 0.02
Nickel (Ni) 4.50 – 6.50
Nitrogen (N) 0.08 – 0.20
Molybdenum (Mo) 2.50 – 3.50
Iron (Fe) Balance


Properties

Physical Property Value
Density 7.805 g/cm³
Thermal Expansion 13.7 x10^-6 /K
Modulus of Elasticity 200 GPa
Thermal Conductivity 19.0 W/m.K
Electrical Resistivity 0.085 x10^-6 Ω .m


Spec:

Mechanical Property Value
Proof Stress 450 Min MPa
Tensile Strength 620 Min MPa
Elongation A50 mm 25 Min %
Hardness Brinell 290 Max HB



Welding duplex stainless steel grade 2205 Tubing 5/8 Inch x1.2mmx20ft OD 8mm-1000mm 0



Welding duplex stainless steel grade 2205 Tubing 5/8 Inch x1.2mmx20ft OD 8mm-1000mm 1
