High Precision 32mm super duplex stainless steel grades Tube Smooth Surface UNS S32205 / S31803

High Precision 32mm super duplex stainless steel grades Tube Smooth Surface UNS S32205 / S31803
High Precision 32mm super duplex stainless steel grades Tube Smooth Surface UNS S32205 / S31803 High Precision 32mm super duplex stainless steel grades Tube Smooth Surface UNS S32205 / S31803 High Precision 32mm super duplex stainless steel grades Tube Smooth Surface UNS S32205 / S31803 High Precision 32mm super duplex stainless steel grades Tube Smooth Surface UNS S32205 / S31803

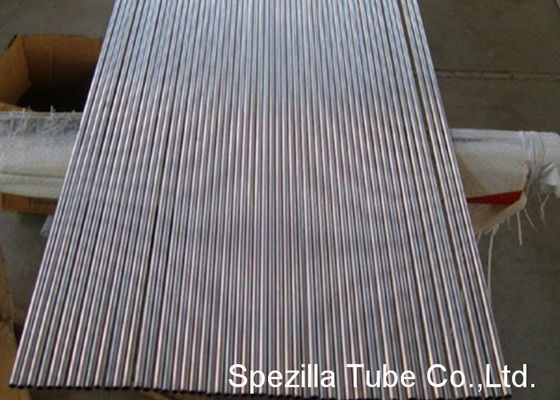

Large Image :  High Precision 32mm super duplex stainless steel grades Tube Smooth Surface UNS S32205 / S31803

Product Details:
Place of Origin: CHINA
Brand Name: SPEZILLA
Certification: ISO9001:2008, PED 97/23/EC
Model Number: Seamless Tube
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: PLY-WOODEN CASE / BUNDLE WITH PLASTIC CAP
Delivery Time: 25 DAYS
Payment Terms: T/T or L/C
Supply Ability: 1000 TONS / MONTH
Detailed Product Description
Product Name: Stainless Steel Tube Standard: ASME SA789
Materials: UNS S32205 O.D.: 1"
W.T.: BWG18 Length MAX: 12000MM Max.
Pipe Finish: TIG Welded Shape: Round
Application: Industry,Petroleum Type: Seamless/Welded
Surface: Pickling,Annealed
High Light:

super duplex pipe

,

duplex ss pipe

High Precision 32mm super duplex stainless steel grades Tube Smooth Surface UNS S32205 / S31803

DUPLEX 2205

ASTM A 182, A 240, A 276,
A 789, A 790, A 815
UNS S31803, S32205
NACE MR0175

Duplex 2205 is a nitrogen enhanced duplex stainless steel that was developed to combat common corrosion problems encountered with the 300 series stainless steels. “Duplex” describes a family of stainless steels that are neither fully austenitic, like 304 stainless, nor purely ferritic, like 430 stainless. The structure of 2205 duplex stainless steel consists of austenite pools surrounded by a continuous ferrite phase. In the annealed condition, 2205 contains approximately 40-50% ferrite. Often referred to as the work horse grade, 2205 is the most widely used grade in the duplex family of stainless steels.

The advantage of a duplex structure is that it combines the favorable qualities of a ferritic alloy (stress corrosion cracking resistance and high strength) with those of an austenitic alloy (ease of fabrication and corrosion resistance).



Usage of 2205 Duplex stainless steel should be limited to temperatures below 600° F. Extended elevated temperature exposure can embrittle 2205 stainless.

Corrosion Resistance



2205 duplex stainless steel is a cost effective solution for many applications where the 300 series stainless steels are susceptible to chloride stress corrosion cracking. Stress corrosion cracking occurs when stainless steels are subjected to tensile stress, while in contact with solutions containing chlorides. Increasing temperatures also increase the susceptibility of stainless steels to stress corrosion cracking.

The combination of chromium, molybdenum and nitrogen convey the good resistance of 2205 to chloride pitting and crevice corrosion. This resistance is extremely important for services such as marine environments, brackish water, bleaching operations, closed loop water systems and some food processing applications. The high chromium, molybdenum and nitrogen contents of 2205 provide corrosion resistance superior to common stainless steels, such as, 316L and 317L in most environments.



Chemical Composition

Cr

Ni

Mo

C

N

22.0-23.0 4.50-6.50 3.00-3.50 .030 Max 0.14-0.20

Mn

Si

P

S

Fe

2.00 Max 1.00 Max .030 Max .020 Max Balance







Specifications of Duplex Stainless Steel Welded Tube



1. Standard: ASTM ASME
2. Grade: 630 / 631 / 2205 / 2507 / 17-4PH
ASTM A789, ASTM A790, ASTM A450, ASTM A530,
GB/T 14976, GB/T 14975, GB/T 13296, etc
3. OD: 8mm-1000mm
4. Wall thickness: 0.3mm-30mm
5. Length: max.18000mm or as demand

6. Surface finish: Polishing (180#,220#,240#,320#400#,600#), Hairline, acid pickled, etc.





Specifications:



Specifications (ASTM/ASME) Duplex Stainless Steel Pipe
Alloy UNS Designation Material
Specification
Tubing
Specification
Pipe
Specification
2205 S31803/S32205 A 240/SA-240 A 270 A 790/SA-790
      A 789/SA-789 A928/SA928





High Precision 32mm super duplex stainless steel grades Tube Smooth Surface UNS S32205 / S31803 0




Chemical Compositions:



Chemical Composition (%) Duplex Stainless Steel Pipe
Alloy 2205 2205
UNS Designation S31803 S32205
Carbon (C) max. 0.030 0.030
Manganese (Mn) max. 2.00 2.00
Phosphorus (P) max. 0.030 0.030
Sulfur (S) max. 0.020 0.020
Silicon (Si) max. 1.00 1.00
Chromium (Cr) 21.0 - 23.0 22.0 - 23.0
Nickel (Ni) 4.5 - 6.5 4.5 - 6.5
Molybdenum (Mo) 2.5 - 3.5 3.0 - 3.5
Nitrogen (N) 0.08 - 0.20 0.14 - 0.20
Iron (Fe) Balance Balance



High Precision 32mm super duplex stainless steel grades Tube Smooth Surface UNS S32205 / S31803 1
