BPE 2 inch round Steel Instrument Tubing For Automotive ASTM A270 Standard

BPE 2 inch round Steel Instrument Tubing For Automotive ASTM A270 Standard
BPE 2 inch round Steel Instrument Tubing For Automotive ASTM A270 Standard BPE 2 inch round Steel Instrument Tubing For Automotive ASTM A270 Standard BPE 2 inch round Steel Instrument Tubing For Automotive ASTM A270 Standard BPE 2 inch round Steel Instrument Tubing For Automotive ASTM A270 Standard

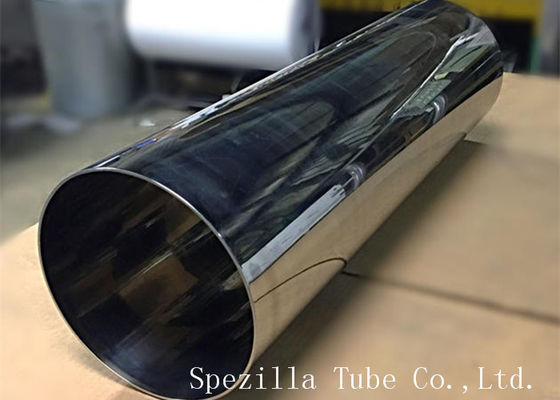

Large Image :  BPE 2 inch round Steel Instrument Tubing For Automotive ASTM A270 Standard

Product Details:
Place of Origin: CHINA
Brand Name: SPEZILLA
Certification: ISO9001:2008, PED 97/23/EC
Model Number: ASTM A270
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: PLY-WOODEN CASE / BUNDLE WITH PLASTIC CAP
Delivery Time: 10 DAYS
Payment Terms: T/T or L/C
Supply Ability: 1000 TONS / MONTH
Detailed Product Description
Product Name: Stainless Steel Tube Standard: ASTM A270/ASME SA270
Materials: AISI TP316L,304L O.D.: 3/4"-6"
W.T.: 1.65mm,2mm,1.5mm,1.2mm Length: 20ft
Pipe Finish: Polished Shape: Round
Package: Wooden Case Application: Sanitary
High Light:

sanitary stainless tubing

,

sanitary stainless steel tubing

BPE 2 inch round Steel Instrument Tubing For Automotive ASTM A270 Standard



SPEZILLA is leading manufacturer & suppliers of stainless steel seamless and welded tubing manufactured as per ASTM A270 standards. It is certified to the requirements of ASTM A270 standards, and most user specifications.



ASTM A270 Sanitary stainless steel tubing as well sanitary stainless steel tube, meets A270 standards available in sanitary stainless steel AISI 316L, 304L or 304 from 1” to 4” sizes, inside roughness ( 32 μ'/0,8 μm ) Ra 180 grit; outside surface finishing ( 150 grit / Brushed ) acording A270. Upon Request Inside surface finishing ( 20 μ'/0,5 μm ) Ra. for ASME SA270 standards. To maintain clean standards tubes are packed individually in plastic sleeves and covered with plastic caps in both ends.



Applications:



1. Heat Exchangers, Condensers & Pressure Vessels
2. Chemical & Petrochemical
3. Gas Industry
4. Power Generation
5. Pressure Vessels
6. Marine Equipments
7. Food & Beverage Processing
8. Automotive
9. Pulp & Paper



Available Sizes:


OD from 1/2'' to 8'' (12.7MM to 203.20MM)


Wall thickness: 0.065'' to 0.083'' (1.65MM to 2.11MM)



Length: 20ft ( 6100MM)





Surface Polish:



Surface finish is 20 u-in Ra (0.5um) ID maximum, 30 u-in Ra (0.8um) OD maximum surface roughness measured per ASME/ANSI B46.1 with the profilo-meter reading at 90 degree to the lay. Other finishes available upon request.



Grades of Material :



304, 304L,316, 316L Stainless Steel



Our customers have come to rely on the quality of Spezilla’s sanitary tube products as well as our uncompromised commitment to total customer satisfaction. We stock all sanitary tube sizes from ½” to 6.0” OD in 20 ft. standard lengths. Custom lengths and sizes are available upon request. We stock:



  • Type T304L adaptable for brazing or field welding
  • Type T316L corrosion and heat resistant, adaptable for welding, brazing

ASME BPE Stainless Steel Sanitary Tubing Surface Finish
Mechanically Polished Ra Max.
Surface Designation u-inch um
SF1 20 0.51
SF2 25 0.64
SF3 30 0.76
Mechanically Polished & Electrpolished
SF4 15 0.38
SF5 20 0.51
SF6 25 0.64





Outside Diameter (O.D.) Dimensional Tolerances
Over Under
1.000" and Smaller 0.005" 0.005"
Over 1" to 2" 0.008" 0.008"
Over 2" to 3" 0.010" 0.010"
Over 4" to < 5½", excl 0.015" 0.015"
5½" to 8", excl 0.030" 0.030"
8" to 12" 0.050" 0.050"























Grades TP 304 TP 304L TP 316 TP 316L
C max 0.07 0.03 0.08 0.03
Mn max 2.00 2.00 2.00 2.00
P max 0.045 0.045 0.045 0.045
S max 0.03 0.03 0.03 0.03
Si max 0.75 0.75 0.75 0.75
Cr 17.5 -- 19.5 17.5 -- 19.5 16 -- 18 16 -- 18
Ni 8 -- 10.5 8 -- 12 10 -- 14 10 -- 14
N max 0.10 0.10 0.10 0.10
Mo -- -- 2.00-3.00 2.00-3.00





BPE 2 inch round Steel Instrument Tubing For Automotive ASTM A270 Standard 0
