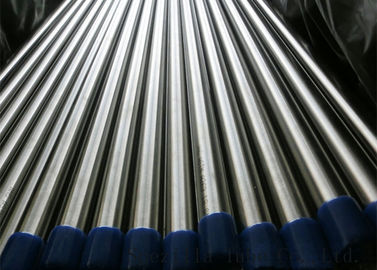

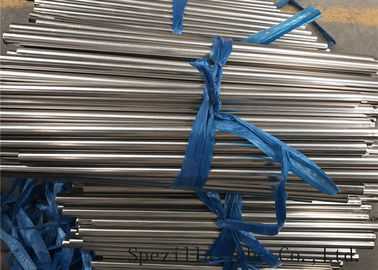

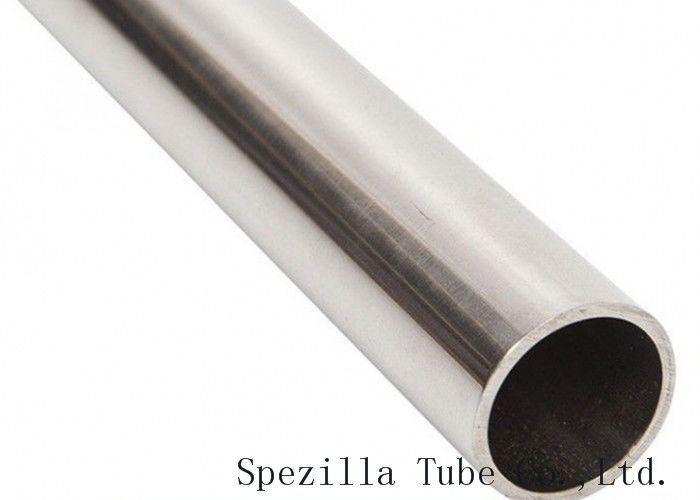

EN10357 22mm stainless steel Instrument Tubing Food Grade For Pipeline Systems

EN10357 22mm stainless steel Instrument Tubing Food Grade For Pipeline Systems
EN10357 22mm stainless steel Instrument Tubing Food Grade For Pipeline Systems EN10357 22mm stainless steel Instrument Tubing Food Grade For Pipeline Systems EN10357 22mm stainless steel Instrument Tubing Food Grade For Pipeline Systems EN10357 22mm stainless steel Instrument Tubing Food Grade For Pipeline Systems

Large Image :  EN10357 22mm stainless steel Instrument Tubing Food Grade For Pipeline Systems

Product Details:
Place of Origin: CHINA
Brand Name: SPEZILLA
Certification: ISO9001:2008, PED 97/23/EC
Model Number: EN 10357
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: PLY-WOODEN CASE / BUNDLE WITH PLASTIC CAP
Delivery Time: 10 DAYS
Payment Terms: T/T or L/C
Supply Ability: 1000 TONS / MONTH
Detailed Product Description
Product Name: Stainless Steel Tube Materials: 1.4404 AISI316L
O.D.: 1/2" W.T.: 1.65mm
Length: 20ft Pipe Finish: 320 Grit Inter & Outer Polished
Standard: EN10357 Shape: Round
Package: Wooden Case Application: Industry
High Light:

sanitary stainless tubing

,

sanitary stainless steel tubing

EN10357 22mm stainless steel Instrument Tubing Food Grade For Pipeline Systems





DIN EN 10357 was developed for seam welded tubes made of stainless steel for pipeline systems in the food, pharmaceutical and chemical industries. DIN EN 10357 (2014-3) replaces DIN 11850 at the beginning of 2014. Fundamental changes to DIN 11850: - Tube series 1 and 2 have been replaced and supplemented by series A to D. - Series A replaces DIN series 2, series B replaces DIN series 1, series C corresponds to ISO and series D corresponds to OD and SMS. With regard to EN 10357 the following normative references must be provided: DIN EN 2768, DIN 11851, DIN 11852, DIN11853-1 to -3, DIN 11864-1 to -3, DIN 32676, DIN EN 10088-1, DIN EN 10088-2, DIN EN 10204, DIN EN ISO 1127, DIN EN 10217-7





Stainless steel pipes DIN EN 10357



DIN EN 10357 - 2014 has been drawn up for welded pipes made of stainless steels for pipe line systems within the food industry, pharmaceutical and chemical industries.



Outside Diameter (O.D.) Dimensional Tolerances
Over Under
1.000" and Smaller 0.005" 0.005"
Over 1" to 2" 0.008" 0.008"
Over 2" to 3" 0.010" 0.010"
Over 4" to < 5½", excl 0.015" 0.015"
5½" to 8", excl 0.030" 0.030"
8" to 12" 0.050" 0.050"







Technical Data



Material 304 (1.4301) or 304L (1.4307)
316L (1.4404)
others on request
Dimensions DIN DN10 - DN200
Series A and series B
Dimensions ISO DN10 - DN200
Series C
Dimensions SMS and OD

1" - 4"
Series D





Surface Characteristics

  Inner surface Outer surface
CC

pickled W2(b) and passivated

Ra < 0.8 µm

area of weld seam Ra < 1.6 µm

pickled W2(b) and passivated
CD

pickled W2(b) and passivated

Ra < 0.8 µm

area of weld seam Ra < 1.6 µm

ground

Ra < 1.0 µm

BC

annealed and pickled, or bright annealed, W2R(b), l1g or l2g

Ra < 0.8 µm

area of weld seam Ra < 1.6 µm

pickled and passivated or bright annealed

W2A(b), W2R(b), l1g or l2g

BD

annealed and pickled, or bright annealed, W2R(b), l1g or l2g

Ra < 0.8 µm

area of weld seam Ra < 1.6 µm

ground

Ra < 1.0 µm





Size Range
Outside Diameter: 1/2" – 8"
Wall Thickness: .065" and .083"



Governing Production Specifications - ASTM A270/A269/A249






Grades TP 304 TP 304L TP 316 TP 316L
C max 0.07 0.03 0.08 0.03
Mn max 2.00 2.00 2.00 2.00
P max 0.045 0.045 0.045 0.045
S max 0.03 0.03 0.03 0.03
Si max 0.75 0.75 0.75 0.75
Cr 17.5 -- 19.5 17.5 -- 19.5 16 -- 18 16 -- 18
Ni 8 -- 10.5 8 -- 12 10 -- 14 10 -- 14
N max 0.10 0.10 0.10 0.10
Mo -- -- 2.00-3.00 2.00-3.00





Size

(TUBE O.D.)

GAUGE WALL LBS/FT

STOCK

304

STOCK

316L

1/2 16 .065 .3020 Y Y
3/4 16 .065 .4755 Y Y
1 18 .049 .4980 Y Y
1 16 .065 .6490 Y Y
1-1/2 18 .049 .7593 Y Y
1-1/2 16 .065 .9962 Y Y
2 18 .049 1.0210 Y Y
2 16 .065 1.3430 Y Y
2 1/2 16 .065 1.6900 Y Y
3 16 .065 2.0370 Y Y
4 14 .083 3.4720 Y Y
6 12 .109 6.9000 Y Y
8 12 .109 9.3000 Y Y
