20ft 304 ss tubing Sanitary Stainless Tubing , Stainless Steel Sanitary Tubing OD 3/4" - 6"

China 20ft 304 ss tubing Sanitary Stainless Tubing , Stainless Steel Sanitary Tubing OD 3/4" - 6" supplier
20ft 304 ss tubing Sanitary Stainless Tubing , Stainless Steel Sanitary Tubing OD 3/4" - 6" supplier 20ft 304 ss tubing Sanitary Stainless Tubing , Stainless Steel Sanitary Tubing OD 3/4" - 6" supplier 20ft 304 ss tubing Sanitary Stainless Tubing , Stainless Steel Sanitary Tubing OD 3/4" - 6" supplier 20ft 304 ss tubing Sanitary Stainless Tubing , Stainless Steel Sanitary Tubing OD 3/4" - 6" supplier

Large Image :  20ft 304 ss tubing Sanitary Stainless Tubing , Stainless Steel Sanitary Tubing OD 3/4" - 6"

Product Details:

Place of Origin: CHINA
Brand Name: SPEZILLA
Certification: ISO9001:2008, PED 97/23/EC
Model Number: ASTM A270 ASME SA270

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: PLY-WOODEN CASE / BUNDLE WITH PLASTIC CAP
Delivery Time: 10 DAYS
Payment Terms: T/T or L/C
Supply Ability: 1000 TONS / MONTH
Contact Now
Detailed Product Description
Product Name: Stainless Steel Tubing Standard: ASTM A270/ASME SA270
Materials: AISI TP316L,304L O.D.: 3/4"-6"
W.T.: 1.65mm,2mm,1.5mm,1.2mm Length: 20ft
Pipe Finish: Polished Shape: Round
Package: Wooden Case Application: Food/Sanitary

20ft 304 ss tubing Sanitary Stainless Tubing , Stainless Steel Sanitary Tubing OD 3/4" - 6"​





Spezilla sanitary tube is ideal for the dairy food and beverage industries where the highest degree purity and cleanliness is essential. It is certified to the requirements of ASTM A270 standards, and most user specifications.



Our customers have come to rely on the quality of Spezilla’s sanitary tube products as well as our uncompromised commitment to total customer satisfaction. We stock all sanitary tube sizes from ½” to 6.0” OD in 20 ft. standard lengths. Custom lengths and sizes are available upon request. We stock:

  • Type T304L adaptable for brazing or field welding
  • Type T316L corrosion and heat resistant, adaptable for welding, brazing



Quality Control:



To assure the highest quality standards, our stainless steel sanitary pipe is subjected to extensive testing and inspection programs that meet or exceed ASTM A270/A1016/A1016M test requirements. Testing includes reverse bend, reverse flattening, and flange tests. Eddy current testing is performed on 100% of the stainless steel sanitary pipe produced.





Available Sizes:


OD from 1/2'' to 8'' (12.7MM to 203.20MM)


Wall thickness: 0.065'' to 0.083'' (1.65MM to 2.11MM)



Length: 20ft ( 6100MM)





Surface Polish:



Surface finish is 20 u-in Ra (0.5um) ID maximum, 30 u-in Ra (0.8um) OD maximum surface roughness measured per ASME/ANSI B46.1 with the profilo-meter reading at 90 degree to the lay. Other finishes available upon request.



Applications:



1. Heat Exchangers, Condensers & Pressure Vessels
2. Chemical & Petrochemical
3. Gas Industry
4. Power Generation
5. Pressure Vessels
6. Marine Equipments
7. Food & Beverage Processing
8. Automotive
9. Pulp & Paper

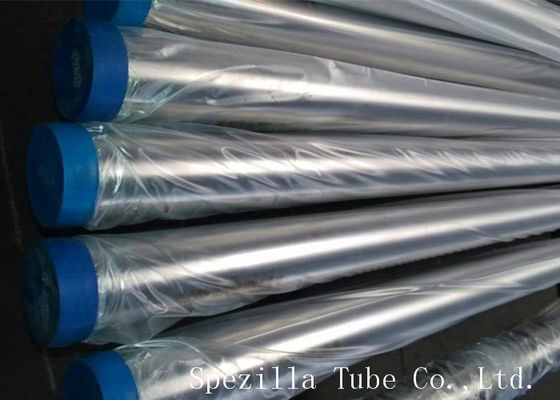

ASTM A270 Sanitary stainless steel tubing as well sanitary stainless steel tube, meets A270 standards available in sanitary stainless steel AISI 316L, 304L or 304 from 1” to 4” sizes, inside roughness ( 32 μ'/0,8 μm ) Ra 180 grit; outside surface finishing ( 150 grit / Brushed ) acording A270. Upon Request Inside surface finishing ( 20 μ'/0,5 μm ) Ra. for ASME SA270 standards. To maintain clean standards tubes are packed individually in plastic sleeves and covered with plastic caps in both ends.





Size
(Tube OD)
Part Number Dimensions
304L 316L Wall ID Gauge
1/2" A270 A270 0.065 0.370 16
3/4" A270 A270 0.065 0.620 16
1 " A270 A270 0.065 0.870 16
1-1/2" A270 A270 0.065 1.370 16
2 " A270 A270 0.065 1.870 16
2 " A270 A270 0.120 1.760 11
2-1/2" A270 A270 0.065 2.370 16
3 " A270 A270 0.065 2.870 16
3 " A270 A270 0.120 2.760 11
4 " A270 A270 0.065 3.870 16
4 " A270 A2700 0.083 3.834 14
5 " A270 A270 0.083 4.834 14
6 " A270 A270 0.083 5.834 14
6 " A270 A270 0.109 5.782 12
8 " A270 A270 0.109 7.782 12
10 " A778 A778 0.109 9.782 12
12 " A778 A778 0.109 11.782 12




ASME BPE Stainless Steel Sanitary Tubing Surface Finish
Mechanically Polished Ra Max.
Surface Designation u-inch um
SF1 20 0.51
SF2 25 0.64
SF3 30 0.76
Mechanically Polished & Electrpolished
SF4 15 0.38
SF5 20 0.51
SF6 25 0.64







20ft 304 ss tubing Sanitary Stainless Tubing , Stainless Steel Sanitary Tubing OD 3/4" - 6"
