Spezilla Tube Co., Ltd.

Excellence in Stainless Steel Tubing

Home ProductsHigh Purity Stainless Steel Tubing

304L / 316 SS Tubing , Stainless Steel Sanitary Pipe BPE Electro Polished

Very competitive price and the tubes are well polished, we are very satisfied with Spezilla from our cooperation since year 2010.

—— Nathalie Gulli - Mexico

Spezilla supports our group very well, and now we are approved supplier of goverment, they are reliable and flexible! Spezilla always answers!

—— Jaime Arias - Argentina

Good quality, fast delivery, Spezilla has been supplying heat exchanger tubes for our projects since 2008, we really appreciate your support!

—— Massimiliano Rossi - Italy

I'm Online Chat Now

304L / 316 SS Tubing , Stainless Steel Sanitary Pipe BPE Electro Polished

304L / 316 SS Tubing , Stainless Steel Sanitary Pipe BPE Electro Polished
304L / 316 SS Tubing , Stainless Steel Sanitary Pipe BPE Electro Polished 304L / 316 SS Tubing , Stainless Steel Sanitary Pipe BPE Electro Polished 304L / 316 SS Tubing , Stainless Steel Sanitary Pipe BPE Electro Polished 304L / 316 SS Tubing , Stainless Steel Sanitary Pipe BPE Electro Polished

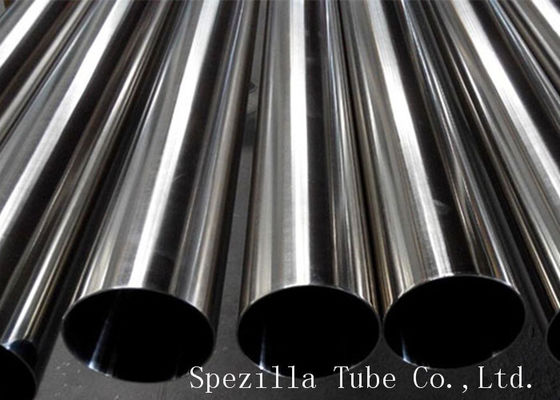

Large Image :  304L / 316 SS Tubing , Stainless Steel Sanitary Pipe BPE Electro Polished

Product Details:
Place of Origin: CHINA
Brand Name: SPEZILLA
Certification: ISO9001:2008, PED 97/23/EC
Model Number: ASTM A270
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: PLY-WOODEN CASE / BUNDLE WITH PLASTIC CAP
Delivery Time: 10 DAYS
Payment Terms: T/T or L/C
Supply Ability: 1000 TONS / MONTH
Detailed Product Description
Materials: AISI TP316L,304L O.D.: 3/4"-6"
W.T.: 1.65mm,2mm,1.5mm,1.2mm Length: 20ft
Pipe Finish: Polished Standard: ASTM A270
High Light:

electropolished stainless steel pipe

,

316 ss tubing

3/4" - 6" Sanitary Pipes And Fittings BPE Tubing Electro Polished Anti Corrosion





SPEZILLA is a global supplier of Beverage & Sanitary stainless steel tubing for the Brewery, Food, Dairy and Pharmaceutical Industries. SPEZILLA offers tubing from ½” to 8” OD in 304L & 316L polished on the ID to 20u-in Ra/OD to 30u-in Ra. All sizes are available for same day shipment.



For the dairy, food, beverage, pharmacutical, BPE and other markets.

SPEZILLA Sanitary Tubing exceeds the high standards in the industry, The ID is mechanically polished(M.P.) to 20Ra(0.5µm) finished or special cold drawing plus cold pilger and bright anealed special processed to 15Ra(0.4µm) finished to meet ASTM A270 and BPE standards.

Each tube is eddy current tested to conform to ASTM A249 follow by specialized cleaning and packaging to maintain contaminant-free tubing.



Features:



1. Made of AISI 304L and AISI 316L stainless steel. Made from annealed sheet with BA or 2B finish, argon welded with the TIG system, gauged, with cold-rolled internal weld bead and debeaded externally with emery cloth. Solution heat-treated in controlled atmosphere.



2. Subjected to non-destructive inspection (inspection line with parasite currents), check on mechanical features, dimensional inspection and surface examination.



3. Produced in conformity with dimensional tolerance levels stipulated in ASTM A269 and A270 manufacturing standards.



4. Finish: pickled, external glazing, external and internal glazing and electrolytic polishing.



5. Delivered in merchant bars 6 meters long. On request available in different lengths of up to 12 meters.



6. Delivered in strapped bundles. On request can be delivered in bundles protected externally with polyethylene and wooden boxes.



Specifications:

  • Alloys: Stainless Steel 304, 304L & 316L

  • Size Range:

    • O.D.1/4" to 6"(6.35-152.4mm)

  • Specification:

    • ASTM A249, A269, A270 and BPE standards

  • Length:20'(6.1 meter)


ASME BPE Stainless Steel Sanitary Tubing Surface Finish
Mechanically Polished Ra Max.
Surface Designation u-inch um
SF1 20 0.51
SF2 25 0.64
SF3 30 0.76
Mechanically Polished & Electrpolished
SF4 15 0.38
SF5 20 0.51
SF6 25 0.64






Outside Diameter (O.D.) Dimensional Tolerances
Over Under
1.000" and Smaller 0.005" 0.005"
Over 1" to 2" 0.008" 0.008"
Over 2" to 3" 0.010" 0.010"
Over 4" to < 5½", excl 0.015" 0.015"
5½" to 8", excl 0.030" 0.030"
8" to 12" 0.050" 0.050"

Size Range
Outside Diameter: 1/2" – 8"
Wall Thickness: .065" and .083"



Governing Production Specifications - ASTM A270/A269/A249






Grades TP 304 TP 304L TP 316 TP 316L
C max 0.07 0.03 0.08 0.03
Mn max 2.00 2.00 2.00 2.00
P max 0.045 0.045 0.045 0.045
S max 0.03 0.03 0.03 0.03
Si max 0.75 0.75 0.75 0.75
Cr 17.5 -- 19.5 17.5 -- 19.5 16 -- 18 16 -- 18
Ni 8 -- 10.5 8 -- 12 10 -- 14 10 -- 14
N max 0.10 0.10 0.10 0.10
Mo -- -- 2.00-3.00 2.00-3.00





304L / 316 SS Tubing , Stainless Steel Sanitary Pipe BPE Electro Polished 0
