| Specification: | ASME SA213 / ASTM A269 | Material Grade: | TP316/316L |
|---|---|---|---|
| Size: | 1/2'' | Wall Thickness: | 0.065'' |
| Length: | 20FT | Tube Finish: | OD Polished |
| High Light: | polished stainless tube,316 ss tubing |
||

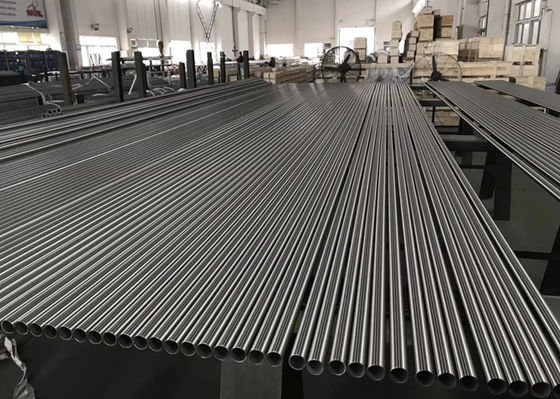

TP316/316L 1/2'' X 0.065'' X 20FT Polished High Purity Seamless Stainless Steel Tubing
Features:
Spezilla's high purity seamless stainless steel tubing is precision cold-drawn and manufactured according to ASTM A213/A269 using the finest pre-materials with the specific purpose of servicing semiconductor and related industries and other clean processes.
The tubing sizes are imperial and range primarily between 1/4" (6.35mm) ~ 1.0" (25.4mm) with the maximum wall thickness of 1.65mm. The wall thickness of 1.0mm in place of 0.89mm can be offered for the outside diameter size of 6.35mm and 9.53mm as an option.
Reference Documents
ASTM A213 (EAW)
Seamless ferritic and austenitic alloy-steel boiler, superheated, and heat exchanger tubes.
ASTM A262
Recommended practices for detecting susceptibility to intergranular attack in austenitic stainless steel.
ASTM A249
Welded austenitic steel boiler, superheated, heat exchanger, and condenser tubes.
ASTM A269
Seamless and welded austenitic stainless steel tubing for general purpose.
ASTM A270
Specification for seamless and welded austenitic steel for sanitary applications.
ASTM A450
General requirements for carbon, ferritic alloy, and austenitic alloy steel tubes.
ASTM E426
Eddy Current Testing
ASTM A479
General requirements for carbon, ferritic alloy, and austenitic alloy steel bar.
ANSI/ASME B46.1
Specification for surface texture-surface roughness, waviness and lay.
Descriptions:
| Item Code: | SPS-SA213-316L-0050-065-HP |
| Tube OD.: | 1/2'' |
| Wall: | 0.065'' |
| Length: | 20' |
| Material: | TP316/316L |
| Standard: | ASTM A213 / ASTM A269 / ASTM A270 / ASME SA213 |
| Finish: | AP / OD POLISHED |
| Type: | Seamless Cold Drawn |
| Certification: | ISO9001 |
| Mill Test Certificate: | EN10204 3.1 |
| Packing: | Sleeved, Ends Capped, Wooden Boxed |
Chemical Compositions:
| Elements | 316L (wt%) |
| C / Max. | 0.035 |
| Mn / Max | 2.00 |
| P / Max | 0.045 |
| S / Max | 0.005 - 0.017 |
| Si / Max | 1.00 |
| Ni | 10.00 - 14.00 |
| Cr | 16.00 - 18.00 |
| Mo | N/A |
| Fe | Bal. |
| Cu | N/A |
| N | N/A |
Mechanical Properties:
| Grade |
Tensile Strength |
Yield Strength |
Elongation |
Hardness |
|
|
|
|
|
|
Quality Assurance:
Spezilla's Electropolished stainless steel tubing are produced acc. to the following process and inspection to assure our quality:
1. Chemical Composition Analysis Test With 100% PMI.
2. Solution Annealing / Bright Annealed.
3. 100% Hydrostatic Test and 100% Eddy Current Test
4. Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test.
5. Impact Test subject to Standard request.
6. Grain Size Test and Intergranular Corrosion Test.
7. Visual Test and Endoscope Test for Surface Quality Test
8. Ultrasonic Test
Applications:
Spezilla's High Purity Seamless Stainless Steel Tubing is widely used in semiconductor, pharmaceutical, medical, food processing, biotechnology, and telecommunication industries because of the high degree of purity and low surface roughness.
1. Semiiconductor
2. Pharmaceutical
3. Medical
4. Food & Beverage Processing
5. Biotechnology
