TP304 Stainless Steel Dairy Metric SS Tubing 3A Standard

TP304 Stainless Steel Dairy Metric SS Tubing 3A Standard
TP304 Stainless Steel Dairy Metric SS Tubing 3A Standard

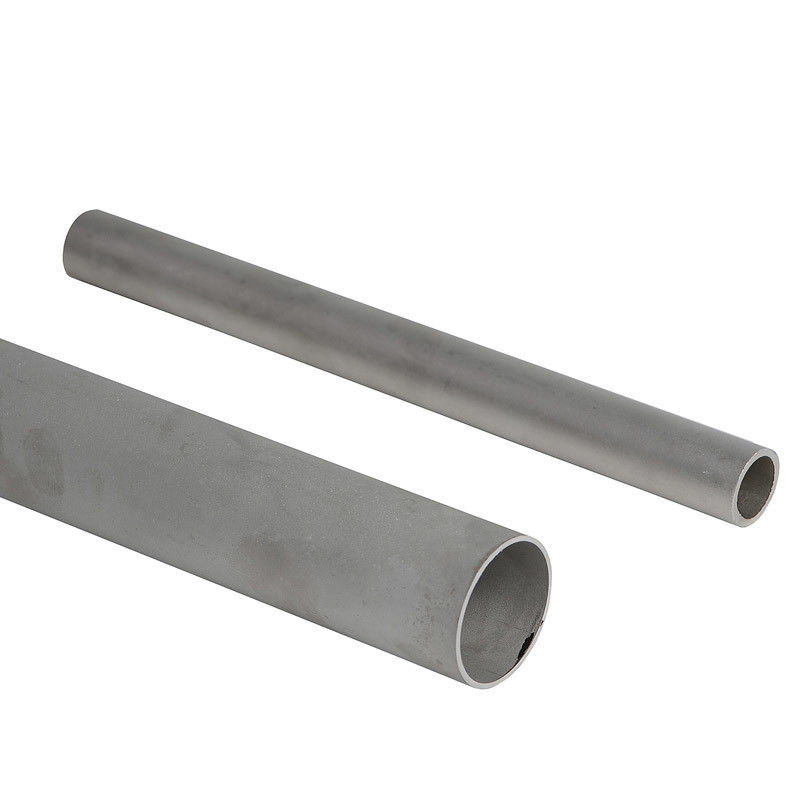

Large Image :  TP304 Stainless Steel Dairy Metric SS Tubing 3A Standard

Product Details:
Place of Origin: KOREA / CHINA
Brand Name: SPEZILLA
Certification: 3A ISO9001
Model Number: 12'' X 0.120'' X 20'
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: negotiable
Packaging Details: WOODEN BOXED
Delivery Time: 5-8 WORKING DAYS
Detailed Product Description
Application: Food & Beverage Grade: TP304
OD Size: 12'' WT Size: 0.120''
Length: 20FT Standard: 3A
High Light:

TP304 stainless steel dairy pipe

,

TP304 Metric SS Tubing

,

3A Standard stainless steel dairy pipe

12'' OD Grade TP304 Polished Stainless Steel Sanitary Tubing, ID 0.5um & OD 0.8um, 3A Certified

Features:


Spezilla manufacture the finest quality of Stainless Steel tubes for the critical applications for Pharma & Bio-Pharmaceuticals, Food & Beverages, Dairy and Healthcare & Cosmetics in a fully automated European tube production line under stringent quality control standards. The raw material, sourced from Europe are of international standards. Our manufacturing facility is certified with ISO 9000-2008 and 3-A sanitary certification from USA. Every batch of tubes passes through a spectrum of 14 tests, that are both destructive and non-destructive types. Though a robust quality culture ensures we uphold our customers trust on our products, we continue to build and strengthen a culture of compliance & assurance, where every employee is trained to be vigilant and dedicated to the very highest standards of quality expected.



Descriptions:


Item Code:SPW-A270-304-0120-120-MP-3A
Tube OD.:12''
Wall:3.05MM (0.120'')
Length:20'
OD Tolerance:+/-0.05'' / +/-1.25MM
WT Tolerance:+/-10%
Length Tolerance:+3/16'' / +5.00MM
Material:TP304
Standard:3A / ASTM A270 / A270M
Finish:20Ra ID / 32Ra OD
Polish:Mechanical Polished
Type:Welded
Certification:3A - Food / Dairy Grade
Mill Test Certificate:EN10204 3.1
Packing:Sleeved, Ends Capped, Wooden Boxed


Chemical Compositions:


Elements304 (wt%)
C / Max.0.08
Mn / Max2.00
P / Max0.045
S / Max0.030
Si / Max1.00
Ni 8.00 - 11.00
Cr18.00 - 20.00
MoN/A
FeBal.
CuN/A
NN/A



Mechanical Properties:



Grade

Tensile Strength
(Mpa)

Yield Strength
 (Mpa)

Elongation
(%)

Hardness
(HRB)


 304



≥515


≥205


≥35


≤90





Quality Assurance:



Our quality control laboratory is equipped with modern machines that enable complete in-house testing of our tubes, using both destructive and non-destructive testing methods. Every batch of tubes undergoes stringent testing and qualifies to be certified only after it passes 14 quality tests that include both destructive and non-destructive testing. Stringent parameters are laid down for each test and the results are documented and archived for traceability. All tests are carried out as per ASTM / ASME standards.



Applications:


Our stainless steel sanitary tubings are applicable to a wide range of manufacturing industries:


PHARMA & BIOPHARMA


FOOD & BEVERAGES


DAIRY


HEALTHCARE & COSMETICS
