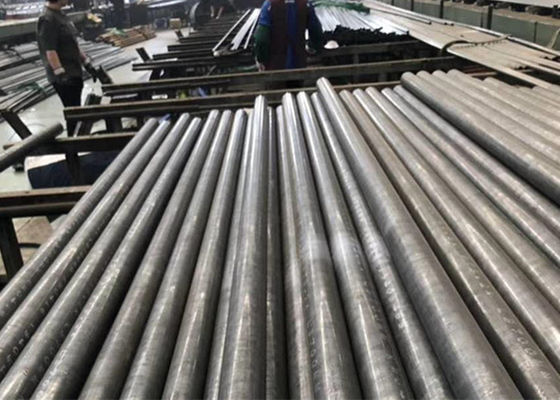

6MM - 38.10MM Welded Titanium Tubing Lightweight High Hardness GR.2 Gr.1

China 6MM - 38.10MM Welded Titanium Tubing Lightweight High Hardness GR.2 Gr.1 supplier
6MM - 38.10MM Welded Titanium Tubing Lightweight High Hardness GR.2 Gr.1 supplier 6MM - 38.10MM Welded Titanium Tubing Lightweight High Hardness GR.2 Gr.1 supplier 6MM - 38.10MM Welded Titanium Tubing Lightweight High Hardness GR.2 Gr.1 supplier 6MM - 38.10MM Welded Titanium Tubing Lightweight High Hardness GR.2 Gr.1 supplier

Large Image :  6MM - 38.10MM Welded Titanium Tubing Lightweight High Hardness GR.2 Gr.1

Product Details:

Place of Origin: CHINA
Brand Name: SPEZILLA
Certification: ISO9001, PED AD2000
Model Number: WLD-T

Payment & Shipping Terms:

Minimum Order Quantity: 500KGS
Price: NEGOCIATION
Packaging Details: WOODEN BOXED
Delivery Time: Ex-Mill 15 - 30DAYS
Payment Terms: T/T, L/C
Supply Ability: 100TONS/MONTH
Contact Now
Detailed Product Description
Product Name: Titanium Tube Specification: ASME SB338 ASTM B338
Finishing Options: WLD Material Grade: GR.2 Gr.1
Size Range: 6MM- 38.10MM Length: 20ft
Finish: Bright Annealed Test Certificate: EN10204 3.1
Packaging: Wooden Boxed Quality: 100% Eddy Current

ASTM B338 ASME SB338 Gr1 Gr2 Welded Titanim Tubing for sheel and tube exchanger



Spezilla is committed to manufacturing the highest quality precision welded titanium tubing. Depending on what you need we can produce tubes that are high strength, lightweight and corrosion resistant – or with a combination of those qualities. Our interactive grade comparison tool will help you find the right material for your project.



Our extensive selection includes seamless aircraft quality titanium tubing, welded titanium tubing, drawn titanium tubing. Browse our selection of aircraft quality titanium tubing here or get in touch with a Future Metals professional for a personalized quote on aircraft quality titanium Tube.



Available Tube Product Forms:

Straight Length.



Coiled.

Typical Applications:


Shell and tube heat exchanger, condenser, evaporator, pipeline, etc



Seawater desalination equipment



Bike rack



Marine pressure tube


Quality Assurance:

Spezilla's Titanium tubes are produced acc. to the following process and inspection to assure our quality:

1. Chemical Composition Analysis Test With 100% PMI.

2. Solution Annealing / Bright Annealed.

3. 100% Hydrostatic Test and 100% Eddy Current Test

4. Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test.

5. Impact Test subject to Standard request.

6. Grain Size Test and Intergranular Corrosion Test.

7. Visual Test and Endoscope Test for Surface Quality Test

Typical Manufacturing Specifications:

ASTM B338



ASME SB338


Also individual customer specifications.



Alloy UNSNumber C Mn Max Ni Min Ni Max Cr Min Cr Max Mo Min Mo Max Density g/cm3 Density lb/in3 UTS KSI UTS MPA YS KSI YS MPA % El in 2"
Ti CP (Grade 2) R50400 0.1 0.15             4.5 0.162 80 552 40/60 276/414 20



Description:



Item Code: SPW-G-GR.2
Tube OD.: 6.00MM - 38.10MM
Wall: 0.50MM - 2.0MM
Length:  6000MM - 12000MM
Material: Titanium Gr.2
Standard: ASTM B338, ASME SB338
Finish: Welded
Type: Welded
Certification: ISO9001:2015
Mill Test Certificate: EN10204 3.1
Packing: Wooden Boxed


Chemical composition reference analysis (as weight %)



ASTM Grade Nominal
Composition
Forms
Cold-Reduced Hot-Rolled Hot-Extruded
Grade 1 Ti x x x
Grade 2 Ti x x x
Grade 4 Ti x x x
Grade 7 Ti (Gr2) 0.2 Pd x x
Grade 12 Ti- 0.3Mo-0.8Ni x x x
Grade 16 Ti (Gr2) 0.07 Pd x x x



Products Processing Standard Grade Size
Titanium Welded Tube, Pipe ASME SB338, ASME SB862 GR1, GR2, GR7, GR12

OD: (0.315”-48”) WT: (0.0197”-0.5”)

Length: at random length
