Heat Exchanger Stainless Steel Pipe Coil 3mm - 16mm Outside Diameter

China Heat Exchanger Stainless Steel Pipe Coil 3mm - 16mm Outside Diameter supplier
Heat Exchanger Stainless Steel Pipe Coil 3mm - 16mm Outside Diameter supplier Heat Exchanger Stainless Steel Pipe Coil 3mm - 16mm Outside Diameter supplier Heat Exchanger Stainless Steel Pipe Coil 3mm - 16mm Outside Diameter supplier Heat Exchanger Stainless Steel Pipe Coil 3mm - 16mm Outside Diameter supplier

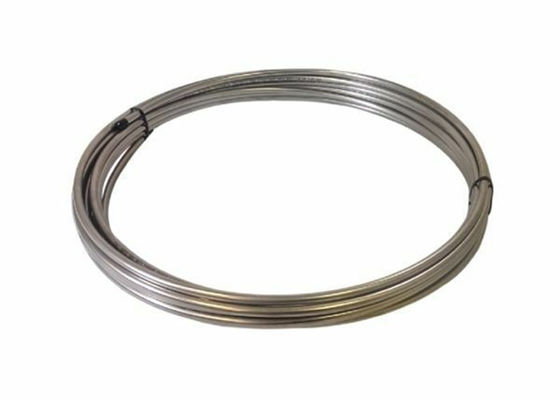

Large Image :  Heat Exchanger Stainless Steel Pipe Coil 3mm - 16mm Outside Diameter

Product Details:

Place of Origin: CHINA
Brand Name: SPEZILLA
Certification: ISO9001, TS16949, PED, AD2000
Model Number: WLD-C

Payment & Shipping Terms:

Minimum Order Quantity: 500KGS
Price: NEGOCIATION
Packaging Details: WOODEN BOXED
Delivery Time: Ex-Mill 15 - 30DAYS
Payment Terms: T/T, L/C
Supply Ability: 100TONS/MONTH
Contact Now
Detailed Product Description
Applicaton: Heat Exchanger Specification: ASTM A269
Product Name: TP316/316L Stainless Steel Coil Tubing Material Grade: TP304/304L TP316/316L
Size Range: 1/4'' - 1'' WT: 0.5-1.0mm
Finishing Options: Bright Annealing Packaging: Wooden Boxed
Test Certificate: EN10204 3.1 Shape: Round

ASTM A269 Stainless Steel Tubing Coil Beer 10x1x20ft AISI304 316L





Stainless Steel Coiled Tubes Specifications

Outside Diameter: 1/16” through 3/4”

Thickness: 0.5mm to 1.5mm, non standard sizes available on request

Stainless Steel Welded Tubing Specification: ASTM A249, ASTM A269

Stainless Steel Seamless Tubing Specification: ASTM A213, ASTM A269

Key Products: SS304 Coiled Tubes, SS316 Coiled Tubes, Duplex Coiled Tubes, Monel 400 Coiled Tubes, Hastelloy Coiled Tubes, Inconel coiled Tubes, 904L Coiled Tubes, Seamless Coiled Tubes, Welded Coiled Tubing

Test Certificates: EN 10204 3.1



Appliances



Beverage production



Boilers



Desalination



Feedwater heaters



Geothermal plants



Heat exchangers



Heat recovery steam generators



Instrumentation



Mechanical



Oil and gas



Pressure coil



Specialty automotive



Currently our product of seamless stainless steel coil tubing is available in below size range, which also covering the most popular sizes in applications:



Outside diameter: 3 mm - 16 mm
Wall thickness: 0.5 mm - 2.5 mm
Length of the seamless coiled tube is on customers requests, which can be up to 200 meters a spool.



Features & Advantages:



Seamless stainless steel coil tubing can reduce the cost of installation due to:



- Higher rate of materials utilization
- Fewer collections
- System integrity can be improved much.
- Improve the safety of the pipeline system.



The stainless steel coil tubing is widely used for industrial applications such as heat exchanger, boiler, petroleum, chemical, fertilizer, chemical, pharmaceutical, nuclear power, etc. It is also used as fluid transport system such as beer, milk, water systems, medical equipment, etc. Its other applications include mechanical structure, printing and dyeing, textile machinery, medical equipment, kitchen equipment, automobile and ship accessories, building and decoration, etc.



Typical Manufacturing Specifications:

EN10217-7

ASTM A249

ASTM A269


Also individual customer specifications.



Spezilla offers stainless steel coiled tubing in sizes from 1/4 to 1 in. and wall thickness from 0.035 to 0.049 in. Our coiled tubing is available in lengths up to 2300 feet, which is up to 30% long than traditional offerings. In addition, Spezilla offers less than reel quantities of coiled tubing. Stainless steel tube straighteners make coiled tubing installation faster and easier.


Traceability – All material is fully heat and lot traceable, allowing us to track products from raw material to finished goods.


100% testing for reliability and safer installation - Every foot ofTubing undergoes 100% hydrostatic testing and positive material identification.







These SS Coil Tubing/ Coiled stainless steel tubings are widely used in the petrochemical, natural gas, oil and gas, and geothermal applications. Most of the standard sizes of stainless steel coiled tubes are available ex-stock for immediate deliveries to our customers. We have huge stock of stainless steel 304 grade coiled tubes and stainless steel 316 grade coiled tubes in outside diameter range of 6mm to 19.05 OD. We accept order for other non standard size coiled tubings as well. Coiled tubing is available in lengths of 100 feet (30 meters), 500 meters or customs lengths as per client specification.





Description:



Item Code: SPW-C-304/304L
Tube OD.: 6.00MM - 25.40MM
Wall: 0.5MM - 1.65MM
Length: 3000MM
Material: 304/304L
Standard: ASTM A249
Finish: Bright Annealed.
Type: Welded & Coiled
Certification: ISO9001:2015
Mill Test Certificate: EN10204 3.1
Packing: Wooden Boxed





Chemical composition reference analysis (as weight %)


Chemical Amount %
  304 304L
C ≤ 0,08 ≤ 0,035
P < 0,040 < 0,040
S ≤ 0,030 ≤ 0,030
Si ≤ 1,0 ≤ 1,0
Mn ≤ 2,0 ≤ 2,0
Cr 18.00 – 20.00 18 – 20
Mo N/A N/A
Ni 8.00 – 11.00 8.00 - 13.00
N
