Annealed/ Pickled Seamless Stainless Steel Tubing , Ferritic Stainless Steel Tubing

Very competitive price and the tubes are well polished, we are very satisfied with Spezilla from our cooperation since year 2010.

—— Nathalie Gulli - Mexico

Spezilla supports our group very well, and now we are approved supplier of goverment, they are reliable and flexible! Spezilla always answers!

—— Jaime Arias - Argentina

Good quality, fast delivery, Spezilla has been supplying heat exchanger tubes for our projects since 2008, we really appreciate your support!

—— Massimiliano Rossi - Italy

I'm Online Chat Now

Annealed/ Pickled Seamless Stainless Steel Tubing , Ferritic Stainless Steel Tubing

Annealed/ Pickled Seamless Stainless Steel Tubing , Ferritic Stainless Steel Tubing
Annealed/ Pickled Seamless Stainless Steel Tubing , Ferritic Stainless Steel Tubing Annealed/ Pickled Seamless Stainless Steel Tubing , Ferritic Stainless Steel Tubing Annealed/ Pickled Seamless Stainless Steel Tubing , Ferritic Stainless Steel Tubing Annealed/ Pickled Seamless Stainless Steel Tubing , Ferritic Stainless Steel Tubing

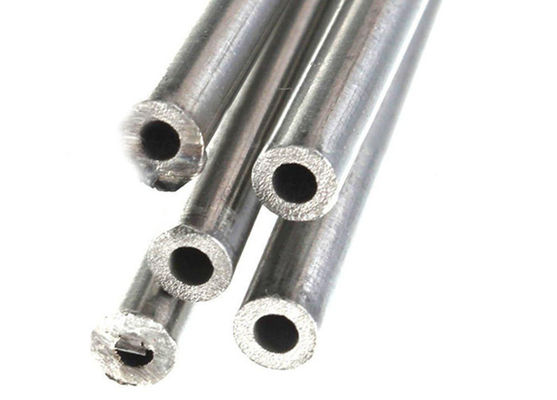

Large Image :  Annealed/ Pickled Seamless Stainless Steel Tubing , Ferritic Stainless Steel Tubing

Product Details:
Place of Origin: CHINA
Brand Name: SPEZILLA
Certification: ISO9001, TS16949, PED, AD2000
Model Number: SMLS
Payment & Shipping Terms:
Minimum Order Quantity: 500KGS
Price: NEGOCIATION
Packaging Details: WOODEN BOXED
Delivery Time: Ex-Mill 15 - 30DAYS
Payment Terms: T/T, L/C
Supply Ability: 100TONS/MONTH
Detailed Product Description
Finishing Options: Pickling, Polishing, Custom Cutting Material Grade: TP405 S40500
Test Certificate: EN10204 3.1 Packaging: Wooden Box, Bundled, Export Packaging Available
Application: Boiler,Heat Exchanger Size Range: 3/4"-3"
Shape: Round WT: BWG16 BWG14
Product Name: TP410 Ferritic Stainless Steel Tube Length: 6096mm
Specification: ASTM A268, ASME SA268
High Light:

seamless stainless steel tubing

,

rolled stainless steel tubing

SA268 TP405 S40500 Stainless Steel Tube Ferritic Stainless Steel Tubing





TP405
Product Description: TP405 Stainless Steel Seamless tubes and pipes
1) Commodity name: TP405 Stainless Steel Seamless Tubes and Pipes
2) Process method: Cold rolled/ cold drawn
3) Surface finish: Annealed/ pickled
4) Material: TP405
5) Standards: ASTM, GB, DIN, JIS, GOST
6) Size:
A) O. D.: Φ 6 to Φ 273mm
B)W. T: 0.5-25mm
7) Length: Max. 16 meters (specific or random)
8) Delivery conditions: Annealed, pickled





Spezilla's seamless bright annealed stainless steel tubes are produced acc. to the following process and inspection to assure our quality:
1. Chemical Composition Analysis Test With 100% PMI.
2. Solution Annealing / Bright Annealed.
3. 100% Hydrostatic Test and 100% Eddy Current Test
4. Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test.
5. Impact Test subject to Standard request.
6. Grain Size Test and Intergranular Corrosion Test.
7. Visual Test and Endoscope Test for Surface Quality Test




Item Code:TP405
Tube OD.:1/4'' - 2''
Wall:0.028'' - 0.120''
Length:20FT
Material:405
Standard:ASTM A268 ASME SA268
Finish:Annealed & Pickled.
Type:Seamless Cold Drawn
Certification:ISO9001:2015
Mill Test Certificate:EN10204 3.1
Packing:

Sleeved, Wooden Boxed







Applications

405 is the perfect grade stainless steel to be used in automotive applications where visual appeal is not a top priority. For this reason and for its durability to gas corrosion, 405 is most commonly used in truck exhaust systems, agricultural equipment, and heat and gas turbine exhaust silencers.




Typical Manufacturing Specifications:

ASTM A268

ASME SA268


Features

Although susceptible to rust formation, making this grade of stainless steel somewhat undesirable for decorative purposes, 409 is extremely resistant to various forms of gas corrosion.

Magnetic Properties: 409 flat rolled stainless steel is magnetic and cannot be hardened by heat treatment. It can, however, be somewhat hardened by cold-working. Type 405 has great ductility and is suitable for use in deep draw applications. It is also easily formable.

  • It is suggested prior to welding, the steel is pre-heated to 150-260C and also suggested post-weld annealing at 760-815C.


Chemical Composition

The chemical composition of grade 405 stainless steel is outlined in the following table.


ElementContent (%)
Iron, Fe85
Chromium, Cr13
Manganese, Mn1.0
Silicon, Si1.0
Aluminum, Al0.2
Carbon, C0.080
Phosphorous, P0.040
Sulfur, S0.030


Physical Properties The following table shows the physical properties of grade 405 stainless steel.


PropertiesMetricImperial
Density7.80 g/cm 30.282 lb/in³


Mechanical Properties The mechanical properties of grade 405 annealed stainless steel are displayed in the following table.


PropertiesMetricImperial
Tensile strength448 MPa65000 psi
Yield strength (@strain 0.200 %/)276 MPa40000 psi
Elastic modulus200 GPa29007 ksi
Poisson's ratio0.27-0.300.27-0.30
Elongation at break (in 50 mm)25.00%25.00%
Izod Impact (@20°C/68°F)41.0 J30.2 ft-lb
Hardness, Brinell (converted from Rockwell B hardness)131131
Hardness, Knoop (converted from Rockwell B hardness)146146
Hardness, Rockwell B7575
Hardness, Vickers (converted from Rockwell B hardness)140140





Grade:TP405TP410TP249TP430TP443TP446-1TP446-2TP409
UNSS40500S41000S42900S43000S44300S44600S44600S40800S40900
C, max0.080.150.120.120.200.200.120.080.08
Mn,max1.001.001.001.001.001.501.501.001.00
P, max0.040.040.040.040.040.040.040.0450.045
S, max0.030.030.030.030.030.030.030.0450.045
Si, max1.001.001.001.001.001.001.001.001.00
Ni0.50max0.75max0.75max0.50max0.80max0.50max
Cr11.5-14.511.5-13.514.0-16.016.0-18.018.0-23.023.0-27.023.0-27.011.5-13.010.5-11.7
Mo
Al0.10-0.30
Cu0.90-1.25
N0.250.2512xCmin6xCmin
Ti1.10max0.75max


Annealed/ Pickled Seamless Stainless Steel Tubing , Ferritic Stainless Steel Tubing 0
