Seamless 316 Stainless Steel Tubing , Seamless Steel Tube For Aerospace

China Seamless 316 Stainless Steel Tubing , Seamless Steel Tube For Aerospace supplier
Seamless 316 Stainless Steel Tubing , Seamless Steel Tube For Aerospace supplier Seamless 316 Stainless Steel Tubing , Seamless Steel Tube For Aerospace supplier Seamless 316 Stainless Steel Tubing , Seamless Steel Tube For Aerospace supplier Seamless 316 Stainless Steel Tubing , Seamless Steel Tube For Aerospace supplier

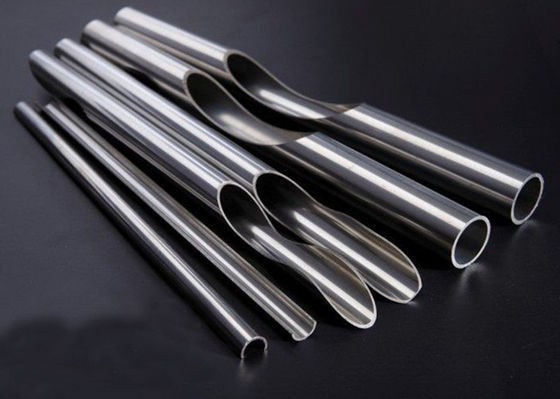

Large Image :  Seamless 316 Stainless Steel Tubing , Seamless Steel Tube For Aerospace

Product Details:

Place of Origin: CHINA
Brand Name: BWSS
Certification: PED, ISO, GOST
Model Number: TP304/TP316L/TP904L

Payment & Shipping Terms:

Minimum Order Quantity: 0.5-1TONS
Price: Negotiable
Packaging Details: Each in PVC bags, than in Bundles
Delivery Time: 20 days
Payment Terms: T/T
Supply Ability: 1000 tons per month
Contact Now
Detailed Product Description
Application: Aerospace Material Grade: AISI 304 316
Outer Diameter: 3/8" 1/2" Wall Thickness: 0.049" 0.039"
Length: Cut Into Pcs Process Method: Welded,precision Rolled,cold Drawn
Standard: ASTM/AISI ,GB,JIS,DIN,EN,etc Surface Finish: 180G, 320G, 400G Satin / Hairline,400G, 500G, 600G Or 800G Mirror Finish
Type: High Precision Stainless Steel Tubing / Tube Package: Wooden Case

Seamless Capillary 304 316 Stainless Steel Tube For Aerospace





Stainless Steel Capillary Pipes & Tubes are used in different applications of intra/extra cellular biology, separation sciences, hematology sampling and study, biotechnology, and biochemistry. Capillary Tube is a long, narrow tube of constant diameter.



We manufacture special sizes of Stainless steel 304/304L capillary tubing’s also called as Stainless steel 304/304L surgical tubes which are critical and used in various Instrumentation, Medical and Heat treatment industry.



Capillary Tubes Specification

Specifications : ASTM, ASME, AISI

Size : 1mm OD to 10mm OD

Thickness : 0.7 mm to 3.68 mm

Schedules : 5S, 10S, 20S, 40S, XS, 80S, 100S, 120S, 160S, XXS etc.

Length : Single Random, Double Random & Required Length

Form : Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes

End : Plain End, Beveled End, Treaded



TYPE:


SEAMLESS / ERW / WELDED/ SEMI-SEAMLESS / FABRICATED



Grade of stainless steel capillary pipes & tubes:


304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.



Non-Ferrous Capillary pipes & tubes:


Inconel, Monel, Hastelloy, Copper, Brass, Nickel, Copper-nickel alloys, Copper alloys, nickel alloys, duplex stainless steel and other types of steels.

FORM:
ROUND, STRAIT, HYDRAULIC ETC.

LENGTH:
SINGLE RANDOM, DOUBLE RANDOM , COIL FORM, CUT LENGTH

END:



PLAIN END, BEVELED END.



Surface conditions for Stainless steel 304/304L capillary pipes and tubes:

  • Stainless steel 304/304L Bright Annealed capillary pipes and tubes
  • Stainless steel 304/304L Polished capillary pipes and tubes
  • Stainless steel 304/304L Annealed & Pickled capillary pipes and tubes
  • Stainless steel 304/304L Bright Annealed & polished capillary pipes and tubes
  • Stainless steel 304/304L Electro polishing capillary pipes and tubes

Stainless Steel Capillary Tubes for medical needle applications and applicable fields:


  • Hydraulic control lines with seamless coil tubing
  • Marine seamless coil tubing
  • Oilfield test cable coil tubing
  • High-pressure instrumentation coil tubing
  • Health and medical grade seamless coil tubing
  • Cold heat exchanger seamless coil tubing
  • Coal mine detection seamless coil tubing
  • Deep-sea oil drilling seamless coil tubing
  • Instant water heater with seamless coil tubing
  • Water dispenser beverage machine with coil tubing
  • Refrigerating Equipment, Condensers
  • Beverage Machinery, machines in brewery industry
  • Evaporators,Heat Exchanger
  • Liquid/ Gas Transportation
  • CNG with coil tubing
  • Other Industries



Advantage:



• Advanced production and inspection equipment

• Top quality control system and service system

• Professional & Sincerity

• Competitive Price

• Good Reputation

• Timely Delivery



Applications Of Stainless Steel Capillary Tube

  • Medical device industry – injection needle tube, puncture needle tube
  • Industrial electric heating tube, oil tube
  • Temperature sensor, Sensor tube, Instrument tube
  • Automobile tube
  • Food industrial pipe,



Capillary tubes are used in applications, such as:

  • Chromatography
  • Gas and liquid lines
  • Measurement components in remote thermometer systems (with or without compensation)



Stainless Steel Capillary Tube Size Range:




Gauge
Outside Diameter Tolerance mm Regular Wall Thickness (RWT) mm Thin Wall Thickness mm Extra Thin Wall Thicknessmm Ultra Thin Wall Thickness mm
30 0.304 – 0.317 0.064 – 0.089
29 o.330 – 0.342 0.064 – 0.089
28 0.355 – 0.368 0.076 – 0.102
27 0.406 – 0.419 0.089 – 0.115 0.064 – 0.089
26 0.457 – 0.469 0.089 – 0.114
25 0.508 – 0.520 0.115 – 0.140 0.089 – 0.114
24 0.558 – 0.571 0.114 – 0.140 0.089 – 0.114   0.051 – 0.102
23 0.635 – 0.647 0.140 – 0.165 0.089 – 0.114   0.051 – 0.102
22 0.711 – 0.723 0.140 – 0.165 0.096 – 0.121 0.077 – 0.102 0.051 – 0.102
21 0.812 – 0.825 0.140 – 0.165 0.102 – 0.127   0.051 – 0.102
20 0.901 – 0.914 0.108 – 0.165 0.108 – 0.134
19 1.054 – 1.079 0.166 – 0.216 0.102 – 0.140 0.070 – 0.108
18 1.257 – 1.282 0.191 – 0.241 0.127 – 0.165 0.083 – 0.121 0.051 – 0.102
17 1.460 – 1.485 0.177 – 0.229 0.115 – 0.152 0.083 – 0.127 0.057 – 0.102
16 1.638 – 1.663 0.204 – 0.254 0.127 – 0.165 0.096 – 0.133 0.070 – 0.121
15 1.816 – 1.841 0.204 – 0.254 0.127 – 0.165 0.096 – 0.134 0.070 – 0.121
14 2.082 – 2.133 0.216 – 0.292 0.165 – 0.229 0.114 – 0.165 0.076 – 0.134
13 2.387 – 2.438 0.267 – 0.343 0.191 – 0.267
12 2.743 – 2.749 0.267 – 0.321
11 3.023 – 3.073 0.293 – 0.368 0.216 – 0.292
10 3.378 – 3.429 0.318 – 0.394 0.216 – 0.292







Type Chemical Composition(%)
ASTM C Cr Ni Mn P S Mo Si Cu N
TP304 ≤0.08 18.0-20.0 8.0-11.0 ≤2.00 ≤0.045 ≤0.030 - - - ≤1.00 - - - - - -
TP304L ≤0.035 18.0-20.0 8.0-13.0 ≤2.00 ≤0.045 ≤0.030 - - - ≤1.00 - - - - - -
TP304H 0.04-0.10 18.0-20.0 8.0-11.0 ≤2.00 ≤0.045 ≤0.030 - - - ≤1.00 - - - - - -
TP310S ≤0.08 24.0-26.0 19.0-22.0 ≤2.00 ≤0.045 ≤0.030 ≤0.75 ≤1.00 - - - - - -
TP316 ≤0.08 16.0-18.0 11.0-14.0 ≤2.00 ≤0.045 ≤0.030 2.00-3.00 ≤1.00 - - - - - -
TP316L ≤0.035 16.0-18.0 10.0-14.0 ≤2.00 ≤0.045 ≤0.030 2.00-3.00 ≤1.00 - - - - - -
TP316N ≤0.08 16.0-18.0 11.0-14.0 ≤2.00 ≤0.045 ≤0.030 2.00-3.00 ≤1.00 - - - 0.10-0.16
TP317L ≤0.035 18.0-20.0 11.0-15.0 ≤2.00 ≤0.045 ≤0.030 3.0-4.0 ≤1.00 - - - - - -
TP321 ≤0.08 17.0-19.0 9.0-12.0 ≤2.00 ≤0.045 ≤0.030 - - - ≤1.00 - - - ≤0.10
TP321H 0.04-0.10 17.0-19.0 9.0-12.0 ≤2.00 ≤0.045 ≤0.030 - - - ≤1.00 - - - - - -
TP347 ≤0.08 17.0-19.0 9.0-13.0 ≤2.00 ≤0.045 ≤0.030 - - - ≤1.00 - - -

- - -





Seamless 316 Stainless Steel Tubing , Seamless Steel Tube For Aerospace
