ASTM A268 Small Diameter Stainless Tubing , 3 Inch Stainless Steel Pipe

China ASTM A268 Small Diameter Stainless Tubing , 3 Inch Stainless Steel Pipe supplier
ASTM A268 Small Diameter Stainless Tubing , 3 Inch Stainless Steel Pipe supplier ASTM A268 Small Diameter Stainless Tubing , 3 Inch Stainless Steel Pipe supplier ASTM A268 Small Diameter Stainless Tubing , 3 Inch Stainless Steel Pipe supplier ASTM A268 Small Diameter Stainless Tubing , 3 Inch Stainless Steel Pipe supplier

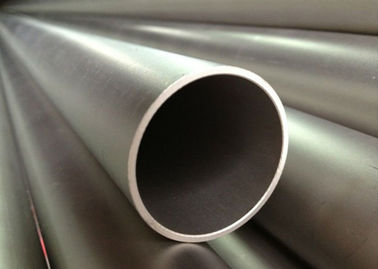

Large Image :  ASTM A268 Small Diameter Stainless Tubing , 3 Inch Stainless Steel Pipe

Product Details:

Place of Origin: CHINA
Brand Name: SPEZILLA
Certification: ISO9001, TS16949, PED, AD2000
Model Number: SMLS

Payment & Shipping Terms:

Minimum Order Quantity: 500KGS
Price: NEGOCIATION
Packaging Details: WOODEN BOXED
Delivery Time: Ex-Mill 15 - 30DAYS
Payment Terms: T/T, L/C
Supply Ability: 100TONS/MONTH
Contact Now
Detailed Product Description
Material Grade: UNS S40900 Size Range: 1"-3"
WT: BWG18 BWG16 Length: 6096mm
Specification: ASTM A268, ASME SA268 Finishing Options: Pickling, Polishing, Custom Cutting
Test Certificate: EN10204 3.1 Packaging: Wooden Box, Bundled, Export Packaging Available
Application: Boiler,Heat Exchanger Shape: Round
Product Name: TP410 Ferritic Stainless Steel Tube

ASTM A268 409 409L Stainless Steel Tubing,Welded Tube UNS S40900







ASTM A268 409 409L 1.4512 stainless steel is an alloy designed principally for the automotive exhaust industry, although it has been used successfully in other industrial applications. It combines good elevated temperature corrosion resisitance with medium strength, good formability and overall cost. 409L stainless steel is highly resistant to high temperatures, achievable engine and exhaust systems, and reduces the thickness of the exhaust system to reduce exhaust emissions. Low cost, good flexibility, high yield, easy replacement, and environmentally friendly new products.

409 is a titanium stabilised ferritic stainless steel. Although regarded as a general-purpose chromium stainless steel the primary application for Grade 409 is automotive exhaust systems. Its applications are those where appearance is a secondary consideration to mechanical properties and corrosion resistance and where some weldability is required.

Type 409 is a ferritic stainless steel that has a good combination of heat resistance and corrosion resistance. Its titanium stabilized low nickel content provides for an economical metal to corrosion resistance and oxidation resistance.



Ferritic stainless steels are classified in the 400 series, usually with 10% to 30% chromium content, and are often chosen for their excellent corrosion resistance and elevated temperature oxidation resistance. With greater strength than carbon steels, ferritics provide an advantage in many applications where thinner materials and reduced weight are necessary, such as automotive emission control systems. They are nonhardenable by heat treating and are always magnetic.



Grade 409 / 409L is a titanium stabilized Ferritic Stainless Steel ,most commonly known for use in automotive exhaust systems. It features good mechanical properties and high temperature corrosion resistance. As a matter of fact, 409 / 409L as a chromium stainless steel can also be used in applications where weldability and corrosion protection are demanded. Although it is susceptible to rust formation, rarely used for decoration purpose, 409 / 409L stainless steel demonstrates excellent corrosion resistance against gas corrosion.

409 / 409L Applications

Due to good resistance to high temperature corrosion and gas corrosion, good mechanical property and weldability, 409 / 409L is extensively used in automotive applications, truck exhaust systems, agricultural equipment, as well as heat and gas turbine exhaust silencers.



Grade 409 / 409L, Type 409 / 409L, Inox 409 / 409L, AISI 409 / 409L, SUH409 / 409L, 1.4512, UNS S40900, UNS S40903, Acero 409 / 409L.



Common Trade Names
409 Stainless, 409 Stainless Steel

Features
Although susceptible to rust formation, making this grade of stainless steel somewhat undesirable for decorative purposes, 409 is extremely resistant to various forms of gas corrosion.

  • It is suggested prior to welding, the steel is pre-heated to 150-260C and also suggested post-weld annealing at 760-815C.

Applications


409 is the perfect grade stainless steel to be used in automotive applications where visual appeal is not a top priority. For this reason and for its durability to gas corrosion, 409 is most commonly used in truck exhaust systems, agricultural equipment, and heat and gas turbine exhaust silencers.







Typical Manufacturing Specifications:


ASTM A268



ASME SA268



Chemical Formula
Fe, <0.08% C, 10.5-11.75% Cr, <0.5% Ni, <1.0% Mn, <1.0% Si, <0.045% P, <0.03% S, 6x%C-0.75% Ti

Quality Assurance:


Spezilla's seamless bright annealed stainless steel tubes are produced acc. to the following process and inspection to assure our quality:

1. Chemical Composition Analysis Test With 100% PMI.

2. Solution Annealing / Bright Annealed.

3. 100% Hydrostatic Test and 100% Eddy Current Test

4. Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test.

5. Impact Test subject to Standard request.

6. Grain Size Test and Intergranular Corrosion Test.

7. Visual Test and Endoscope Test for Surface Quality Test





Chemical Composition of ASTM A268 409 S40900 Grade and EN 10088-2 1.4512 1.4516 Stainless Steel






Grade C Mn Si P S Cr Ni Ti
TP409 min. max. - 0.08 - 1.00 - 1.00 - 0.045 - 0.030 10.5 11.7 - 0.50 6×C-0.75
TP409L min. max. - 0.035 - 1.00 - 1.00 - 0.045 - 0.030 10.5 11.7 - 0.50 6×C-0.75
1.4516 min. max. - 0.08 - 1.50 - 0.70 - 0.040 - 0.015 10.5 12.5 0.50-1.50 0.05-0.35
1.4512 min. max. - 0.030 - 1.00 - 1.00 - 0.040 - 0.015 10.5 12.5 - 0.50 6×(C+N)-0.65






Grade: TP405 TP410 TP249 TP430 TP443 TP446-1 TP446-2 TP409
UNS S40500 S41000 S42900 S43000 S44300 S44600 S44600 S40800 S40900
C, max 0.08 0.15 0.12 0.12 0.20 0.20 0.12 0.08 0.08
Mn,max 1.00 1.00 1.00 1.00 1.00 1.50 1.50 1.00 1.00
P, max 0.04 0.04 0.04 0.04 0.04 0.04 0.04 0.045 0.045
S, max 0.03 0.03 0.03 0.03 0.03 0.03 0.03 0.045 0.045
Si, max 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00
Ni 0.50max 0.75max 0.75max 0.50max 0.80max 0.50max
Cr 11.5-14.5 11.5-13.5 14.0-16.0 16.0-18.0 18.0-23.0 23.0-27.0 23.0-27.0 11.5-13.0 10.5-11.7
Mo
Al 0.10-0.30
Cu 0.90-1.25
N 0.25 0.25 12xCmin 6xCmin
Ti 1.10max 0.75max
