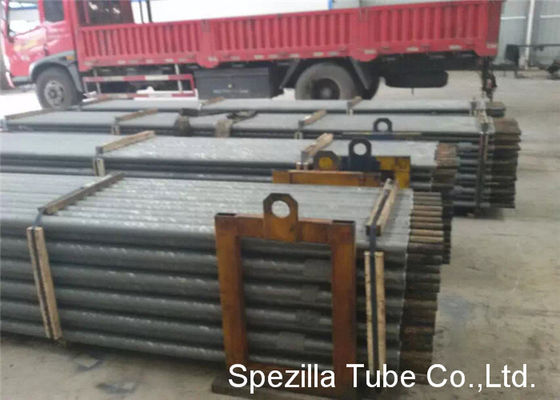

Air Cooled L Type Finned tube in tube heat exchanger Al 1060 For Air Fin Coolers

Air Cooled L Type Finned tube in tube heat exchanger  Al 1060 For Air Fin Coolers
Air Cooled L Type Finned tube in tube heat exchanger  Al 1060 For Air Fin Coolers Air Cooled L Type Finned tube in tube heat exchanger  Al 1060 For Air Fin Coolers Air Cooled L Type Finned tube in tube heat exchanger  Al 1060 For Air Fin Coolers Air Cooled L Type Finned tube in tube heat exchanger  Al 1060 For Air Fin Coolers

Large Image :  Air Cooled L Type Finned tube in tube heat exchanger Al 1060 For Air Fin Coolers

Product Details:
Place of Origin: CHINA
Brand Name: SPEZILLA
Certification: ISO9001
Model Number: L TYPE
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: WOODEN BOXED
Delivery Time: 30DAYS
Payment Terms: L/C, T/T
Supply Ability: 100TONS/MONTH
Detailed Product Description
Product Name: Heat Exchanger Tube Materials: AL1060 AL1100
Type: FINNED TUBE Production: EXTRUDED
Base Tube: CARBON STEEL Application: Heat Exchanger
FPI: 11 Shape: Round
Package: Steel Frame
High Light:

u bend tube

,

aluminium extruded finned tubes

Air Cooled L Type Finned tube in tube heat exchanger Al 1060 For Air Fin Coolers







Aluminum L-Foot Finned Tubes are typically used in applications where temperatures do not exceed about 450 degrees F, primarily in air-cooled applications. Other examples include large radiators, such as large compressor oil coolers, and other forced-draft or induced-draft air-cooled applications.



Description:



L finned tube



“L” Finned tube



Economically produced fin tube for moderate working temperature up to 150ºC


“L” finned tube relies on maximum surface contact between fin and tube which is ensured by tension forming fin strip helically around the base tube.


A considerable degree of protection is given to the tube by the base of the fin.


We can also fin Nominal bore tube from 3/8” to 1 ¼”.





Manufacturing details:





Aluminium “L” finned tube



Max. Fin Height – 22.22 mm (0.875”)


Min. Fin Height – 9.5 mm (0.375”)


Max. Fin Density – 11 FPI (433 FPM)


Min. Fin Density - 5.2 FPI (205 FPM)


Max. Tube Diam. – 38.1 mm (1.5”)


Min. Tube Diam. _ 12.7 mm (0.5”)


Max. Tube Length – 15m (49ft)





Copper “L” finned tube



Max. Fin Height – 19.05 mm (0.75”)


Min. Fin Height – 6.35 mm (0.25”)


Max. Fin Density – 11 FPI (433 FPM)


Min. Fin Density - 5.2 FPI (205 FPM)


Max. Tube Diam. – 38.1mm (1.5”)


Min. Tube Diam. _ 9.5mm (0.375”)


Max. Tube Length – 15m (49ft)





Base tube material



Carbon Steel, Stainless steel, Copper, Copper alloys, Titanium.





ASME SA 179 Specification



ASME SA 179 Carbon Steel Seamless Tubes are Low Carbon Steel Tubes with 0.06-0.18 % carbon content with combination of 0.27-0.63 % manganese. These Tubes are also known as mild steel pipes and tubes. ASME SA 179 Tubes are low-cost Tubes easy to form and shape. These pipes are manufactured as per ASME Specification and commercially referred as cs pipes or ms pipes. Low Carbon Steel Pipes are not as hard as hig carbon steel pipes,Though carburizing can increase its surface hardness.



Specifications:
Tube OD 5/8”, 3/4”, 1”, 1-1/4” and 1-1/2″
Fin Height 3/8″, 7/16”, 1/2” and 5/8″
Fin Type Solid or Perforated
Fin Thickness 0.014” to 0.016″
Number of fins 8 to 12 fin per inch
Fin Material Aluminum 1100-0 or Aluminum 1060
Tube Material Generally carbon steel, stainless steel, or brass — can be any material
Tube Length No practical limit



Applications:

A wide variety of economizers and waste heat recovery units to utilize heat from boiler flue gas, gas turbine exhaust, incinerators, etc.

Glycol dehydration units

Fired heaters, such as LNG vaporizers, air pre-heaters, oil heaters, etc.

Asphalt tank heaters

Air coolers, such as compressor jacket water and lube oil coolers

Lumber drying kilns, and similar applications

Livestock enclosure and greenhouse heaters





Air Cooled L Type Finned tube in tube heat exchanger  Al 1060 For Air Fin Coolers 0
