1.4301 Sanitary Metric Stainless Steel Tubing DIN 11850 104 X 2.0MM With OD Polished

1.4301 Sanitary Metric Stainless Steel Tubing DIN 11850 104 X 2.0MM With OD Polished
1.4301 Sanitary Metric Stainless Steel Tubing DIN 11850 104 X 2.0MM With OD Polished 1.4301 Sanitary Metric Stainless Steel Tubing DIN 11850 104 X 2.0MM With OD Polished 1.4301 Sanitary Metric Stainless Steel Tubing DIN 11850 104 X 2.0MM With OD Polished 1.4301 Sanitary Metric Stainless Steel Tubing DIN 11850 104 X 2.0MM With OD Polished

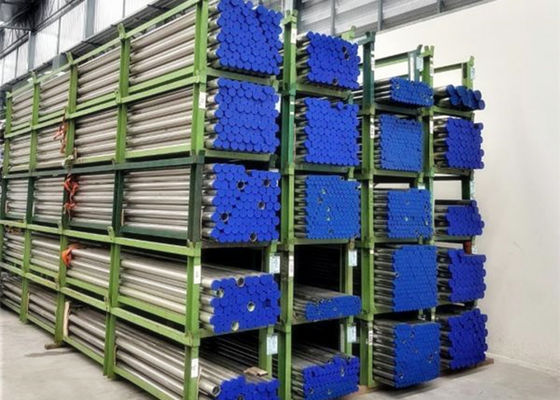

Large Image :  1.4301 Sanitary Metric Stainless Steel Tubing DIN 11850 104 X 2.0MM With OD Polished

Product Details:
Place of Origin: KOREA / CHINA
Brand Name: SPEZILLA
Certification: 3A ISO9001
Model Number: DN100
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: negotiable
Packaging Details: WOODEN BOXED
Delivery Time: 5-8 WORKING DAYS
Detailed Product Description
Product Name: Stainless Steel Tube Specification: DIN 11850
Stainless: 1.4301 DN: DN100 / 104.00MM
WT: 2.0mm Length Size: 6000MM
Tube Finish: OD Polished Shape: Round
Package: Wooden Case Application: Food
High Light:

stainless steel round pipe

,

round stainless steel pipe

1.4301 Sanitary Metric Stainless Steel Tubing DIN 11850 104 X 2.0MM With OD Polished

Tube is manufactured welded-as-seam-less (WSL) according to the latest edition of EN10357 (previously DIN11850) with the specific purpose of servicing the food and beverage industries such as dairy and brewery companies in Europe and Southeast Asia.



High-Quality Sanitary Tubing That Meets DIN 11850 Standards



Aside from meeting 3-A standards, our stainless steel sanitary tubing also meets rigorous DIN standards.

Cut to size upon request, 236” standard length

Control the flow and direction of your hygienic fluids

For use in multiple industries and meets DIN 11850 standards



SPECS:

DIN 11850 Sanitary Stainless Steel Tubing



304L grade



DIN Type







Execution Specifications Pre-Materials Surface Finish (max)
CC DIN11850
EN10357
1.4301
1.4404
ID Welded as Seam-Less Unpolished
OD Pickled Unpolished
CD DIN11850
EN10357
1.4301
1.4404
ID Welded as Seam-Less Unpolished
OD Pickled & Polished < 0.8 μm
BC DIN11850
EN10357
1.4301
1.4404
ID Welded as Seam-Less Bright Annealed
OD Bright Annealed Unpolished
BD DIN11850
EN10357
1.4301
1.4404
ID Welded as Seam-Less Bright Annealed
OD Polished < 0.8 μm
MP DIN11850
EN10357
1.4301
1.4404
ID < 20 RA < 0.5 μm
OD < 32 RA < 0.8 μm



Descriptions:


Item Code: SPW-EN10357-A-4301-100
Tube OD.: 104.00MM
Wall: 2.00MM
Length: 6000MM
Material: 1.4301
Standard: EN10357 Series A  (DIN 11850 Reihe 2)
Finish: CC, CD, BC, BD
Polish: Mechanical Polished
Type: Welded
Certification: 3A - Food / Dairy Grade
Mill Test Certificate: EN10204 3.1
Packing: Sleeved, Ends Capped, Wooden Boxed


Chemical Compositions:


Elements 1.4301 (wt%)
C / Max. 0.08
Mn / Max 2.00
P / Max 0.045
S / Max 0.030
Si / Max 1.00
Ni  8.00 - 10.50
Cr 17.00 - 19.50
Mo N/A
Fe Bal.
Cu N/A
N 0.11



Mechanical Properties:



Grade

Tensile Strength
(Mpa)

Yield Strength
 (Mpa)

Elongation
(%)


 1.4301



500 - 700


≥195


≥40





Quality Assurance:


1. 100% PMI / SPECTRO CHEMICAL ANALYSIS TESTS
2.100% DIMENSION TESTS & 100% VISUAL EXAMINATION
3. TENSION TEST, FLARING TESTS(FOR SEAMLESS TUBE/PIPE)/FLANGE TESTS(FOR WELDED TUBE/PIPE), HARDNESS TEST, REVERSED FLATTENING TEST(FOR WELDED TUBE/PIPE), FLATTENING TEST (FOR SEAMLESS TUBE/PIPE)
4. 100% HYDROSTATIC TEST/100% NON-DESTRUCTIVE TESTS
5. ROUGNESS TESTS

NOTES : ALL THE TESTS AND INSPECTION NEED TO PROVIDE WITH REPORTS ACCORDING TO STANDARD AND TEST RESULTS

a. MTC (MATERIAL TEST CERTIFICATION) ACCORDING TO EN10204/3.1 OR EN 10204/3.2
b. RAW MATERIAL CERTIFICATION
c. ALL THE TEST & INSPECTION REPORTS AS PER PO AND STANDARDS
d. HEAT TREATMENT REPORT
e. SHIPPING NOTIFICATION BEFORE SHIPMENT
f. QUALITY WARRANTY LETTER



Applications:


Spezilla's EN10217-7 DIN 11850 EN 10357 welded stainless steel sanitary tubings are applicable to a wide range of manufacturing industries as following:


1. Food Processing & Beverage


2. Dairy


3. Wine & Brewery


4. Cosmetic



5. Biotechnolgy, Pharmaceutical
