High Purity Round Steel Tubing , Metric Stainless Steel Tubing ASME BPE

China High Purity Round Steel Tubing , Metric Stainless Steel Tubing ASME BPE supplier
High Purity Round Steel Tubing , Metric Stainless Steel Tubing ASME BPE supplier High Purity Round Steel Tubing , Metric Stainless Steel Tubing ASME BPE supplier High Purity Round Steel Tubing , Metric Stainless Steel Tubing ASME BPE supplier High Purity Round Steel Tubing , Metric Stainless Steel Tubing ASME BPE supplier

Large Image :  High Purity Round Steel Tubing , Metric Stainless Steel Tubing ASME BPE

Product Details:

Place of Origin: KOREA / CHINA
Brand Name: SPEZILLA
Certification: ASME BPE / 3A / ISO9001
Model Number: TP316L

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: negotiable
Packaging Details: WOODEN BOXED
Delivery Time: 5-8 WORKING DAYS
Contact Now
Detailed Product Description
Specification: ASME BPE / ASTM A270 S2 Material: TP316L
Surface Condition: SF1 Size: 1/2'' X 0.065''
Length: 20FT Tube Finish: ID / OD Polished

TP316L 1/2'' X 0.065'' X 20FT ASME BPE SF1 Polished Stainless Steel Sanitary Tubing


Features:



Spezilla offers ASME BPE stainless steel sanitary tubing that is manufactured to the stringent ASME BPE and ASTM A270 S2 specifications. This high quality tubing is 100% boroscoped and mechnically polished on both the ID and OD, certified to 20 u-in Ra (0.5um) inner diameter (ID) maximum, and 30 u-in Ra (0.8um) outer diameter (OD) maximum surface roughness. Surface finishes are measured per ASME/ANSI B46.1, with the profilometer reading at 90 degrees to major polish pattern. Our A270-BPE series tubing significantly reduces customer inspection requirements prior to installation by utilizing only the highest quality stainless steel materials. Spezilla offers industry leading stainless steel sanitary tubing along with technical expertise and unmatched service. We stock all standard ASME BPE tubings in size 1/2'' - 6'' in 20ft lengths.



Descriptions:


Item Code: SPS-A270-316L-0050-065-MP-BPE
Tube OD.: 1/2''
Wall: 16 Gauge (0.065'')
Length: 20'
OD Tolerance: +/-0.005'' / +/-0.13MM
WT Tolerance: +/-10%
Length Tolerance: +1/8'' / +3.18MM
Material: TP316L
Standard: ASME BPE / 3A / ASTM A270 S2
Finish: 20Ra ID / 32Ra OD
Polish: SF1 / Mechanical Polished
Type: SEAMLESS
Certification: ASME BPE
Mill Test Certificate: EN10204 3.1
Packing: Sleeved, Ends Capped, Wooden Boxed


Chemical Compositions:


Elements 316L (wt%)
C / Max. 0.035
Mn / Max 2.00
P / Max 0.045
S / Max 0.005 - 0.017
Si / Max 1.00
Ni  10.00 - 14.00
Cr 16.00 - 18.00
Mo N/A
Fe Bal.
Cu N/A
N N/A



Mechanical Properties:



Grade

Tensile Strength
(Mpa)

Yield Strength
 (Mpa)

Elongation
(%)

Hardness
(HRB)



 316L





≥485



≥170



≥35



≤90





Quality Assurance:



Spezilla's ASME BPE stainless steel sanitary tubing undergoes a rigorous quality inspection, including destructive and non-destructive examination, at the mill prior to shipment.

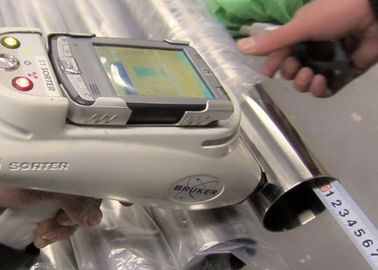

1. Chemical Composition: PMI Test



2. Mechanical Properties: Tensile Test, Hardsness Test


3. 100% Eddy Current, Air Under Water Test,  Hydrostatic Test


4. Flange Test, Flattening Test, Reverse Flattening Test, Reverse Bending Test.



5. Dimensional Check: OD, WT, Straightness


6. Metallurgical Test



Applications:


Our ASME BPE stainless steel sanitary tubings are applicable to a wide range of manufacturing industries:


1. Food & Beverage


2. Dairy


3. Wine & Brewery


4. Cosmetic



5. Pharmacy



6. Biotechnology
