32mm Automotive polished stainless steel tubing Seamless Polished Round AISI 304 316

Very competitive price and the tubes are well polished, we are very satisfied with Spezilla from our cooperation since year 2010.

—— Nathalie Gulli - Mexico

Spezilla supports our group very well, and now we are approved supplier of goverment, they are reliable and flexible! Spezilla always answers!

—— Jaime Arias - Argentina

Good quality, fast delivery, Spezilla has been supplying heat exchanger tubes for our projects since 2008, we really appreciate your support!

—— Massimiliano Rossi - Italy

I'm Online Chat Now

32mm Automotive polished stainless steel tubing Seamless Polished Round AISI 304 316

32mm Automotive polished stainless steel tubing Seamless Polished Round AISI 304 316
32mm Automotive polished stainless steel tubing Seamless Polished Round AISI 304 316 32mm Automotive polished stainless steel tubing Seamless Polished Round AISI 304 316 32mm Automotive polished stainless steel tubing Seamless Polished Round AISI 304 316 32mm Automotive polished stainless steel tubing Seamless Polished Round AISI 304 316

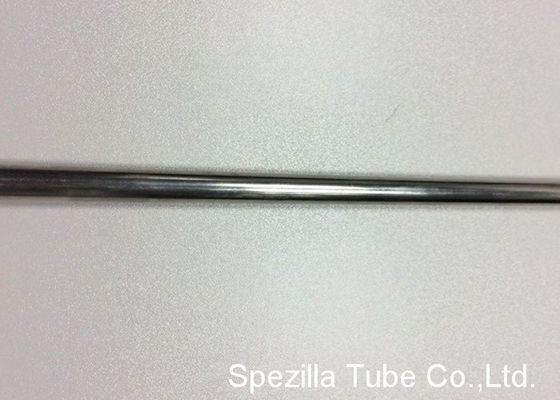

Large Image :  32mm Automotive polished stainless steel tubing Seamless Polished Round AISI 304 316

Product Details:
Place of Origin: CHINA
Brand Name: SPEZILLA
Certification: ISO
Model Number: A511
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: wooden cases/Bundle
Delivery Time: 30 days
Supply Ability: 1000Tons/Month
Detailed Product Description
Product Name: Stainless Steel Tube Standard: ASTM A511
Grade: 304,316 Size: 6mm-1016mm
Process: TIG Surface Finish: Bright Annealed/Polished
Approval: ISO Application: Industry,Petroleum
Shape: Round Package: Wooden Case
High Light:

industrial stainless steel pipe

,

food grade stainless tubing

32mm Automotive polished stainless steel tubing Seamless Polished Round AISI 304 316





SPEZILLA TUBE offer wide range of welded, welded-and-drawn, and seamless stainless steel tube and pipe to meet your unique needs.

In addition to a full range of standard sizes and traditional grades, such as 304 and 316, we also supply a wide variety of custom tube and pipe, including the following alloys:

  • Austenitic – 304, 316, 317L, 321, 347, 904L
  • Ferritic – 409, 430, 439, 446, 29-4-C
  • Martensitic – 440
  • Precipitation Hardened – 13-8, 15-5, 17-4, 17-7
  • Duplex Alloys – 2003, 2101, 2205, 2507
  • Titanium.
  • Nickel Alloy



Available Sizes:


Any size can be provided but this process is usually used sizes of NPS 8’’ and upper.



Eletric-Fushion-Welded Austenitic Chromium-Nickel Stainless Steel Pipe For High-Temperature Service and General Applications



This specification cover electric-fusion-welded austenitic chromium-nickel stainless steel pipe suitable for corrosive or high-temperature service, or both, or for general applications. The pipes come in five classes.




Class1:
Pipe is double welded by processes employing filler metal in all passes and are completely radiographed.



Class2:
Pipe is double welded by processes employing filler metal in all passes without radiography



Class3:
Pipe is single welded by processes employing filler metal in all passes and are completely radiographed.


Class4:
Same as Class 3 except that the weld pass exposed to the inside pipe surface may be made without the addition of filler metal.


Class5:
Pipe is double welded by processes employing filler metal in all passes and is spot radiographed.







MINAL
DIAMETER NPS
OUTSIDE
DIAMETER(MM)
SCH-5S
WALL THICKNESS(MM)
SCH-10S
WALL THICKNESS(MM)
SSCH-40S
WALL THICKNESS(MM)
1/4 13.72   1.65 2.24
3/8 17.15   1.65 2.31
1/2 21.34 1.65 2.11 2.77
3/4 26.67 1.65 2.11 2.87
1 33.40 1.65 2.77 3.38
1 1/4 42.16 1.65 2.77 3.56
1 1/2 48.26 1.65 2.77 3.68
2 60.33 1.65 2.77 3.91
2 1/2 73.03 2.11 3.05 5.16
3 88.90 2.11 3.05 5.49
3 1/2 101.60 2.11 3.05 5.74
4 114.30 2.11 3.05 6.02
5 141.30 2.77 3.40 6.55
6 168.28 2.77 3.40 7.11
8 219.08 2.77 3.76 8.18
10 273.05 3.40 4.19 9.27
12 323.85 3.96 4.57 9.53
14 355.60 3.96 4.78 9.53
16 406.40 4.19 4.78 9.53
18 457.20 4.19 4.78 9.53
20 508.00 4.78 5.54 9.53
22 558.80 4.78 5.54
24 609.60 5.54 6.35 9.53
30 762.00 6.35 7.92

32

|

80

812.8

|

2032.0

(Thickness):6.35~30mm

Nominal diameter and wall thickness subject to the approval of vendor and purchaser
