Round Automotive 1 inch round steel tubing ASTM A358 1.4404 Class 1 TP316L

Round Automotive 1 inch round steel tubing ASTM A358 1.4404 Class 1 TP316L
Round Automotive 1 inch round steel tubing ASTM A358 1.4404 Class 1 TP316L Round Automotive 1 inch round steel tubing ASTM A358 1.4404 Class 1 TP316L Round Automotive 1 inch round steel tubing ASTM A358 1.4404 Class 1 TP316L Round Automotive 1 inch round steel tubing ASTM A358 1.4404 Class 1 TP316L

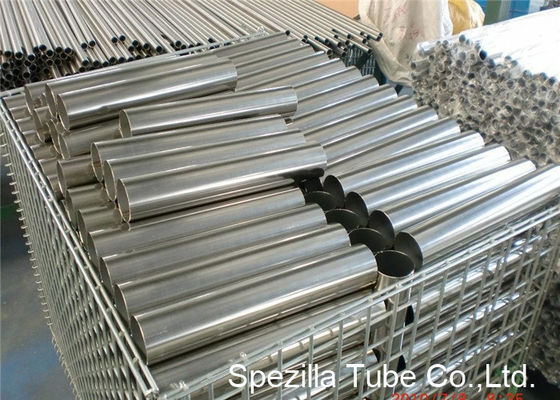

Large Image :  Round Automotive 1 inch round steel tubing ASTM A358 1.4404 Class 1 TP316L

Product Details:
Place of Origin: CHINA
Brand Name: SPEZILLA
Certification: ISO9001:2008, PED97/23/EC, AD2000-WO
Model Number: TP304/304L, TP316/316L
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: PLY-WOODEN CASE / BUNDLE WITH PLASTIC CAP
Delivery Time: 10 DAYS
Payment Terms: T/T or L/C
Supply Ability: 1000 TONS / MONTH
Detailed Product Description
Product Name: Stainless Steel Pipe Pipe Spec.: ASTM A358
Steel Type: STAINLESS STEEL Steel Grade: TP316L 1.4404
Dimension Range: 1/2'' - 24'' WT: 1.0-3.0mm
Length: 20ft Test Method: EDDY CURRENT
Production: EFW WELDED Shape: Round
Package: Wooden Case
High Light:

ss round tube

,

food grade stainless tubing

Round Automotive 1 inch round steel tubing ASTM A358 1.4404 Class 1 TP316L



The 316L stainless steel round tube is an austenitic metal, meaning that it doesn’t hold or attract magnets. This makes it a popular choice for moving parts and instruments. This product is widely used in food, chemical, paper, dye, marine and pharmaceutical industries. It is made with high amounts of chromium, molybdenum and nickel, which makes it much tougher and more resistant to corrosion than 304 steelers. It is known as marine grade steel because it doesn’t corrode when used for parts that are placed in warm sea waters. This is why it’s commonly used for boat fittings and valves. 316L stainless steel can also be used in chloride environments and high heat.



316L alloys have great weldability, machinability and formability. It can’t be made hardenable using heat treatment. Annealing can be done after forging and cold working this metal, which should be done at temperatures between 1900 and 2100 degrees F. Afterward, it should be rapidly quenched. This grade of metal can be deep drawn. Other methods of cold working can be used as well, such as swaging, roll forming, bending and cold heading. In order to relieve stresses caused by severe cold forming, annealing should be used.



Welding this metal can be performed using all standard fusion methods. Filler metals can be used for welding 316L metal. Post-weld annealing isn’t needed for the heavy welded sections, like with the 316 grade of steel. When annealing this metal, it’s important to watch for distortion and warping. Forging can be done at temperatures between 2100 and 2300 degrees F, but no lower than 1700 degrees F. A final anneal should be done to maintain high corrosion resistance after forging is complete.



Welded Stainless Steel Pipe

  • ASTM A312
  • Grades 304/L and 316/L
  • Sizes 1/4" Thru 36"
  • Schedules 10s, 20, 40s, 80s

Seamless Stainless Steel Pipe

  • ASTM A312
  • Grades 304/L and 316/L
  • Sizes 1/4" Thru 20”
  • Schedules 10s, 40s, 80s, 160, and XXH, True 40, True 80



Grade 316L is very similar to 316 stainless steel. It is still considered a molybdemum-bearing grade and has properties that make it highly resistant to corrosive degradation. 316L grade stainless steel differs from 316 in that contain lower levels of carbon. The decreased level of carbon in this stainless steel makes this grade immune from sensitisation or grain boundary carbide precipitation. Because of this unique property, Grade 316L tends to be commonly used in heavy gauge welding situations. Additionally the lower carbon levels make this grade easier to machine. Like 316 stainless steel, 316L because of its austenitic structure is extremely tough, even in the most extreme of temperatures.



Chemical Formula



Carbon .03%, Manganese 2.00%, Phosphorus .045%, Sulfur .030%, Silicon .75%, Chromium 16-18.00%, Nickel 10.00-14.00%, Molybdenum 2.00-3.00%, Nitrogen-.10%, Iron- Balanced



Features



  • 316L Stainless Steel is easily welded by all commercial processes. If forging or hammer welding it is recommended to anneal after these processes to help avoid unwarranted corrosion.
  • Not hardenable by heat treatment, however often cold working the alloy has proven to increase hardness and tensile strength.
  • Sometimes know by industry professionals as marine grade stainless for its uncanny ability to resist pitting corrosion.



Applications



316L Grade Stainless Steel is one of the more common austenitic stainless steels. Because of its outstanding toughness against corrosion you can typical find 316L Stainless used in the following applications: food preparation equipment, pharmaceutical, marine, boat fittings, and medical implants (i.e- orthopaedic implants)





ASTM A312/A358, Stainless Steel Pipes



MINAL
DIAMETER NPS
OUTSIDE
DIAMETER(MM)
SCH-5S
WALL THICKNESS(MM)
SCH-10S
WALL THICKNESS(MM)
SSCH-40S
WALL THICKNESS(MM)
1/4 13.72   1.65 2.24
3/8 17.15   1.65 2.31
1/2 21.34 1.65 2.11 2.77
3/4 26.67 1.65 2.11 2.87
1 33.40 1.65 2.77 3.38
1 1/4 42.16 1.65 2.77 3.56
1 1/2 48.26 1.65 2.77 3.68
2 60.33 1.65 2.77 3.91
2 1/2 73.03 2.11 3.05 5.16
3 88.90 2.11 3.05 5.49
3 1/2 101.60 2.11 3.05 5.74
4 114.30 2.11 3.05 6.02
5 141.30 2.77 3.40 6.55
6 168.28 2.77 3.40 7.11
8 219.08 2.77 3.76 8.18
10 273.05 3.40 4.19 9.27
12 323.85 3.96 4.57 9.53
14 355.60 3.96 4.78 9.53
16 406.40 4.19 4.78 9.53
18 457.20 4.19 4.78 9.53
20 508.00 4.78 5.54 9.53
22 558.80 4.78 5.54
24 609.60 5.54 6.35 9.53
30 762.00 6.35 7.92

32

|

80

812.8

|

2032.0

(Thickness):6.35~30mm

Nominal diameter and wall thickness subject to the approval of vendor and purchaser
