Gr 1 Titanium Welded Tube , Seamless Titanium Tubing Good Ductility Easy Clean

China Gr 1 Titanium Welded Tube , Seamless Titanium Tubing Good Ductility Easy Clean supplier
Gr 1 Titanium Welded Tube , Seamless Titanium Tubing Good Ductility Easy Clean supplier Gr 1 Titanium Welded Tube , Seamless Titanium Tubing Good Ductility Easy Clean supplier Gr 1 Titanium Welded Tube , Seamless Titanium Tubing Good Ductility Easy Clean supplier Gr 1 Titanium Welded Tube , Seamless Titanium Tubing Good Ductility Easy Clean supplier

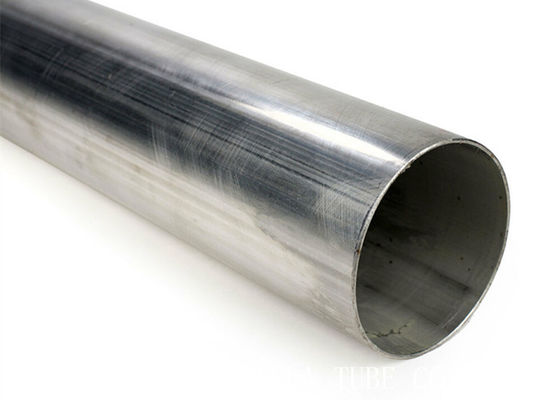

Large Image :  Gr 1 Titanium Welded Tube , Seamless Titanium Tubing Good Ductility Easy Clean

Product Details:

Place of Origin: CHINA
Brand Name: SPEZILLA
Certification: ISO9001:2008
Model Number: GR.2

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: WOODEN BOX
Delivery Time: 15 DAYS
Payment Terms: L/C, T/T
Supply Ability: 100 TONS PER MONTH
Contact Now
Detailed Product Description
OD: 5/8" 3/4" 1" WT: 0.889MM 1.00MM
Type: Seamless Tube Standard: ASTM B338
Inspection Certificate: EN10204 3.1 Production: COLD DRAWN

Gr.1 Heat Exchanger Titanium Tube Welded ASME SB337 Titanium Pipe



Chemistry Typical:



Titanium: Balance


Iron: 0.20 max


Oxygen: 0.18 max


Carbon: 0.08 max


Nitrogen: 0.03 max


Hydrogen: 0.015 max


Residuals each 0.10 max, total 0.40 max



Physical Properties:



Density, 0.163 lbs/in³ , 4.51 g/cm³



Mean Coefficient of Thermal Expansion, in/in/°F (mm/m/°C):


70- 212°F (20- 100°C): 4.78 x 10-6 (8.6)



Thermal Conductivity: BTU-in/h-ft-°F (W/m-°K):


At 70°F (21°C): 111 (16)



Modulus of Elasticity, ksi (MPa)


15.2 x 10³ (105 x 10³) in tension



Melting Point : 3040°F (1670°C)



Titanium seamless & welded tubing has double the strength of aluminium & ASMESB338 Titanium Tube is about 60% denser than aluminium. Titanium NCF Tubes is a silvered colored metal with low density and high strength. Titanium Micro Tubes are strong and lightweight making them ideal for automotive, aerospace, military and industrial applications. ASTM B338 Titanium Alloy boiler tubes is considered to be one of the strongest metals. These applications range from medical implants to airplanes and ships. Pure Titanium condenser tube is strong and corrosive resistant.

Grade 1:



Grade 1 titanium is the first of four commercially pure titanium grades. It is the softest and most ductile of these grades. It possesses the greatest formability, excellent corrosion resistance and high impact toughness.



Because of all these qualities, Grade 1 is the material of choice for any application where ease of formability is required and is commonly available as titanium plate and tubing. These include:



Chemical processing



Chlorate manufacturing



Dimensional stable anodes



Desalination



Architecture



Medical industry



Marine industry



Automotive parts



Airframe structure




Titanium grade 2 is a commercially pure titanium and the most commonly used type of titanium for industrial applications. The alloy is used primarily for its corrosion resistance to pitting, crevice and cavitations corrosion, erosion and stress corrosion cracking in salt water, and a broad range of acids, alkalis and industrial chemicals. Titanium is a low density material with a high strength to weight ratio.



Characteristics:


Excellent resistant to oxidizing or mildly reducing media


Good impact properties at low temperatures


Very good resistance to corrosion and erosion by seawater and marine atmospheres


Good ductility and formability


Easy weld ability

Market applications:


Petrochemical


Aerospace


Medical equipment


Oil and gas


Seawater equipment



Chemical Composition:



  Titanium Gr 2
Ti 99.2 min
C 0.1 max
Fe 0.3 max
H 0.015 max
N 0.03 max
O 0.25 max



Mechanical & Physical Properties:



Density 4.5 g/cm3
Melting Point 1665 °C (3030 °F)
Tensile Strength Psi – 49900 , MPa – 344
Yield Strength (0.2%Offset) Psi – 39900 , MPa – 275
Elongation 20 %



Specifications:



Bars: ASTM B 348, ASTM F 67, ISO 5832-2
Sheets/Plates: ASTM B 265
Pipes/Tubes: ASTM B 338, ASTM B 861 oder ASTM B 862






PRODUCT O.D. W.T.
Titanium Tubes & Tubing 1/4 inches6.35 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 0.313 inches7.9502 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 3/8 inches9.525 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 1/2 inches12.70 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 5/8 inches15.875 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 3/4 inches19.05 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 1 inches25.40 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 1 1/4 inches31.75 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 1 1/2 inches38.10 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 2 inches50.80 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 2.500 inches63.5 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 3 inches76.20 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 3 1/2 inches88.90 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 4 inches101.6 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 4.500 inches114.3 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 5.000 inches127 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 5.500 inches139.7 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 6.000 inches152.4 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 6.500 inches165.1 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 7.000 inches177.8 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 7.500 inches190.5 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 8.000 inches203.2 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 8.500 inches215.9 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 9.000 inches228.6 mm 0.035 inches0.8890 mm




Name ASTM B338 GR. 2 SEAMLESS TITANIUM PIPE
Standard ASTM B338 / ASME SB338, ASTM B337 / ASME SB337, ASTM B861 / ASME SB861
Material Gr.1, Gr.2, Gr.7, Gr.9, Gr.12, Gr.16 etc.
Type Seamless / SML
O.D 6-114.3mm
W.T 0.4-10mm
Length 1000-38000mm
Technique Cold Finished (Cold Drawing and Cold Rolling)
Ends PE/Plain Ends, BE/Beveled Ends
Surface Treatment Pickled, Passivation
Heat Treatment Condition Solution Annealing and water rapid quenched, Bright Annealing
Test Requirement Eddy Current Test, Hydrostatic Test, UT, Penetrant Test, Air underwater pressure Test,
PMI Test, Spectro Test, Intergranular Corrosion Test, Sharpy Impact Test, Hardness Test, Tension Test (Elongation, Yield Strength, Tensile Strength), Flarring Test etc.
Application Heat exchanger, boiler, condenser, air cooler, superheater, evaporator etc.
Certificate ISO9001:2008, PED/97/23/EC and China Pressure Vessel Pipeline Manufacturing License(A1 & A2)
Capacity 3000 tons/year
Package In bundles, plywood cases, wooden cases with water-proof package, etc.
Product Origin China
Trade Terms FOB, CIF, CFR, DDP, EXW, etc.
Payment Terms T/T, L/C
Nearest Port Shanghai
Main Market Domestic Market, North America, Western Europe, South America, Eastern Asia etc.
