Heat Exchanger Welded Titanium Tubing Gr.2 UNS R50400 ASME SB338 Standard

Heat Exchanger Welded Titanium Tubing Gr.2 UNS R50400 ASME SB338 Standard
Heat Exchanger Welded Titanium Tubing Gr.2 UNS R50400 ASME SB338 Standard Heat Exchanger Welded Titanium Tubing Gr.2 UNS R50400 ASME SB338 Standard Heat Exchanger Welded Titanium Tubing Gr.2 UNS R50400 ASME SB338 Standard Heat Exchanger Welded Titanium Tubing Gr.2 UNS R50400 ASME SB338 Standard

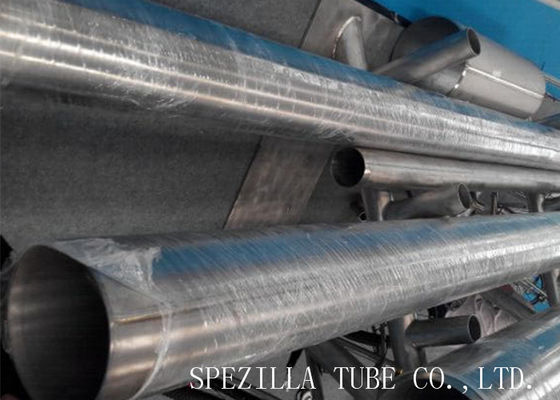

Large Image :  Heat Exchanger Welded Titanium Tubing Gr.2 UNS R50400 ASME SB338 Standard

Product Details:
Place of Origin: CHINA
Brand Name: SPEZILLA
Certification: ISO9001:2008
Model Number: GR.2
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: WOODEN BOX
Delivery Time: 15 DAYS
Payment Terms: L/C, T/T
Supply Ability: 100 TONS PER MONTH
Detailed Product Description
OD: 3/4" WT: 0.889MM
Type: Cold Drawn Tube Standard: ASTM B338
Inspection Certificate: EN10204 3.1 Production: COLD DRAWN
High Light:

titanium tubing

,

titanium round tube

ASME SB338 Gr.2 Seamless Titanium Tube UNS R50400 Heat Exchanger Titanium Tubing



Titanium is the ninth most abundant element in the earth's crust and the fourth most commonly used structural metal. In nature, it occurs only as a mineral (ore) in combination with oxygen or iron (rutile, TiO2, or ilmenite, FeTiO3).

Titanium is a lightweight material whose density is approximately 60 percent of steel's and 50 percent of nickel and copper alloys'. It was recognized in the 1950s as a desirable material for aerospace applications—especially airframe and engine components. In the 1960s and 1970s, titanium was considered for use in vessels and heat exchangers in corrosive chemical process environments. Typical applications included marine, refinery, pulp and paper, chlorine and chlorate production, hydrometallurgy, and various other oxidizing and mildly reducing chemical services.



Titanium has low density, slightly over half that of steel, Alloys with additives such as aluminum and vanadium will get high strength. it makes the titanium use in many industries and markets.





Titanium seamless & welded tubing has double the strength of aluminium & ASMESB338 Titanium Tube is about 60% denser than aluminium. Titanium NCF Tubes is a silvered colored metal with low density and high strength. Titanium Micro Tubes are strong and lightweight making them ideal for automotive, aerospace, military and industrial applications. ASTM B338 Titanium Alloy boiler tubes is considered to be one of the strongest metals. These applications range from medical implants to airplanes and ships. Pure Titanium condenser tube is strong and corrosive resistant.


Name ASTM B338 GR. 2 SEAMLESS TITANIUM PIPE
Standard ASTM B338 / ASME SB338, ASTM B337 / ASME SB337, ASTM B861 / ASME SB861
Material Gr.1, Gr.2, Gr.7, Gr.9, Gr.12, Gr.16 etc.
Type Seamless / SML
O.D 6-114.3mm
W.T 0.4-10mm
Length 1000-38000mm
Technique Cold Finished (Cold Drawing and Cold Rolling)
Ends PE/Plain Ends, BE/Beveled Ends
Surface Treatment Pickled, Passivation
Heat Treatment Condition Solution Annealing and water rapid quenched, Bright Annealing
Test Requirement Eddy Current Test, Hydrostatic Test, UT, Penetrant Test, Air underwater pressure Test,
PMI Test, Spectro Test, Intergranular Corrosion Test, Sharpy Impact Test, Hardness Test, Tension Test (Elongation, Yield Strength, Tensile Strength), Flarring Test etc.
Application Heat exchanger, boiler, condenser, air cooler, superheater, evaporator etc.
Certificate ISO9001:2008, PED/97/23/EC and China Pressure Vessel Pipeline Manufacturing License(A1 & A2)
Capacity 3000 tons/year
Package In bundles, plywood cases, wooden cases with water-proof package, etc.
Product Origin China
Trade Terms FOB, CIF, CFR, DDP, EXW, etc.
Payment Terms T/T, L/C
Nearest Port Shanghai
Main Market Domestic Market, North America, Western Europe, South America, Eastern Asia etc.




Titanium grade 2 is a commercially pure titanium and the most commonly used type of titanium for industrial applications. The alloy is used primarily for its corrosion resistance to pitting, crevice and cavitations corrosion, erosion and stress corrosion cracking in salt water, and a broad range of acids, alkalis and industrial chemicals. Titanium is a low density material with a high strength to weight ratio.



Characteristics:


Excellent resistant to oxidizing or mildly reducing media


Good impact properties at low temperatures


Very good resistance to corrosion and erosion by seawater and marine atmospheres


Good ductility and formability


Easy weld ability

Market applications:


Petrochemical


Aerospace


Medical equipment


Oil and gas


Seawater equipment



Chemical Composition:



  Titanium Gr 2
Ti 99.2 min
C 0.1 max
Fe 0.3 max
H 0.015 max
N 0.03 max
O 0.25 max



Mechanical & Physical Properties:



Density 4.5 g/cm3
Melting Point 1665 °C (3030 °F)
Tensile Strength Psi – 49900 , MPa – 344
Yield Strength (0.2%Offset) Psi – 39900 , MPa – 275
Elongation 20 %



Specifications:



Bars: ASTM B 348, ASTM F 67, ISO 5832-2
Sheets/Plates: ASTM B 265
Pipes/Tubes: ASTM B 338, ASTM B 861 oder ASTM B 862






PRODUCT O.D. W.T.
Titanium Tubes & Tubing 1/4 inches6.35 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 0.313 inches7.9502 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 3/8 inches9.525 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 1/2 inches12.70 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 5/8 inches15.875 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 3/4 inches19.05 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 1 inches25.40 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 1 1/4 inches31.75 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 1 1/2 inches38.10 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 2 inches50.80 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 2.500 inches63.5 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 3 inches76.20 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 3 1/2 inches88.90 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 4 inches101.6 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 4.500 inches114.3 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 5.000 inches127 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 5.500 inches139.7 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 6.000 inches152.4 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 6.500 inches165.1 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 7.000 inches177.8 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 7.500 inches190.5 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 8.000 inches203.2 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 8.500 inches215.9 mm 0.035 inches0.8890 mm
Titanium Tubes & Tubing 9.000 inches228.6 mm 0.035 inches0.8890 mm



Heat Exchanger Welded Titanium Tubing Gr.2 UNS R50400 ASME SB338 Standard 0
