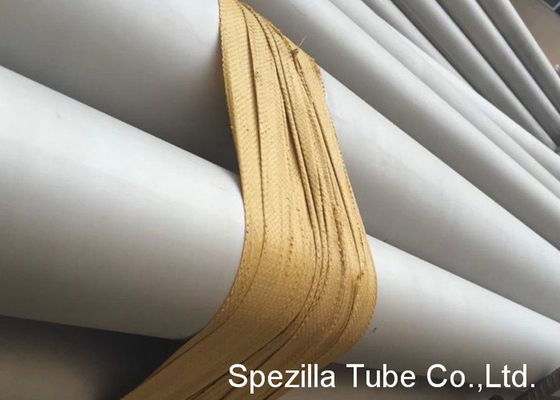

Large Image :  ANSI B36.10 Seamless Stainless Steel Pipe,Stainless Steel 304 Tube

Product Details:
Place of Origin: CHINA
Brand Name: SPEZILLA
Certification: ISO9001:2008, PED 97/23/EC
Model Number: ASTM A312
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: PLY-WOODEN CASE / BUNDLE WITH PLASTIC CAP
Delivery Time: 10 DAYS
Payment Terms: T/T or L/C
Supply Ability: 1000 TONS / MONTH
Detailed Product Description
Product Name: Stainless Steel Seamless Pipe Standard: ASTM A312/ASME SA312
Materials: 304,304L,316L O.D.: 1/2'' - 24''
W.T.: SCH5S - 80S Length MAX: 12000MM Max.
Pipe Finish: Seamless Shape: Round
High Light:

welding stainless steel tubing

,

stainless steel welded pipe

ANSI B36.10 Seamless Stainless Steel Pipe,Stainless Steel 304 Tube



SPEZILLA TUBE stocks stainless steel Seamless pipe per ASTM A 312 in 304/304L and 316/316L. We supply other stainless grades, including 304H, 316H, 309/S, 310/S, 317/L, 321/H, 347/H, 904L, 330, 254SMO, 410. In duplex grades, we can supply 2205 and 2507. Some nickel grades are also supplied.

We supply a full range of pipe schedules ranging from Sch 5 thru Double Extra Heavy. Most products are available in 20′ random length sections, but SPEZILLA can supply stainless steel seamless pipe in most stainless grades in sections exceeding 40′. All stainless steel seamless pipes can be cut to your exact requirements. Some made to order items can be produced in 2-3 weeks.



Seamless Stainless Steel Pipe Grade Specifications

Stainless Steel Seamless Pipe Specifications

ASTM A312

This specification covers seamless, straight-seam welded, and heavily cold worked welded austenitic stainless steel pipe intended for high-temperature and general corrosive service.

ASTM A358

This specification includes electric-fusion-welded austenitic chromium-nickel stainless steel pipe.

ASTM A813

This specification covers two classes of fit-up and alignment quality straight-seam single- or double-welded austenitic steel pipe intended for high-temperature and general corrosive service.

ASTM A814

This specification covers two classes of flanged and cold-bending quality cold-worked straight-seam single or double welded austenitic steel pipe intended for high-temperature and general corrosive services.





Lengths: 17′ – 24′ Random Lengths





Nominal Wall Thickness:

  • Nominal Wall Tolerance Plus 12.5%, Minus 12.5%
  • These do not conform to the American National Standard for Welded and Seamless Wrought Steel Pipe
    (ANSI B 36.10 – 1979)

NPS Designator

Outside Diameter in.

Schedule 10S in.

Schedule 40S in.

Schedule 80S in.

Schedule 160 in.

Schedule XX in.

1/4 0.540 0.065 0.088 0.119
3/8 0.675 0.065 0.091 0.126
1/2 0.840 0.083 0.109 0.147 .188 .294
3/4 1.050 0.083 0.113 0.154 .218 .308
1.0 1.315 0.109 0.133 0.179 .250 .358
1 1/4 1.660 0.109 0.140 0.191 .250 .382
1 1/2 1.900 0.109 0.145 0.200 .281 .400
2 2.375 0.109 0.154 0.218 .343 .436
2 1/2 2.875 0.120 0.203 0.276 .375 .552
3 3.500 0.120 0.216 0.300 .438 .600
3 1/2 4.000 0.120 0.226 0.318   .636
4 4.500 0.120 0.237 0.337 .534 .674
5 5.563 0.134 0.258 0.375 .625 .750
6 6.625 0.134 0.280 0.432 .719 .864
8 8.625 0.148 0.322 0.500 .906 .875
10 10.750 0.165 0.365 0.500 1.125
12 12.750 0.180 0.375 0.500 1.312
14 14.000 0.188 0.375 0.500 1.406
16 16.000 0.188 0.375 0.500 1.594

Minimum Wall Thickness on Inspection:

  • The following equation, upon which this table is based, may be applied to calculate minimum wall thicknesses from nominal wall thickness:
    • tn * 0.875 = tm
      Where:
      tn = nominal wall thickness, in. [mm], and
      tm= minimum wall thicknesses, in. [mm]
    • The wall thickness is inch-pound units is rounded to three decimal places in accordance with the rounding method of Practice E29. The wall thickness in SI units is rounded to one decimal place in accordance with the rounding method of Practice E29.
  • This table is a master table covering wall thicknesses available in the purchase of different classifications of pipe, but it is not meant to imply that all the walls listed herein are
  • necessarily obtainable for the applicable product specification.
