AISI 316L Sanitary Polished Stainless Steel Hydraulic Tubing For Food 1 1/2"X0.065"X20ft

Very competitive price and the tubes are well polished, we are very satisfied with Spezilla from our cooperation since year 2010.

—— Nathalie Gulli - Mexico

Spezilla supports our group very well, and now we are approved supplier of goverment, they are reliable and flexible! Spezilla always answers!

—— Jaime Arias - Argentina

Good quality, fast delivery, Spezilla has been supplying heat exchanger tubes for our projects since 2008, we really appreciate your support!

—— Massimiliano Rossi - Italy

I'm Online Chat Now

AISI 316L Sanitary Polished Stainless Steel Hydraulic Tubing For Food 1 1/2"X0.065"X20ft

AISI 316L Sanitary Polished Stainless Steel  Hydraulic Tubing For Food 1 1/2"X0.065"X20ft
AISI 316L Sanitary Polished Stainless Steel  Hydraulic Tubing For Food 1 1/2"X0.065"X20ft AISI 316L Sanitary Polished Stainless Steel  Hydraulic Tubing For Food 1 1/2"X0.065"X20ft AISI 316L Sanitary Polished Stainless Steel  Hydraulic Tubing For Food 1 1/2"X0.065"X20ft AISI 316L Sanitary Polished Stainless Steel  Hydraulic Tubing For Food 1 1/2"X0.065"X20ft

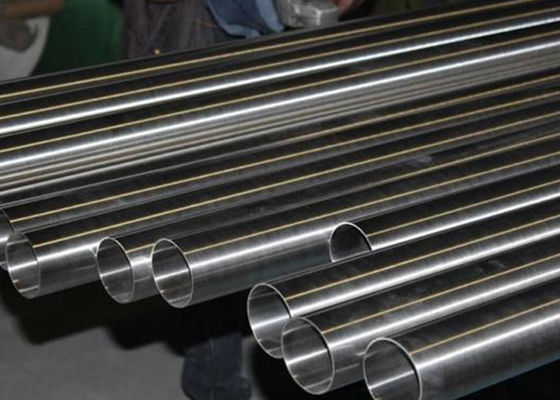

Large Image :  AISI 316L Sanitary Polished Stainless Steel Hydraulic Tubing For Food 1 1/2"X0.065"X20ft

Product Details:
Place of Origin: CHINA
Brand Name: SPEZILLA
Certification: ISO9001:2008, PED 97/23/EC
Model Number: A270-S-T
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: PLY-WOODEN CASE / BUNDLE WITH PLASTIC CAP
Delivery Time: 10 DAYS
Payment Terms: T/T or L/C
Supply Ability: 1000 TONS / MONTH
Detailed Product Description
Product Name: Stainless Steel Tube Standard: A270
Materials: TP316/316L O.D.: 25.4mm
W.T.: 1.65mm Length: 20ft
Pipe Finish: Matte Polished Shape: Round
Package: Wooden Case Application: Food/Sanitary
High Light:

austenitic stainless steel pipe

,

high pressure hydraulic pipe

AISI 316L Sanitary Polished Stainless Steel Hydraulic Tubing For Food 1 1/2"X0.065"X20ft



Stainless Steel Tubing

  • ASTM - A270 Tubing Polished
  • ASTM - A269 Tubing, Unpolished
  • 304L/316L
  • 1/2" O.D. - 8" O.D.
  • meets ASTM A270 sanitary standards

SPEZILLA offers sanitary tubing that exceeds ASTM A270 S2 specifications. It is manufactured from the finest quality stainless steel materials.

SPEZILLA offers industry-leading welded sanitary tubing along with technical expertise and unmatched service before and after the sale. We stock all standard sanitary tubing sizes ½ – 8 inch OD (12.7 – 203.2 millimeter OD) in 20-foot (6.1-meter) lengths.





Materials Our sanitary tubing is available in alloys 304/304L and 316/316L. All 316/316L tube is supplied with a sulfur content of .005-.017% as specified in ASTM A270, Supp. S2.1.1. Available in A249, A269 and A270





Surface Polish:



Surface finish is 20 u-in Ra (0.5um) ID maximum, 30 u-in Ra (0.8um) OD maximum surface roughness measured per ASME/ANSI B46.1 with the profilo-meter reading at 90 degree to the lay. Other finishes available upon request.





Various types of polishing operations are commonly used to reduce the surface roughness of stainless steel sanitary tubes used in fluid piping & related components. As the name implies, mechanical polishing involves the application of physical force on abrasive media to remove the irregularities.



Surface Roughness: Bright Annealed, Mill Finish is available for both ID/OD, Mechanical Polish, Electro Polish needs to specify either ID/OD.







Capabilities:



1. Fully Automated European Tube Production Line with Inline Annealing & Inline Eddy Current testing.



2. In house facility for Mechanical Polishing for both inside & outside tube surface.



3. All stainless steel sanitary tubings are manufactured with Enviromental Friendly Technology.



4. In house facility for increasing inner surface of stainless steel sanitary tubings with Boroscope Instruments.



SPEZILLA is leading manufacturer & suppliers of stainless steel seamless and welded tubing manufactured as per ASTM A270 standards. It is certified to the requirements of ASTM A270 standards, and most user specifications.









Size
(Tube OD)
Part Number Dimensions
304L 316L Wall ID Gauge
1/2" A270 A270 0.065 0.370 16
3/4" A270 A270 0.065 0.620 16
1 " A270 A270 0.065 0.870 16
1-1/2" A270 A270 0.065 1.370 16
2 " A270 A270 0.065 1.870 16
2 " A270 A270 0.120 1.760 11
2-1/2" A270 A270 0.065 2.370 16
3 " A270 A270 0.065 2.870 16
3 " A270 A270 0.120 2.760 11
4 " A270 A270 0.065 3.870 16
4 " A270 A2700 0.083 3.834 14
5 " A270 A270 0.083 4.834 14
6 " A270 A270 0.083 5.834 14
6 " A270 A270 0.109 5.782 12
8 " A270 A270 0.109 7.782 12
10 " A778 A778 0.109 9.782 12
12 " A778 A778 0.109 11.782 12

erial ASTM A270 Chemical Composition % Max
C Mn P S Si Cr Ni Mo N B Nb Ti
TP304 0.08 2.00 0.045 0.030 1.00 18.0-20.0 8.0-11.0 ^ ^ ^ . ^
TP304L 0.035 2.00 0.045 0.030 1.00 18.0-20.0 8.0-12.0 ^ ^ ^ ^
TP316 0.08 2.00 0.045 0.030 1.00 16.0-18.0 10.0-14.0 2.00-3.00 ^ ^ ^
TP316L 0.035 D 2.00 0.045 0.030 1.00 16.0-18.0 10.0-15.0 2.00-3.00 ^ ^ ^
TP321 0.08 2.00 0.045 0.030 1.00 17.0-19.0 9.0-12.0 ^ ^ ^ 5C -0.70
TP347 0.08 2.00 0.045 0.030 1.00 17.0-19.0 9.0-12.0     10C -1.10 ^

AISI 316L Sanitary Polished Stainless Steel  Hydraulic Tubing For Food 1 1/2"X0.065"X20ft 0
