A270 TP316L Stainless Steel Sanitary Pipe Fittings 180 Grit Outside / Inside Polished

A270 TP316L Stainless Steel Sanitary Pipe Fittings 180 Grit Outside / Inside Polished
A270 TP316L Stainless Steel Sanitary Pipe Fittings 180 Grit Outside / Inside Polished A270 TP316L Stainless Steel Sanitary Pipe Fittings 180 Grit Outside / Inside Polished A270 TP316L Stainless Steel Sanitary Pipe Fittings 180 Grit Outside / Inside Polished A270 TP316L Stainless Steel Sanitary Pipe Fittings 180 Grit Outside / Inside Polished

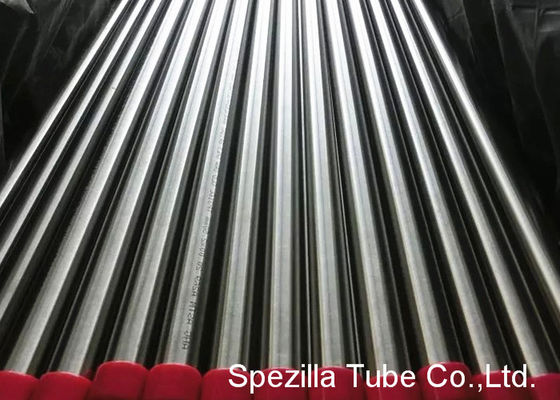

Large Image :  A270 TP316L Stainless Steel Sanitary Pipe Fittings 180 Grit Outside / Inside Polished

Product Details:
Place of Origin: CHINA
Brand Name: SPEZILLA
Certification: ISO9001:2008, PED 97/23/EC
Model Number: A270-S-T
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: PLY-WOODEN CASE / BUNDLE WITH PLASTIC CAP
Delivery Time: 10 DAYS
Payment Terms: T/T or L/C
Supply Ability: 1000 TONS / MONTH
Detailed Product Description
Product Name: Stainless Steel Tube Standard: ASTM A270/ASME SA270
Materials: TP316L,AISI316L O.D.: 1/2",3/4",1"
W.T.: 1.5mm,1.65mm,2.0mm Length: 20ft
Pipe Finish: Matte Polished Shape: Round
Package: Wooden Case Application: Food
High Light:

austenitic stainless steel pipe

,

steel hydraulic pipe

A270 TP316L Stainless Steel Seamless Sanitary tube 180 grit outside & Inside polished



Description:



Spezilla understand the need of cleanability and sterilibility in the Pharma / Biotech / Food / Dairy / Beverage process & works to give total solutions for the best surface finish & welding qualiry. To ensure complete drainability in the system our stainless steel sanitary tubings are manufactured to perfiection with the help of best infrastructure & raw materials.





Capabilities:



1. Fully Automated European Tube Production Line with Inline Annealing & Inline Eddy Current testing.



2. In house facility for Mechanical Polishing for both inside & outside tube surface.



3. All stainless steel sanitary tubings are manufactured with Enviromental Friendly Technology.



4. In house facility for increasing inner surface of stainless steel sanitary tubings with Boroscope Instruments.



SPEZILLA is leading manufacturer & suppliers of stainless steel seamless and welded tubing manufactured as per ASTM A270 standards. It is certified to the requirements of ASTM A270 standards, and most user specifications.





Materials Our sanitary tubing is available in alloys 304/304L and 316/316L. All 316/316L tube is supplied with a sulfur content of .005-.017% as specified in ASTM A270, Supp. S2.1.1. Available in A249, A269 and A270





Surface Polish:



Surface finish is 20 u-in Ra (0.5um) ID maximum, 30 u-in Ra (0.8um) OD maximum surface roughness measured per ASME/ANSI B46.1 with the profilo-meter reading at 90 degree to the lay. Other finishes available upon request.





Various types of polishing operations are commonly used to reduce the surface roughness of stainless steel sanitary tubes used in fluid piping & related components. As the name implies, mechanical polishing involves the application of physical force on abrasive media to remove the irregularities.



Surface Roughness: Bright Annealed, Mill Finish is available for both ID/OD, Mechanical Polish, Electro Polish needs to specify either ID/OD.






Size
(Tube OD)
Part Number Dimensions
304L 316L Wall ID Gauge
1/2" A270 A270 0.065 0.370 16
3/4" A270 A270 0.065 0.620 16
1 " A270 A270 0.065 0.870 16
1-1/2" A270 A270 0.065 1.370 16
2 " A270 A270 0.065 1.870 16
2 " A270 A270 0.120 1.760 11
2-1/2" A270 A270 0.065 2.370 16
3 " A270 A270 0.065 2.870 16
3 " A270 A270 0.120 2.760 11
4 " A270 A270 0.065 3.870 16
4 " A270 A2700 0.083 3.834 14
5 " A270 A270 0.083 4.834 14
6 " A270 A270 0.083 5.834 14
6 " A270 A270 0.109 5.782 12
8 " A270 A270 0.109 7.782 12
10 " A778 A778 0.109 9.782 12
12 " A778 A778 0.109 11.782 12




Dimensional Tolerances ASTM A270 Stainless Steel Sanitary Pipe
Size OD Nominal Wall Outside Diameter(MM) Length Wall
1/2''(12.7) 0.065''(1.65)/0.049''(1.25) +/-0.005(0.13) +1/8''(3.18)/-0 +/-10.0%
3/4''(19.05) 0.065''(1.65)/0.049''(1.25) +/-0.005(0.13) +1/8''(3.18)/-0 +/-10.0%
1''(25.4) 0.065''(1.65)/0.049''(1.25) +/-0.005(0.13) +1/8''(3.18)/-0 +/-10.0%
1-1/2''(38.1) 0.065''(1.65)/0.049''(1.25) +/-0.008(0.20) +1/8''(3.18)/-0 +/-10.0%
2''(50.8) 0.065''(1.65)/0.049''(1.25) +/-0.008(0.20) +1/8''(3.18)/-0 +/-10.0%
2-1/2''(63.5) 0.065''(1.65) +/-0.010(0.25) +1/8''(3.18)/-0 +/-10.0%
3''(76.2) 0.065''(1.65) +/-0.010(0.25) +1/8''(3.18)/-0 +/-10.0%
4''(101.6) 0.083''(2.11) +/-0.015(0.38) +1/8''(3.18)/-0 +/-10.0%
6''(152.4) 0.083''(2.11) +/-0.030(0.76) +3/16"(5.00)/-0 +/-10.0%
6''(152.4) 0.109''(2.77) +/-0.030(0.76) +3/16"(5.00)/-0 +/-10.0%
8''(203.2) 0.109''(2.77) +/-0.050(1.25) +3/16"(5.00)/-0 +/-10.0%

A270 TP316L Stainless Steel Sanitary Pipe Fittings 180 Grit Outside / Inside Polished 0
