Mechanically Polished Stainless Steel Tubing A270-BPE 316L For Pharmaceutical

China Mechanically Polished Stainless Steel Tubing A270-BPE 316L For Pharmaceutical supplier
Mechanically Polished Stainless Steel Tubing A270-BPE 316L For Pharmaceutical supplier Mechanically Polished Stainless Steel Tubing A270-BPE 316L For Pharmaceutical supplier Mechanically Polished Stainless Steel Tubing A270-BPE 316L For Pharmaceutical supplier Mechanically Polished Stainless Steel Tubing A270-BPE 316L For Pharmaceutical supplier

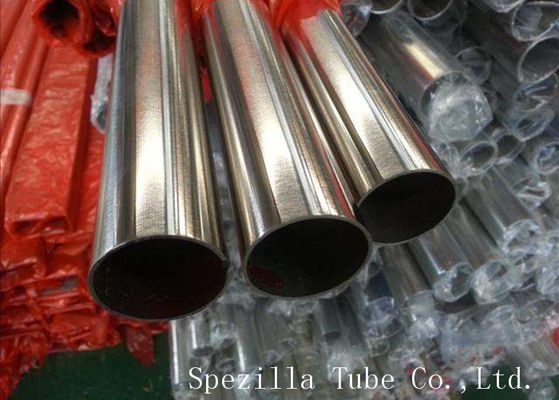

Large Image :  Mechanically Polished Stainless Steel Tubing A270-BPE 316L For Pharmaceutical

Product Details:

Place of Origin: CHINA
Brand Name: SPEZILLA
Certification: ISO9001:2008, PED 97/23/EC
Model Number: A270-T

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: PLY-WOODEN CASE / BUNDLE WITH PLASTIC CAP
Delivery Time: 10 DAYS
Payment Terms: T/T or L/C
Supply Ability: 1000 TONS / MONTH
Contact Now
Detailed Product Description
Materials: TP316L O.D.: 3/4",1"
W.T.: 1.5mm,1.65mm Length: 20ft
Pipe Finish: Matte Polished Standard: BPE A270

A270-BPE 316L High Purity Stainless Steel Tubing Mechanically polished for pharmaceutical



ASME BPE and ASTM A270 specifications, this high quality tubing is 100% bore-scoped and mechanically polished on both the ID and OD. Finishing processes guarantee specific ID and OD Ra values for customers application, minimizing surface anomalies. Moreover, all A270-BPE series tubing is cleaned in a Class 100 Cleanroom (Fed 209E), significantly reducing customer inspection requirements prior to installation. The finest quality stainless steel materials are made to melt criteria and formed by the manufacturering processes to assure highest weld seam integrity, to meet the most demanding applications. Our tubing is available in 1/2" (12.7 mm) to 6" (152.40 mm) OD in 20ft. (6.1 m) lengths.



SPEZILLA is leading manufacturer & suppliers of stainless steel seamless and welded tubing manufactured as per ASTM A270 standards. It is certified to the requirements of ASTM A270 standards, and most user specifications.



Materials Our sanitary tubing is available in alloys 304/304L and 316/316L. All 316/316L tube is supplied with a sulfur content of .005-.017% as specified in ASTM A270, Supp. S2.1.1. Available in A249, A269 and A270





Surface Polish:



Surface finish is 20 u-in Ra (0.5um) ID maximum, 30 u-in Ra (0.8um) OD maximum surface roughness measured per ASME/ANSI B46.1 with the profilo-meter reading at 90 degree to the lay. Other finishes available upon request.





Available Sizes:


OD from 1/2'' to 8'' (12.7MM to 203.20MM)


Wall thickness: 0.065'' to 0.083'' (1.65MM to 2.11MM)



Length: 20ft ( 6100MM)



Various types of polishing operations are commonly used to reduce the surface roughness of stainless steel sanitary tubes used in fluid piping & related components. As the name implies, mechanical polishing involves the application of physical force on abrasive media to remove the irregularities.



Surface Roughness: Bright Annealed, Mill Finish is available for both ID/OD, Mechanical Polish, Electro Polish needs to specify either ID/OD.



ASME BPE Stainless Steel Sanitary Tubing Surface Finish
Mechanically Polished Ra Max.
Surface Designation u-inch um
SF1 20 0.51
SF2 25 0.64
SF3 30 0.76
Mechanically Polished & Electrpolished
SF4 15 0.38
SF5 20 0.51
SF6 25 0.64







Size
(Tube OD)
Part Number Dimensions
304L 316L Wall ID Gauge
1/2" A270 A270 0.065 0.370 16
3/4" A270 A270 0.065 0.620 16
1 " A270 A270 0.065 0.870 16
1-1/2" A270 A270 0.065 1.370 16
2 " A270 A270 0.065 1.870 16
2 " A270 A270 0.120 1.760 11
2-1/2" A270 A270 0.065 2.370 16
3 " A270 A270 0.065 2.870 16
3 " A270 A270 0.120 2.760 11
4 " A270 A270 0.065 3.870 16
4 " A270 A2700 0.083 3.834 14
5 " A270 A270 0.083 4.834 14
6 " A270 A270 0.083 5.834 14
6 " A270 A270 0.109 5.782 12
8 " A270 A270 0.109 7.782 12
10 " A778 A778 0.109 9.782 12
12 " A778 A778 0.109 11.782 12




Dimensional Tolerances ASTM A270 Stainless Steel Sanitary Pipe
Size OD Nominal Wall Outside Diameter(MM) Length Wall
1/2''(12.7) 0.065''(1.65)/0.049''(1.25) +/-0.005(0.13) +1/8''(3.18)/-0 +/-10.0%
3/4''(19.05) 0.065''(1.65)/0.049''(1.25) +/-0.005(0.13) +1/8''(3.18)/-0 +/-10.0%
1''(25.4) 0.065''(1.65)/0.049''(1.25) +/-0.005(0.13) +1/8''(3.18)/-0 +/-10.0%
1-1/2''(38.1) 0.065''(1.65)/0.049''(1.25) +/-0.008(0.20) +1/8''(3.18)/-0 +/-10.0%
2''(50.8) 0.065''(1.65)/0.049''(1.25) +/-0.008(0.20) +1/8''(3.18)/-0 +/-10.0%
2-1/2''(63.5) 0.065''(1.65) +/-0.010(0.25) +1/8''(3.18)/-0 +/-10.0%
3''(76.2) 0.065''(1.65) +/-0.010(0.25) +1/8''(3.18)/-0 +/-10.0%
4''(101.6) 0.083''(2.11) +/-0.015(0.38) +1/8''(3.18)/-0 +/-10.0%
6''(152.4) 0.083''(2.11) +/-0.030(0.76) +3/16"(5.00)/-0 +/-10.0%
6''(152.4) 0.109''(2.77) +/-0.030(0.76) +3/16"(5.00)/-0 +/-10.0%
8''(203.2) 0.109''(2.77) +/-0.050(1.25) +3/16"(5.00)/-0 +/-10.0%

Mechanically Polished Stainless Steel Tubing A270-BPE 316L For Pharmaceutical
