ASTM A270 Polished SS Sanitary Tubing TP316/316L EN10204 3.1 High Toughness

China ASTM A270 Polished SS Sanitary Tubing TP316/316L EN10204 3.1 High Toughness supplier
ASTM A270 Polished SS Sanitary Tubing TP316/316L EN10204 3.1 High Toughness supplier ASTM A270 Polished SS Sanitary Tubing TP316/316L EN10204 3.1 High Toughness supplier ASTM A270 Polished SS Sanitary Tubing TP316/316L EN10204 3.1 High Toughness supplier ASTM A270 Polished SS Sanitary Tubing TP316/316L EN10204 3.1 High Toughness supplier

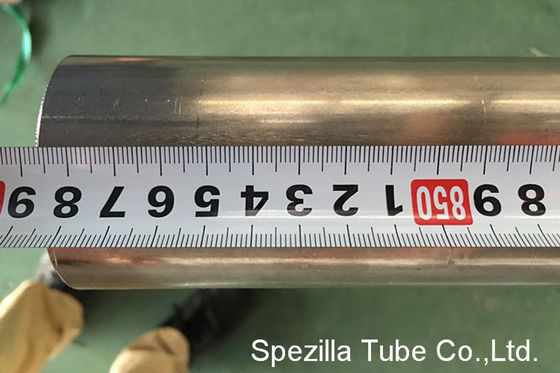

Large Image :  ASTM A270 Polished SS Sanitary Tubing TP316/316L EN10204 3.1 High Toughness

Product Details:

Place of Origin: CHINA
Brand Name: SPEZILLA
Certification: ISO
Model Number: A270

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: wooden cases/Bundle
Delivery Time: 30 days
Supply Ability: 1000Tons/Month
Contact Now
Detailed Product Description
Grade: TP316/316L Size: 6mm-101.6mm
Process: TIG Surface Finish: Polished
MTR: EN10204 3.1 Standard: ASTM A270

ASTM A270 Polished santiary tube , Austenic Stainless Steel TP316/316L welded pipe





ASTM A270 Sanitary stainless steel tubing as well sanitary stainless steel tube, meets A270 standards available in sanitary stainless steel AISI 316L, 304L or 304 from 1” to 4” sizes, inside roughness ( 32 μ'/0,8 μm ) Ra 180 grit; outside surface finishing ( 150 grit / Brushed ) acording A270. Upon Request Inside surface finishing ( 20 μ'/0,5 μm ) Ra. for ASME A270 standards. To maintain clean standards tubes are packed individually in plastic sleeves and covered with plastic caps in both ends.





Product Information:


We carry a complete line of stainless sanitary tube and fittings including clamp, weld, e-line and bevel seat end types. Sanitary products are available in 304 stainless steel and 316L stainless steel. For an overview of product offerings view our stainless steel products line card.




Tube Sizes & Tube Weights:


We offer many sizes to choose from. The chart includes outside diameter (OD), standard wall thickness and weight per foot.





Quality Control:



To assure the highest quality standards, our stainless steel sanitary pipe is subjected to extensive testing and inspection programs that meet or exceed ASTM A270/A1016/A1016M test requirements. Testing includes reverse bend, reverse flattening, and flange tests. Eddy current testing is performed on 100% of the stainless steel sanitary pipe produced.





Surface Polish:



Surface finish is 20 u-in Ra (0.5um) ID maximum, 30 u-in Ra (0.8um) OD maximum surface roughness measured per ASME/ANSI B46.1 with the profilo-meter reading at 90 degree to the lay. Other finishes available upon request.





Export Packaging:



As a final step to ensure purity standards, each tube is packaged using 2 mil poly sleeving and both ends are sealed using air tight end caps. Stainless steel sanitary pipes are packaged in protective tri-wall boxing. When specified, woode boxes and all export requirements can be provided.





Size
(Tube OD)
Part Number Dimensions
304L 316L Wall ID Gauge
1/2" A270 A270 0.065 0.370 16
3/4" A270 A270 0.065 0.620 16
1 " A270 A270 0.065 0.870 16
1-1/2" A270 A270 0.065 1.370 16
2 " A270 A270 0.065 1.870 16
2 " A270 A270 0.120 1.760 11
2-1/2" A270 A270 0.065 2.370 16
3 " A270 A270 0.065 2.870 16
3 " A270 A270 0.120 2.760 11
4 " A270 A270 0.065 3.870 16
4 " A270 A2700 0.083 3.834 14
5 " A270 A270 0.083 4.834 14
6 " A270 A270 0.083 5.834 14
6 " A270 A270 0.109 5.782 12
8 " A270 A270 0.109 7.782 12
10 " A778 A778 0.109 9.782 12
12 " A778 A778 0.109 11.782 12




Chemical Composition ASTM A270 Stainless Steel Sanitary Pipe
Elements 304L(wt%) 316L(wt%)
C Max. 0.035 0.035
Mn Max. 2.00 2.00
P Max. 0.040 0.040
S Max. 0.030 0.030
Si Max. 0.75 0.75
Ni 8.0-13.0 10.00-15.00
Cr 18.0-20.0 16.00-18.00
Mo N/A 2.0-3.0
Fe Bal. Bal.
Cu N/A N/A
N N/A N/A




ASTM A270 Polished SS Sanitary Tubing TP316/316L EN10204 3.1 High Toughness
