A213 SA213 TP310S Stianless Steel Cold Drawn heat exchanger u tube

A213 SA213 TP310S Stianless Steel Cold Drawn heat exchanger u tube
A213 SA213 TP310S Stianless Steel Cold Drawn heat exchanger u tube A213 SA213 TP310S Stianless Steel Cold Drawn heat exchanger u tube A213 SA213 TP310S Stianless Steel Cold Drawn heat exchanger u tube A213 SA213 TP310S Stianless Steel Cold Drawn heat exchanger u tube

Large Image :  A213 SA213 TP310S Stianless Steel Cold Drawn heat exchanger u tube

Product Details:
Place of Origin: CHINA
Brand Name: SPEZILLA
Certification: ISO9001:2008
Model Number: ASME SA213
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: WOODEN BOXED
Delivery Time: WITHIN 30 DAYS
Payment Terms: T/T, L/C
Supply Ability: 100 TONS / MONTH
Detailed Product Description
Tube Shape: Stainless Steel U Bend Tube Manufacturing: Seamless Cold Drawn
Standard: ASTM A213 Materials No.: TP310S
OD: 1/2'' - 2'' WT: 0.035'' - 0.083''
Surface: SOLUTION ANNEALED Shape: Round
Package: Wooden Case Application: Heat Exchanger
High Light:

u bend tube

,

aluminium extruded finned tubes

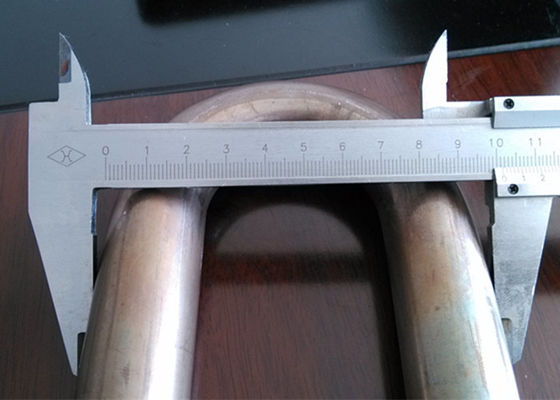

A213 SA213 TP310S Stianless Steel Cold Drawn heat exchanger u tube



310S stainless steel is a highly alloyed austenitic stainless steel, mainly used for elevated temperature applications mainly due to the advantage of their oxidation resistance. Due to its high chromium and nickel content, the general corrosion resistance of 310S is more superior to 304 or 309 in most environments. 310 stainless steel is mostly similar to grade 309, but offers greater corrosion resistance and oxidation at high temperatures.



Stainless steel 310S seamless pipes and 310S fittings are widely used for manufacturing furnace components, oil burner parts, heat exchangers and piping systems in chemical plants. In addition, 310S seamless tubes are widely used for general piping requirements across various industry verticals.



Standard Technical Range

  • OD 9.5mm - 38.1mm
  • WT up to 6.35mm
  • Bending radii 1.25 x OD up to 1700mm
  • Bends can be supplied in accordance with TEMA R / ASTM SA/A556
  • Leg length up to 15000mm
  • Heat treatment where required by electric furnance or direct resistance
  • Hydrotesting up to 10,000 psi

Additional Testing

  • Dye penetrant of 'U' bend area
  • PMI testing
  • Heat Treatment

Heat Treatment

We are equipped to carry out heat treatment of bends plus a minimum 150mm of leg.
Heat Treatment Equipment

  • Heat treatment equipment is computer controlled with the added facility of data recording.
  • An argon protective atmopshere is used inside stainless and special alloy tubes during heat treatment.
  • We can provide all types of annealing; solution annealing and stress relieving.

Stainless Steel Tube Standards:



American standards:



ASTM A249: Standard specification for welded austenitic steel boiler,superheater, heat-exchanger and condenser tubes.



ASTM A269:Standard specification for welded austenitic stainless steel tubing for general service.



ASTM A688:Standard specification for welded austenitic stainless steel feedwater heater tubes.



ASTM A554:Standard specification for welded stainless steel mechanical tubing.



ASTM A268:Specification for seamless and welded Ferritic/Martensitic stainless steel tubing for General Service



ASTM A789:Specification for seamless and welded Ferritic/Austenitic stainless steel tubing for General Service



ASTM A312:Seamless/Welded austenitic stainless steel pipe



Germanic standards:



DIN17455:General purpose welded circular stainless steel tubes



DIN17457: Welded circular austenitic stainless steel tubes subject to special requirements; technical delivery conditions



European Standard:



EN 10217-7:Welded Steel Tubes for pressure purposes-Part 7 Stainless steel tubes

310S Stainless Steel Pipes, Tube Chemical Composition

Typical Chemical Composition % (max values, unless noted)
C Mn Si P S Cr Ni Fe
0.08 max. 2.00 max. 1.50 max. 0.045 max. 0.03 max. 24.0 – 26.0 19.0 – 22.0 Balance

310S Stainless Steel Pipes, Tube Mechanical Properties

  310S
Density 8
Melting Range,℃ 1454 ℃
Elongation % 40 – 50
Tensile Strength (Mpa) 515
Yield Strngth (Mpa) 205
Hardness (Brinell) 160




Materials - U-Bent Tube
Carbon Steel SA 179 / A 179
Carbon Steel SA 210 / A 210
Carbon Steel SA 334 / A 334
Stainless Steel SA 213 / A 213
  SA249 / A249
  SA268 / A268
  SA688 / A688
Duplex Stainless Steel SA 789 / A 789
Copper & Cu Alloys SB 111 / B 111
Titanium & Ti Alloys SB 338 / B 338
For different materials please contact our sales department.
