Product Details:
Payment & Shipping Terms:
|
| Alloy Type: | INCONEL 601 | Standard: | ASME SB167 |
|---|---|---|---|
| Quality Certificate: | ISO9001:2008 | Dimension Range: | 6MM - 1016MM |
| MTR.: | EN10204 3.1 | Testing: | 100% ET |
| High Light: | nickel alloy tubing,polished nickel tubing |
||

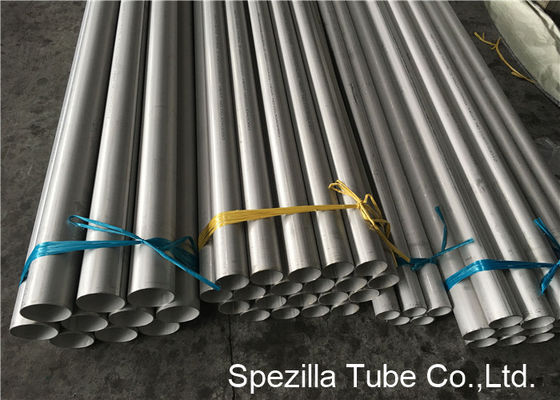

UNS N06601 High Temperature Nickel Alloys Inconel 601 Pipe ASME SB167
Description:
Inconel 601 nickel-chromium-iron alloy is a general-purpose engineering material for applications that require resistance to heat and corrosion. The outstanding characteristic of Inconel 601 is its resistance to high-temperature oxidation. The alloy also has good resistance to aqueous corrosion, has high mechanical strength, and is readily formed, machined, and welded.
The limiting chemical composition of Inconel 601 is listed in Table 1. The composition is a face-centered-cubic solid solution with a high degree of metallurgical stability. The alloy’s nickel base, in conjunction with a substantial chromium content, provides resistance to many corrosive media and high-temperature environments. Oxidation resistance is further enhanced by the aluminum content.
Inconel 601 is a nickel-chromium alloy, that is highly resistant to oxidation through 2200°F. 601 alloy develops a tightly adherent oxide scale which resists spalling even under severe thermal cycling. The alloy has good high temperature strength, and retains its ductility after long service exposure. 601 alloy has good hot corrosion resistance under oxidizing conditions. 601 alloy is not suggested for use in strongly reducing, sulfur bearing environments.
For maximum oxidation resistance, 601 alloy should be welded with matching composition 601 alloy GTAW wire. The weld fillers developed for RA 602 CA can also provide a weld which is stronger and more oxidation resistant than the 601 alloy base metal. 601 alloy is more difficult to machine than 304 stainless steel. Its machinability rating is 15-21% relative to AISI B1112 steel.
Characteristics:
The most important property of Inconel 601 is resistance to oxidation at very high temperatures up to 1250C. Even under severe conditions such as, cyclical heating and cooling. This is possible due to Inconel 601 having a tightly adherent oxide layer which is resistant against spalling.
Resistance to carburization is good, also resistant to carbon nitriding conditions.
Due to high chromium and some aluminum content, good resistance in oxidizing sulfur bearing atmospheres at elevated temperatures is demonstrated.
Chemical Composition:
| UNS Designation | N06601 |
| Inconel Alloy | 601 |
| Nickuel | 58.0 - 63.0 |
| Cromium | 21.0 - 15.0 |
| Iron | Restante |
| Alumnium | 1.0 - 1.7 |
| Carbon | 0.10 max |
| Manganese | 1.0 max. |
| Sulfur | 0.015 max. |
| Silicon | 0.50 max |
| Copper | 1.0 max. |
Applications:
Trays, baskets and fixtures used in various heat treatments such as carburizing and carbon nitriding.
Refractory anchors, strand annealing and radiant tubes, high velocity gas burners, wire mesh belts etc.
Insulating cans in ammonia reformers and catalyst support grids used in nitric acid production.
Thermal reactors in exhaust system of petrol engines.
Fabricated combustion chambers.
Tube supports and ash trays in the power generation industry.
