Payment & Shipping Terms:
|Alloy:||INCONEL 600||Specification:||ASME SB167|
|Quality:||ISO9001:2008||Dimension:||6MM - 1016MM|
|Certificate:||EN10204 3.1||Inspection:||100% ET|

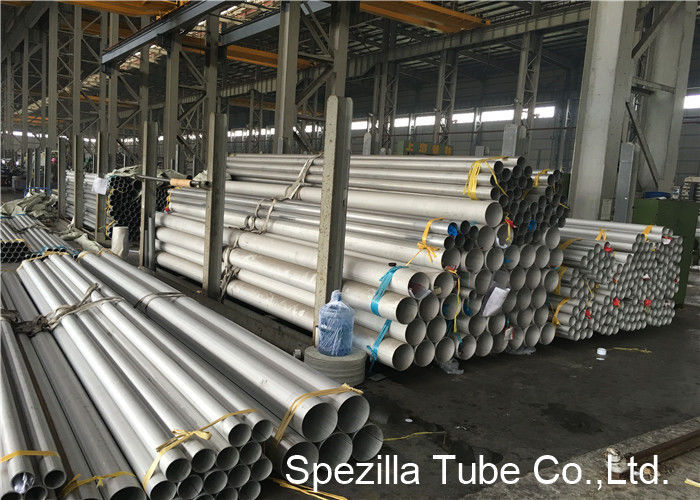

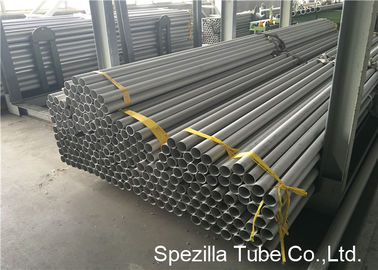

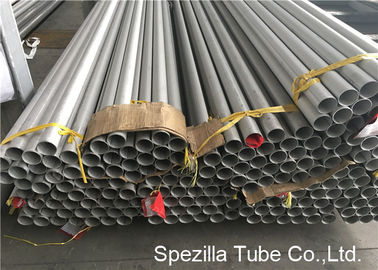

Aerospace UNS N06600 Nickel Alloy Tube , Hot Finished Seamless Tube
Inconel 600 is a nonmagnetic, nickel-based high temperature alloy possessing an excellent combination of high strength, hot and cold workability, and resistance to ordinary form of corrosion. Inconel 600 also displays good heat resistance and freedom from aging or stress corrosion throughout the annealed to heavily cold worked condition range.
Inconel 600 is a nickel-chromium alloy used for applications that require corrosion and high temperature resistance. This nickel alloy was designed for service temperatures from cryogenic to elevated temperatures in the range of 2000° F. It is non-magnetic, has excellent mechanical properties, and presents the desirable combination of high strength and good weldability under a wide range of temperatures. The high nickel content in Inconel 600 enables it to retain considerable resistance under reducing conditions, makes it resistant to corrosion by a number of organic and inorganic compounds, gives it excellent resistance to chloride-ion stress-corrosion cracking and also provides excellent resistance to alkaline solutions. Typical applications of this nickel alloy include the chemical, pulp and paper, aerospace, nuclear engineering and heat treating industries.
Resistant to a wide range of corrosive media.
Virtually immune to chlorine ion stress corrosion cracking
Excellent mechanical properties
High strength and good weldability under a wide range of temperatures
Barge and tank truck liners, carburizing atmospheres, ethylene dichloride crackers, furnace trays, mufflers, hangers, gasoline stabilizer production, MgCl2 evaporates, phenol condensers, soap manufacture, titanium dioxide, vegetable and fatty acid vessels
Heat treating industry
Pulp and paper industry
Gas turbine components
UNS N06600, W. Nr 2.4816, AMS 5540 Sheet, Strip and Plate, AMS 5665 Bar, Forgings and Rings, AMS 5580 Seamless Tubing, ASTM B168 Plate, ASTM B166 Bar, ASTM B167 Seamless Pipe, ASTM B163 Seamless Tube, ASTM B517 Weld Pipe, ASTM B516 Weld Tube, ASTM B564 Forging, MIL-N-22986, MIL-N-23338, MIL-N-6710, QQ-W-390, MIL-N-15721, MIL-N-22987, MIL-N-23229, MIL-N-6840, NA14
|Pipe Smls||Pipe Welded||Tube Smls||Tube Welded||Sheet/Plate||Bar||Forging||Fitting||Wire|
Typical room temperature Tensile Properties of Annealed Material
|Product Form||Condition||Tensile (ksi)||.2% Yield (ksi)||Elongation (%)||Hardness (HRB)|
|Rod & Bar||Cold-Drawn||80-100||25-50||35-55||65-85|
|Rod & Bar||Hot-Finished||80-100||30-50||35-55||65-85|
|Tube & Pipe||Hot-Finished||75-100||25-50||35*55||-|
|Tube & Pipe||Cold-Drawn||80-100||25-50||35-55||88 Max|
