Bright Annealed Precision small diameter stainless steel tubing D4/T3 OD10 X 1.0MM 1.4404

China Bright Annealed Precision small diameter stainless steel tubing D4/T3 OD10 X 1.0MM 1.4404 supplier
Bright Annealed Precision small diameter stainless steel tubing D4/T3 OD10 X 1.0MM 1.4404 supplier Bright Annealed Precision small diameter stainless steel tubing D4/T3 OD10 X 1.0MM 1.4404 supplier Bright Annealed Precision small diameter stainless steel tubing D4/T3 OD10 X 1.0MM 1.4404 supplier Bright Annealed Precision small diameter stainless steel tubing D4/T3 OD10 X 1.0MM 1.4404 supplier

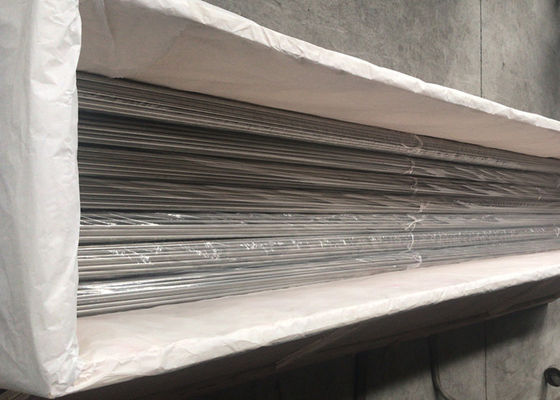

Large Image :  Bright Annealed Precision small diameter stainless steel tubing D4/T3 OD10 X 1.0MM 1.4404

Product Details:

Place of Origin: CHINA
Brand Name: SPEZILLA
Certification: ISO9001, TS16949, PED, AD2000
Model Number: WLD

Payment & Shipping Terms:

Minimum Order Quantity: 500KGS
Price: NEGOCIATION
Packaging Details: WOODEN BOXED
Delivery Time: Ex-Mill 15 - 30DAYS
Payment Terms: T/T, L/C
Supply Ability: 100TONS/MONTH
Contact Now
Detailed Product Description
Product Name: Precision Stainless Steel 316L Tubing Material Grade: 1.4404/316L
Shape: Round Size Range: 6.00 - 38.10MM
Specification: EN10217-7 Finishing Options: Bright Annealing, Pickling, Polishing, Custom Cutting
Test Certificate: EN10204 3.1 Packaging: Wooden Box, Bundled, Export Packaging Available
Quality Assurance: 100% ET

Bright Annealed Precision small diameter stainless steel tubing D4/T3 OD10 X 1.0MM 1.4404



Our product range in 1.4404 (316L) are Welded Precision Stainless Steel Tubing.



Item Code: SPW-EN10217-7-1.4404
Tube OD.: 10MM
Wall: 1.0MM
Length: 6000MM
Material: 1.4404
Standard: EN10217-7
Finish: BA / Bright Annealed.
Type: Welded
Certification: ISO9001:2015
Mill Test Certificate: EN10204 3.1
Packing: Sleeved, Wooden Boxed




Description:



1.4404, is also known as 316L stainless steel, has a lower carbon content in it as compared with its family grade 1.4401 steel. Although 1.4404 has a lower carbon content, it is very much alike to 1.4401 in most of the commercial and industrial applications. Importantly the cost of both the related grades are also nearly the same, and both last long, with incredible properties of corrosion resistant, and a great choice for stress centric usages. 1.4404, in contrast, is a great choice for consumption where a lot of welding is required as 1.4404 is less prone to weld decay.



The austenitic stainless steel 1.4404 (316L) shows good acid resistance. Material 1.4404 (316L) is used in the chemical industry, apparatus engineering, sewage plants, and paper industry.



1.4404 is the low carbon grade of 1.4401 Steel. It shows good acid resistance. It is not susceptible to carbide precipitation at the grain boundary and therefore it is unaffected from sensitization. It is mostly used in welded parts of a greater thickness of over 0.2 inches. The austenitic microstructure also provides these stainless grades robust toughness, at lower temperatures as low as absolute zero (−273 degree Celsius).

1.4404 Stainless Steel / Spec: EN10217-7 / EN10088



Chemical Element % ( Weight )
Carbon (C) 0.0 - 0.030
Chromium (Cr) 16.50 - 18.50
Manganese (Mn) 0.0 - 2.00
Silicon (Si) 0.0 - 1.00
Phosphorous (P) 0.0 - 0.045
Sulphur (S) 0.0 - 0.015
Mo 2.00 - 2.50
Nickel (Ni) 10.00 - 13.00
Iron (Fe) Balance





Mechanical Property Value
Proof Stress 190 Min MPa
Tensile Strength 490 - 690 MPa
Elongation  40 Min %
Hardness  90 Max HRB




Available Tube Product Forms:

Straight.
Coiled.
Welded and Cold Redrawn.

Quality Assurance:

Spezilla's 1.4404 welded precision stainless steel tubes are produced acc. to the following process and inspection to assure our quality:

1. Chemical Composition Analysis Test With 100% PMI.

2. Solution Annealing / Bright Annealed.

3. 100% Hydrostatic Test and 100% Eddy Current Test

4. Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test.

5. Impact Test subject to Standard request.

6. Grain Size Test and Intergranular Corrosion Test.

7. Visual Test and Endoscope Test for Surface Quality Test

Typical Applications:

Heat Exchangers

Heating Elements

Instrumentation Tubing


Typical Manufacturing Specifications:

EN10217-7

ASTM A249
ASTM A269

Also individual customer specifications.



Bright Annealed Precision small diameter stainless steel tubing D4/T3 OD10 X 1.0MM 1.4404
