| Standard: | ASTM A268 ASME SA268 | Material Grade: | TP409L |
|---|---|---|---|
| Product: | TP409L Tube | Size Range: | OD: 4.00mm - 38.10mm; WT: 0.30mm - 3.00mm |
| Finishing Options: | Bright Annealing, Pickling, Polishing, Custom Cutting | Test Certificate: | EN10204 3.1 |
| Packaging: | Wooden Box, Bundled, Export Packaging Available | Application: | Heat Exchangers |
| High Light: | TP409L Ferritic Stainless Steel Tube,A268 Ferritic Stainless Steel Tube,TP409l stainless steel heat exchanger tube |
||

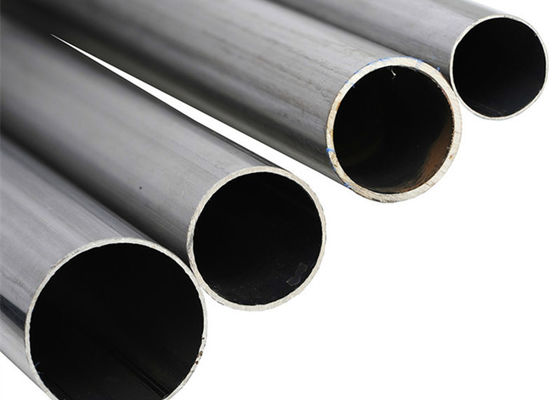

1.TP409L Tubing,ASME SA268 ASTM A268 TP409L 1.4512 Ferritic Stainless Steel Tube
Type 409L Tube is a ferritic stainless steel that has a good combination of heat resistance and corrosion resistance. Its titanium stabilized low nickel content provides for an economical metal to corrosion resistance and oxidation resistance .
More highly stabilised versions of 409 are useful where 409 has been proven marginal – these grades S40910, S40920 and S40930 are stabilised with titanium, niobium or both titanium and niobium. Used to automobile mufflers, catalytic converters, tailpipes, farm equipment, structural supports and hangers, transformer cases, diamond tread plate and shipping containers.
ASME SA268 TP409L Tubing,1.4512 Stainless Steel Tube
| Item Code: | TP409L 1.4512 |
| Tube OD.: | 3/4",1",1 1/2" |
| Wall: | 0.065'',0.083" |
| Length: | 20FT / 6096MM |
| Material: | TP409L 1.4512 |
| Standard: | ASME SA268,ASTM A268 |
| Finish: | AP / Annealed & Pickled |
| Type: | Seamless Cold Drawn |
| Certification: | ISO9001:2015 |
| Mill Test Certificate: | EN10204 3.1 |
| Packing: | Sleeved, Wooden Boxed |
Chemical Composition of ASTM A268 409 S40900 Grade and EN 10088-2 1.4512 1.4516 Stainless Steel
| Grade | – | C | Mn | Si | P | S | Cr | Ni | Ti |
| A268 409 | min. max. | – 0.08 | – 1.00 | – 1.00 | – 0.045 | – 0.030 | 10.5 11.7 | – 0.50 | 6×C-0.75 |
| TP409L | min. max. | – 0.035 | – 1.00 | – 1.00 | – 0.045 | – 0.030 | 10.5 11.7 | – 0.50 | 6×C-0.75 |
| 1.4516 | min. max. | – 0.08 | – 1.50 | – 0.70 | – 0.040 | – 0.015 | 10.5 12.5 | 0.50-1.50 | 0.05-0.35 |
| 1.4512 | min. max. | – 0.030 | – 1.00 | – 1.00 | – 0.040 | – 0.015 | 10.5 12.5 | – 0.50 | 6×(C+N)-0.65 |
ASTM A268 TP409L Tubing is a mult-purpose material can be used in many industrial applications:
• Automotive exhaust systems
• Catalytic converters
• Mufflers
Related References:
1.Superferritic Stainless Steel
2.Ferritic Stainless Steel
3.Ferritic Stainless Steel Grades Comparison Table
4.409L Heat Resistant Stainless Steel
Quality Assurance:
Spezilla's ASME SA213 seamless stainless steel tubes are produced acc. to the following process and inspection to assure our quality:
1. Chemical Composition Analysis Test With 100% PMI.
2. Solution Annealing / Bright Annealed.
3. 100% Hydrostatic Test and 100% Eddy Current Test
4. Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test.
5. Impact Test subject to Standard request.
6. Grain Size Test and Intergranular Corrosion Test.
7. Visual Test and Endoscope Test for Surface Quality Test
Our seamless stainless steel tubes undergo the following tests acc. to specifications:
Flattening Test:
One flattening test shall be made on specimens from each end of one finished tube, not the one used for the flaring test, from each lot.
Flaring Test:
One flaring test shall be made on speci- mens from each end of one finished tube, not the one used for the flattening test, from each lot.
Hydrostatic or Nondestructive Testing:
Each pipe shall be subjected to the nondestructive electric test or the hydrostatic test, the type of test to be used shall be at the option of the manufacturer, unless otherwise specified in the purchase order.
Markings:
Markings will adhere to prescribed specifications in A999/A999M and shall include the NPS or OD and schedule number or average wall thickness, heat number, and NH (when hydrotesting is not performed) and ET (when eddy-current testing is performed) or UT (when ultrasonic testing is performed). The marking shall also include the manufacturer’s private identifying mark, the marking requirement of section 12.3 on Hydrostatic or Nondestructive Electric Test, if applicable, and whether seamless (SML), welded (WLD), or heavily cold-worked (HCW). For Grades TP304H, TP316H, TP321H & TP347H, the marking shall also include the heat number and heat-treatment lot identification.
Note:
Mill test certificates will be issued according to EN10204.1
All tubes shall be supplied as per applicable ASTM A213 /A213M Specification.
