| Standard: | ASME SA312,ASME SA213 | Material Grade: | TP310 TP310S TP310H |
|---|---|---|---|
| Product: | Stainless Steel Seamless Tube | Size Range: | OD: 4.00mm - 38.10mm; WT: 0.30mm - 3.00mm |
| Finishing Options: | Bright Annealing, Pickling, Polishing, Custom Cutting | Test Certificate: | EN10204 3.1 |
| Packaging: | Wooden Box, Bundled, Export Packaging Available | Application: | Heat Exchangers |
| High Light: | SA213 316l stainless steel tubing,2.11mm Stainless Steel Tubing,astm a213 tp316l tubing |
||

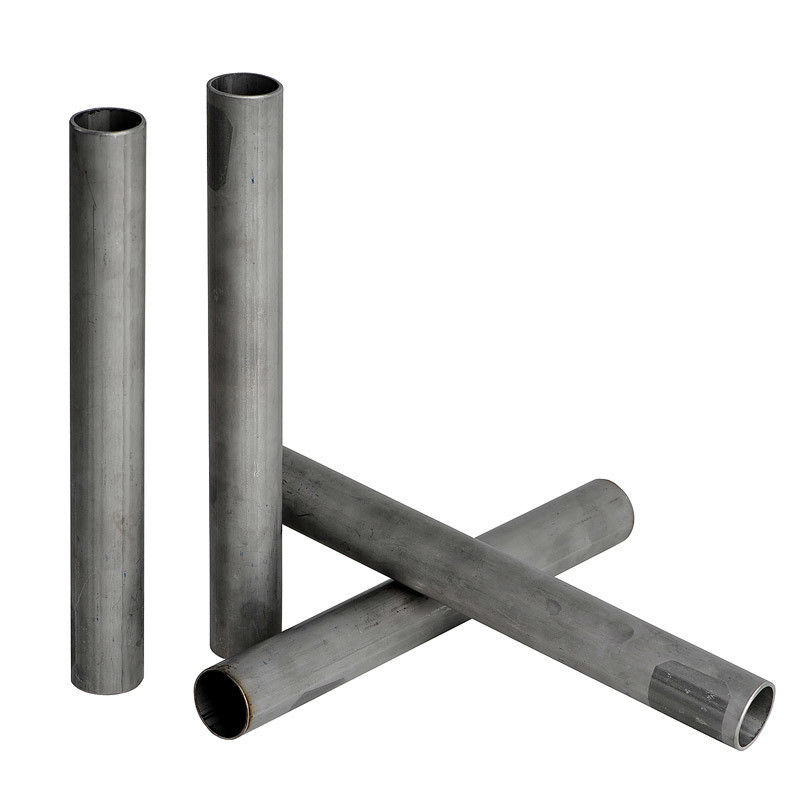

316 316L Tubing 38.1x2.11mm Seamless Tubes ASTM A213 Stainless Steel Tube
TP 316L Stainless Steel Tube A213 A269 A312 316 Stainless Steel Tubing Pipe
316L Stainless Steel is improved version of 304 Stainless Steel, with the addition of molybdenum and higher nickel content. The resultant Chemical composition of 316 gives the stainless steel much increased corrosion resistance in aggressive environment. Molybdenum make the steel more resistant to pitting and crevice corrosion in chloride-contaminated media, Sea water and acetic acid vapour. The lower rate of general corrosion in mildly corrosive environment give the steel good atmospheric corrosion resistance in polluted marine atmosphere, and because of low carbon percentage, can minimizing Intergranular corrosion attact.
TP316,316L Tubing, A213 TP316/316L Stainless Steel Tube
| Item Code: | TP310 310S 310H |
| Tube OD.: | 1" 25.4mm |
| Wall: | 0.065'' |
| Length: | 20FT / 6096MM |
| Material: | TP310 310S 310H |
| Standard: | ASME SA213 ASTM A213 ASTM A269 |
| Finish: | AP / Annealed & Pickled |
| Type: | Seamless Cold Drawn |
| Certification: | ISO9001:2015 |
| Mill Test Certificate: | EN10204 3.1 |
| Packing: | Sleeved, Wooden Boxed |
ASTM A213 316/316L EN 10216-5 1.4401 1.4404 Stainless Steel Tube Chemical Composition
| Grade | TP316 | TP 316L | 1.4401 | 1.4404 |
| UNS Designation | S31600 | S31603 | ||
| Carbon (C) Max. | 0.08 | 0.035 | 0.07 | 0.030 |
| Manganese (Mn) Max. | 2.00 | 2.00 | 2.00 | 2.00 |
| Phosphorous (P) Max. | 0.045 | 0.045 | 0.040 | 0.040 |
| Sulphur (S) Max. | 0.030 | 0.030 | 0.015 | 0.015 |
| Silicon (Si) Max. | 1.00 | 1.00 | 1.00 | 1.00 |
| Chromium (Cr) | 16.0 – 18.0 | 16.0 – 18.0 | 16.5 – 18.5 | 16.5 – 18.5 |
| Nickel (Ni) | 10.0 – 14.0 | 10.0 – 14.0 | 10.0 – 13.0 | 10.0 – 13.0 |
| Molybdenum (Mo) | 2.0 – 3.0 | 2.0 – 3.0 | 2.0 – 2.5 | 2.0 – 2.5 |
| Nitrogen (N) Max. | – | – | 0.015 | 0.015 |
| Iron (Fe) | Remainder | Remainder | Remainder | Remainder |
| Other Elements | – | – | – | – |
Typical Manufacturing Specifications:
ASME SA213
ASTM A213
EN10216-5
Also individual customer specifications.
Quality Assurance:
Spezilla's ASME SA213 seamless stainless steel tubes are produced acc. to the following process and inspection to assure our quality:
1. Chemical Composition Analysis Test With 100% PMI.
2. Solution Annealing / Bright Annealed.
3. 100% Hydrostatic Test and 100% Eddy Current Test
4. Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test.
5. Impact Test subject to Standard request.
6. Grain Size Test and Intergranular Corrosion Test.
7. Visual Test and Endoscope Test for Surface Quality Test
Our seamless stainless steel tubes undergo the following tests acc. to specifications:
Flattening Test:
One flattening test shall be made on specimens from each end of one finished tube, not the one used for the flaring test, from each lot.
Flaring Test:
One flaring test shall be made on speci- mens from each end of one finished tube, not the one used for the flattening test, from each lot.
Hydrostatic or Nondestructive Testing:
Each pipe shall be subjected to the nondestructive electric test or the hydrostatic test, the type of test to be used shall be at the option of the manufacturer, unless otherwise specified in the purchase order.
Markings:
Markings will adhere to prescribed specifications in A999/A999M and shall include the NPS or OD and schedule number or average wall thickness, heat number, and NH (when hydrotesting is not performed) and ET (when eddy-current testing is performed) or UT (when ultrasonic testing is performed). The marking shall also include the manufacturer’s private identifying mark, the marking requirement of section 12.3 on Hydrostatic or Nondestructive Electric Test, if applicable, and whether seamless (SML), welded (WLD), or heavily cold-worked (HCW). For Grades TP304H, TP316H, TP321H & TP347H, the marking shall also include the heat number and heat-treatment lot identification.
Note:
Mill test certificates will be issued according to EN10204.1
All tubes shall be supplied as per applicable ASTM A213 /A213M Specification.
Available Tube Product Forms:
Straight.
Coiled.
Typical Applications:
