Product Details:
Payment & Shipping Terms:
|
| Product Name: | Stainless Steel Coil Tube | Specification: | ASTM A269 |
|---|---|---|---|
| Material Grade: | TP304/304L | Test Certificate: | EN10204 3.1 |
| Finishing Options: | Bright Annealing | Size Range: | 1/4'' - 1'' |
| WT: | 0.5-1.0mm | Length: | 20ft |
| Packaging: | Wooden Boxed | Shape: | Round |
| Applicaton: | Heat Exchanger | ||
| High Light: | coiled stainless steel tubing,ss coil tubing |
||

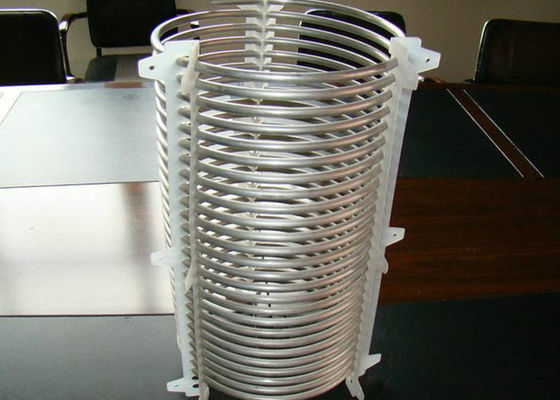

Bright Annealed Coiled Stainless Steel Tubing Cold Drawn ASTM A269
We specialize in manufacturing small diameter tubing ranging from 0.125 inch to 1 inch outer diameter (3.2 mm to 25.4 mm) and a variety of wall thicknesses.HandyTube’s coiled seamless tubing can exceed 6,000 feet (2 km) in length without any longitudinal or orbital welds. (5 times the height of Empire State Building)
Typical Manufacturing Specifications:
EN10217-7
ASTM A249
ASTM A269
Spezilla offers stainless steel coiled tubing in sizes from 1/4 to 1 in. and wall thickness from 0.035 to 0.049 in. Our coiled tubing is available in lengths up to 2300 feet, which is up to 30% long than traditional offerings. In addition, Spezilla offers less than reel quantities of coiled tubing. Stainless steel tube straighteners make coiled tubing installation faster and easier.
Material: TP316L UNS S31603
OD: 2-3/8" or 2.375"
Chemistry Composition
C,% 0.035 max Mn,% 2.00 max P,% 0.045 max S,% 0.030 max Si,% 1.00 max Cr,% 16.0-18.0 Ni,% 10.0-14.0 Mo,% 2.00-3.00
Mechanical Properties
Tensile Strength: 70,000psi (483MPa) min
Yield Strength: 40,000psi (276MPa) min
Hardness: 192HBW, 200HV or 90HRB max
Coiled Tubing undergo stringent inspection to maintain light tolerances as per ASTM accepted standards. MTC in accordance with EN10204 NACE 3.1 is furnished for all our customers against purchase order. The inner surface of tube is free from oil, gas and dust particles. The impeccable tube quality helps it for a high longevity in projects and instruments, thereby reducing costs
Coiled Tubing are manufactured in seamless and welded quality.
The product differentiation is based on the premier finish of Coiled Tubing with minimum burr at the edge. The ends are beveled for perfect welding and fabrication of the Tubes in mega projects in oil and gas industry.
The stainless steel coil tubing is widely used for industrial applications such as heat exchanger, boiler, petroleum, chemical, fertilizer, chemical, pharmaceutical, nuclear power, etc. It is also used as fluid transport system such as beer, milk, water systems, medical equipment, etc. Its other applications include mechanical structure, printing and dyeing, textile machinery, medical equipment, kitchen equipment, automobile and ship accessories, building and decoration, etc.
Features & Advantages:
Seamless stainless steel coil tubing can reduce the cost of installation due to:
- Higher rate of materials utilization
- Fewer collections
- System integrity can be improved much.
- Improve the safety of the pipeline system.
Description:
| Item Code: | SPW-C-304/304L |
| Tube OD.: | 6.00MM - 25.40MM |
| Wall: | 0.5MM - 1.65MM |
| Length: | 3000MM |
| Material: | 304/304L |
| Standard: | ASTM A249 |
| Finish: | Bright Annealed. |
| Type: | Welded & Coiled |
| Certification: | ISO9001:2015 |
| Mill Test Certificate: | EN10204 3.1 |
| Packing: | Wooden Boxed |
Chemical composition reference analysis (as weight %)
| Chemical | Amount % | |
|---|---|---|
| 304 | 304L | |
| C | ≤ 0,08 | ≤ 0,035 |
| P | < 0,040 | < 0,040 |
| S | ≤ 0,030 | ≤ 0,030 |
| Si | ≤ 1,0 | ≤ 1,0 |
| Mn | ≤ 2,0 | ≤ 2,0 |
| Cr | 18.00 – 20.00 | 18 – 20 |
| Mo | N/A | N/A |
| Ni | 8.00 – 11.00 | 8.00 - 13.00 |
| N | ||
