Product Details:
Payment & Shipping Terms:
|
| Product Name: | Duplex Stainless Steel Coil Tube | Specification: | ASTM A789 |
|---|---|---|---|
| Material: | 2205 | Size Range: | 1/4'' - 1'' |
| WT: | 0.5-1.0mm | Length: | 20ft-10000ft |
| Finishing Options: | Bright Annealing | Test Certificate: | EN10204 3.1 |
| Packaging: | Wooden Boxed | Shape: | Round |
| Applicaton: | Oil,heat Exchanger | ||
| High Light: | Duplex welded coil tube,2205 welded coil tube,6mm Duplex coil tube |
||

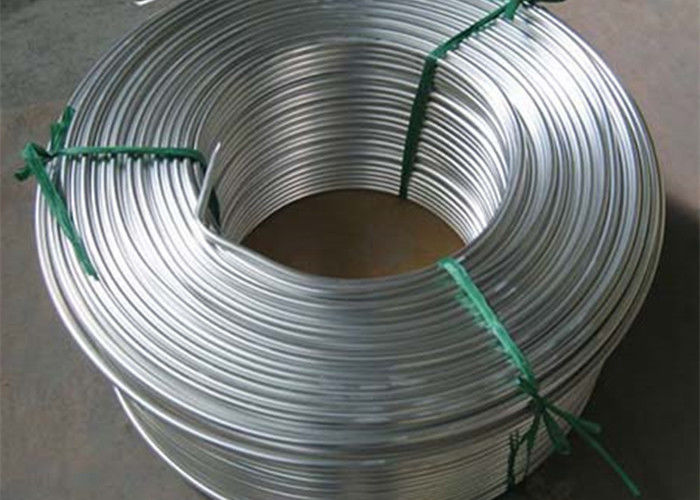

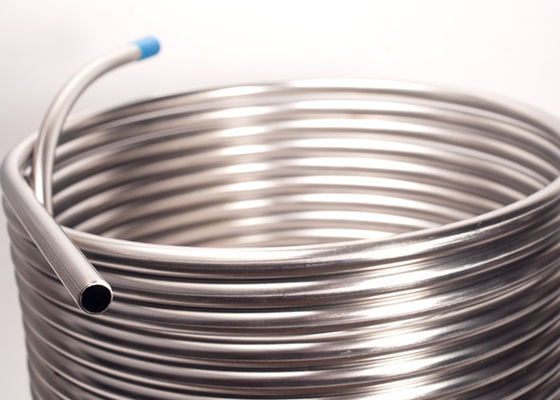

2205 Duplex Stainless Steel Welded Coil Tube 3/8"x0.049"x5000ft
Spezilla offers duplex stainless steel coiled tubing in sizes from 1/4 to 1 in. and wall thickness from 0.035 to 0.049 in. Our coiled tubing is available in lengths up to 5000 feet, which is up to 30% long than traditional offerings. In addition, Spezilla offers less than reel quantities of coiled tubing. Stainless steel tube straighteners make coiled tubing installation faster and easier.
1.Specification:Stainless steel coil tube
2.Type: welded or seamless.
3. Standard: ASTM A269, ASTM A249
4. Stainless steel coil tube OD: 6mm to 25.4MM
5.Length:600-3500MM or as per customer’s requirment. not welding
6. Wall thickness: 0.2mm to 2.0mm.
7. Tolerance: OD: +/-0.01mm; Thickness: +/-0.01%.
8.Surface: Bright or anneald
Typical Manufacturing Specifications:
EN10217-7
ASTM A249
ASTM A269
Stainless Steel 316 Coil Tubing Specification
Outer Diameter : 1/16” through 3/4"
Thickness : . 010" through .083”
Stainless Steel Seamless Coil Tubing Specifications : ASTM A213 (average wall) and ASTM A269
Stainless Steel Welded Coil Tubing Specifications : ASTM A249 and ASTM A269
The stainless steel coil tubing is widely used for industrial applications such as heat exchanger, boiler, petroleum, chemical, fertilizer, chemical, pharmaceutical, nuclear power, etc. It is also used as fluid transport system such as beer, milk, water systems, medical equipment, etc. Its other applications include mechanical structure, printing and dyeing, textile machinery, medical equipment, kitchen equipment, automobile and ship accessories, building and decoration, etc.
Coiled tubing is available in sizes arrange from outer diameter 0.125 inch (3.175 millimeters) to 1 inch (25.4 millimeters). Wall thickness is up to 0.165 inch (3 millimeters). Lengths up to 32800 feet (10,000 meters) are available for cost-effective umbilical manufacturing.
Traceability – All material is fully heat and lot traceable, allowing us to track products from raw material to finished goods.
100% testing for reliability and er installation - Every foot ofTubing undergoes 100% hydrostatic testing and positive material identification.
Appliances
Beverage production
Boiler
Desalination
Feedwater heaters
Geothermal plants
Heat exchangers
Heat recovery steam generators
Instrumentation
Mechanical
Oil and gas
Pressure coil
Features & Advantages:
Seamless stainless steel coil tubing can reduce the cost of installation due to:
- Higher rate of materials utilization
- Fewer collections
- System integrity can be improved much.
- Improve the ety of the pipeline system.
Description:
| Item Code: | SPW-C-316/316L |
| Tube OD.: | 6.00MM - 25.40MM |
| Wall: | 0.5MM - 1.65MM |
| Length: | 3000MM |
| Material: | 304/304L |
| Standard: | ASTM A249 |
| Finish: | Bright Annealed. |
| Type: | Welded & Coiled |
| Certification: | ISO9001:2015 |
| Mill Test Certificate: | EN10204 3.1 |
| Packing: | Wooden Boxed |
| EN | ASTM | Item Name | Finish |
| 1.4404 | TP316L | 6.00 X 1.0 mm TIG welded stainless steel coiled tubes, 1.4404, bright annealed, EN 10217-7 W2Rb |
Bright Annealed |
| 1.4404 | TP316L | 8.00 X 1.0 mm TIG welded stainless steel coiled tubes, 1.4404, bright annealed, EN 10217-7 W2Rb |
Bright Anneaeld |
| 1.4404 | TP316L | 10.00 X 1.0 mm TIG welded stainless steel coiled tubes, 1.4404, bright annealed, EN 10217-7 W2Rb |
Bright Annealed |
| 1.4404 | TP316L | 12.0 X 1.0 mm TIG welded stainless steel coiled tubes, 1.4404, bright annealed, EN 10217-7 W2Rb |
Bright Annealed |
| 1.4404 | TP316L | 6.35 X 0.89 mm TIG welded stainless steel coiled tubes, TP316L, bright annealed, ASTM A249 A269 |
Bright Annealed |
| 1.4404 | TP316L | 9.53 X 0.89 mm TIG welded stainless steel coiled tubes, TP316L, bright annealed, ASTM A249 A269 |
Bright Annealed |
| 1.4404 | TP316L | 12.7 X 0.89 mm TIG welded stainless steel coiled tubes, 1.4404, bright annealed, ASTM A249 A269 |
Bright Annealed |
| 1.4404 | TP316L | 6.35 X 1.24 mm TIG welded stainless steel coiled tubes, TP316L, bright annealed, ASTM A249 A269 |
Bright Annealed |
| 1.4404 | TP316L | 9.53 X 1.24 mm TIG welded stainless steel coiled tubes, TP316L, bright annealed, ASTM A249 A269 |
Bright Annealed |
| 1.4404 | TP316L | 12.7 X 1.24 mm TIG welded tstainless steel ubes, TP316L, bright annealed, ASTM A249 A269 |
Bright Annealed |
| 1.4404 | TP316L | 6.3M X 1.65 mm TIG welded stainless steel coiled tubes, TP316L, bright annealed, ASTM A249 A269 |
Bright Annealed |
| 1.4404 | TP316L | 9.53 X 1.65 mm TIG welded stainless steel coiled tubes, TP316L, bright annealed, ASTM A249 A269 |
Bright Annealed |
| 1.4404 | TP316L | 12.7 X 1.65 mm TIG welded stainless steel coiled tubes, TP316L, bright annealed, ASTM A249 A269 |
Bright Annealed |
