| Specification: | ASTM A269 ASME SA269 | Material Grade: | SUS 304 1.3401 316L |
|---|---|---|---|
| Product Name: | Stainless Steel Coil Tubing | Finishing Options: | Bright Annealing |
| Test Certificate: | EN10204 3.1 | Size Range: | 1/4'' - 1'' |
| WT: | 0.5-1.0mm | Length: | 20ft |
| Packaging: | Wooden Boxed | Shape: | Round |
| Applicaton: | Heat Exchanger | ||
| High Light: | coiled stainless steel tubing,ss coil tubing |
||

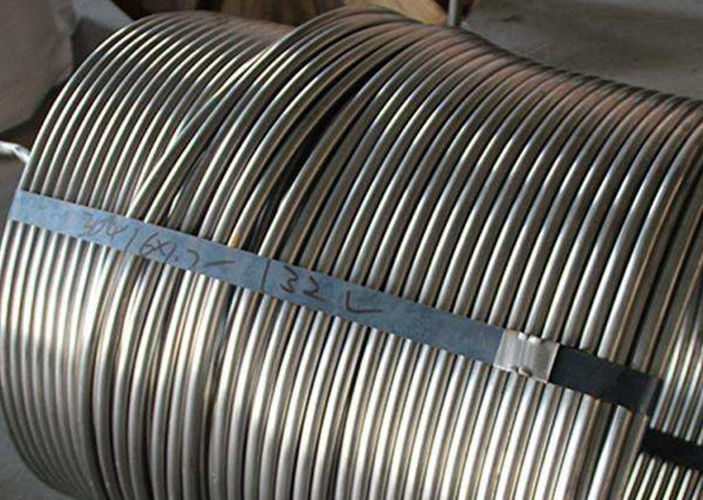

ASTM A269 Coiled Tubing 316L UNS S31603 2.375 Stainless Steel Tubing Bright Annealed
The stainless steel coil tubing is widely used for industrial applications such as heat exchanger, boiler, petroleum, chemical, fertilizer, chemical, pharmaceutical, nuclear power, etc. It is also used as fluid transport system such as beer, milk, water systems, medical equipment, etc. Its other applications include mechanical structure, printing and dyeing, textile machinery, medical equipment, kitchen equipment, automobile and ship accessories, building and decoration, etc.
Material: TP316L UNS S31603
OD: 2-3/8" or 2.375"
Chemistry Composition
C,% 0.035 max Mn,% 2.00 max P,% 0.045 max S,% 0.030 max Si,% 1.00 max Cr,% 16.0-18.0 Ni,% 10.0-14.0 Mo,% 2.00-3.00
Mechanical Properties
Tensile Strength: 70,000psi (483MPa) min
Yield Strength: 40,000psi (276MPa) min
Hardness: 192HBW, 200HV or 90HRB max
Spezilla offers stainless steel coiled tubing in sizes from 1/4 to 1 in. and wall thickness from 0.035 to 0.049 in. Our coiled tubing is available in lengths up to 2300 feet, which is up to 30% long than traditional offerings. In addition, Spezilla offers less than reel quantities of coiled tubing. Stainless steel tube straighteners make coiled tubing installation faster and easier.
Coiled tubing is available in sizes arrange from outer diameter 0.125 inch (3.175 millimeters) to 1 inch (25.4 millimeters). Wall thickness is up to 0.165 inch (3 millimeters). Lengths up to 32800 feet (10,000 meters) are available for cost-effective umbilical manufacturing.
Typical Manufacturing Specifications:
EN10217-7
ASTM A249
ASTM A269
Traceability – All material is fully heat and lot traceable, allowing us to track products from raw material to finished goods.
100% testing for reliability and er installation - Every foot ofTubing undergoes 100% hydrostatic testing and positive material identification.
Appliances
Beverage production
Boiler
Desalination
Feedwater heaters
Geothermal plants
Heat exchangers
Heat recovery steam generators
Instrumentation
Mechanical
Oil and gas
Pressure coil
Features & Advantages:
Seamless stainless steel coil tubing can reduce the cost of installation due to:
- Higher rate of materials utilization
- Fewer collections
- System integrity can be improved much.
- Improve the ety of the pipeline system.
Description:
| Item Code: | SPW-C-304/304L |
| Tube OD.: | 6.00MM - 25.40MM |
| Wall: | 0.5MM - 1.65MM |
| Length: | 3000MM |
| Material: | 304/304L |
| Standard: | ASTM A249 |
| Finish: | Bright Annealed. |
| Type: | Welded & Coiled |
| Certification: | ISO9001:2015 |
| Mill Test Certificate: | EN10204 3.1 |
| Packing: | Wooden Boxed |
Chemical composition reference analysis (as weight %)
| Chemical | Amount % | |
|---|---|---|
| 304 | 304L | |
| C | ≤ 0,08 | ≤ 0,035 |
| P | < 0,040 | < 0,040 |
| S | ≤ 0,030 | ≤ 0,030 |
| Si | ≤ 1,0 | ≤ 1,0 |
| Mn | ≤ 2,0 | ≤ 2,0 |
| Cr | 18.00 – 20.00 | 18 – 20 |
| Mo | N/A | N/A |
| Ni | 8.00 – 11.00 | 8.00 - 13.00 |
| N | ||
