|Product Name:||ASTM A269 Stainless Steel Coil Tubing||Specification:||ASTM A249 A269|
|Material Grade:||TP316/316L||Test Certificate:||EN10204 3.1|
|Size Range:||1/4'' - 1''||WT:||0.5-1.0mm|
|Finishing Options:||Bright Annealing||Packaging:||Wooden Boxed|
coiled stainless steel tubing,
ss coil tubing

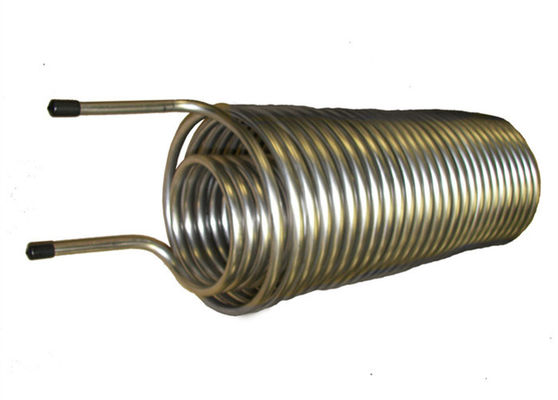

38 Stainless Steel tubing Coil 20ft ASTM A269 TP304/304L TP316/316L
These SS Coil Tubing/ Coiled stainless steel tubings are widely used in the petrochemical, natural gas, oil and gas, and geothermal applications. Most of the standard sizes of stainless steel coiled tubes are available ex-stock for immediate deliveries to our customers. We have huge stock of stainless steel 304 grade coiled tubes and stainless steel 316 grade coiled tubes in outside diameter range of 6mm to 19.05 OD. We accept order for other non standard size coiled tubings as well. Coiled tubing is available in lengths of 100 feet (30 meters), 500 meters or customs lengths as per client specification.
Stainless steel tube coil
we manufacture precision tubes using stainless steel, nickel, titanium and zirconium alloys, in a whole range of sizes and cross section shapes to suit your requirements. Both our seamless and welded products come both as straight lengths of tubing or in coils.
Seamless stainless steel coiled tube is available mainly for hydraulic tube, stainless steel instrumentation tubing, capillary tube, and bright annealed tube. This product is manufactured by cold drawn / cold roll method.
Available Tube Product Forms:
Stainless steel tube coils are ideal for use in potentially corrosive environments and for transferring liquids and gases for cooling, heating, and other purposes.
Spezilla's coiled stainless steel tubes are produced acc. to the following process and inspection to assure our quality:
1. Chemical Composition Analysis Test With 100% PMI.
2. Solution Annealing / Bright Annealed.
3. 100% Hydrostatic Test and 100% Eddy Current Test
4. Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test.
5. Impact Test subject to Standard request.
6. Grain Size Test and Intergranular Corrosion Test.
7. Visual Test and Endoscope Test for Surface Quality Test
Typical Manufacturing Specifications:
Also individual customer specifications.
Spezilla offers stainless steel coiled tubing in sizes from 1/4 to 1 in. and wall thickness from 0.035 to 0.049 in. Our coiled tubing is available in lengths up to 2300 feet, which is up to 30% long than traditional offerings. In addition, Spezilla offers less than reel quantities of coiled tubing. Stainless steel tube straighteners make coiled tubing installation faster and easier.
Traceability – All material is fully heat and lot traceable, allowing us to track products from raw material to finished goods.
100% testing for reliability and safer installation - Every foot ofTubing undergoes 100% hydrostatic testing and positive material identification.
Heat recovery steam generators
Oil and gas
|Tube OD.:||6.00MM - 25.40MM|
|Wall:||0.5MM - 1.65MM|
|Type:||Welded & Coiled|
|Mill Test Certificate:||EN10204 3.1|
Chemical composition reference analysis (as weight %)
|C||≤ 0,08||≤ 0,035|
|P||< 0,040||< 0,040|
|S||≤ 0,030||≤ 0,030|
|Si||≤ 1,0||≤ 1,0|
|Mn||≤ 2,0||≤ 2,0|
|Cr||18.00 – 20.00||18 – 20|
|Ni||8.00 – 11.00||8.00 - 13.00|
Mechanical values at room temperature
|Tensile strength N/mm²||525.00||485.00|
|Tensile yield point Rp 0,2 N/mm²||205.00||170.00|
|Elongation at break A5 %||35.00||35.00
