Payment & Shipping Terms:
|Product Name:||Copper Nickel Tube For Heat Exchanger||Materials:||COPPER NICKEL|
|Standard:||ASTM B111||Size / OD:||4.00MM - 76.2MM|
|Size / WT:||0.25MM - 4.0MM||Grade:||CUNI 90/10|
|Package:||Steel Frame||Application:||Heat Exchanger|
u bend tube,
aluminium extruded finned tubes

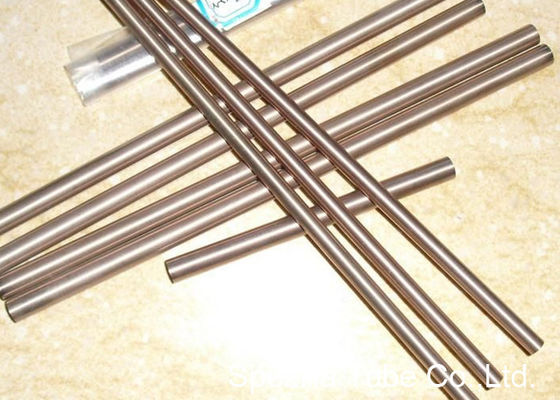

Cupro Nickel 90 10 Cupro Nickel Tubes , heat exchanger piping 4.00MM - 76.2MM
Outer Diameter - 4.00 to 22.00 mm
Wall Thickness - Between 0.15mm and 1.50 mm
Length up to 6 mtrs
Cupro Nickel Tubes 90/10
This form of cupro nickel tubes produced by Spezilla possess excellent resistance to corrosion by sea water as well as high resistance to erosion corrosion and air-impingement attack. The addition of iron results in 90/10 performing as good as 70/30 in salt water service heat exchangers. These tubes have good strength and ductility at ordinary temperatures and relatively high strength and other mechanical properties at elevated temperatures.
These cupro nickel tubes are widely used in condensers, coolers and heat exchangers where resistance to corrosion and erosion is paramount, yet maintaining a high thermal conductivity rate. To be used preferably in marine conditions. Forms a protective film which is multi-layered in flowing seawater. Resists marine bifouling.
These cupro nickel tubes are produced in a range of outside diameter, wall thickness various temper conditions to achieve the required mechanical properties and grain size. The mechanical and dimensional characteristics of our products satisfy the most demanding orders that require tight tolerances.
Cupro Nickel Tubes 70/30
Spezila produces smooth bore 70/30 cupro nickel tubes of the highest standard, rigorously tested to make sure they are suitable for the exacting requirement of condensers and heat exchangers. These cupro nickel tubes have the highest resistance to stress-corrosion cracking. These tubes are available in a variety of outside diameter, wall thickness and tempers to meet the requirement. Superior dimensional control with specified mechanical properties offers trouble free performance and cost saving.
This form of cupro nickel tube gives the best service life under the most adverse conditions because of improved corrosion resistance and almost insensitive to stress corrosion. These cupro nickel tubes are used in heat exchangers where severe erosion and corrosion have been experienced, especially at elevated temperatures, high velocities and extreme turbulence of the circulating media. These cupro nickel tubes have an important bearing not only on the performance of heat exchangers but also on the cost and delivery cycle time of the condenser and heat exchangers where they are used.
|Cupro Nickel Tube90/ 10||Standard||BS2871part3||ASTM B-111||IS 1545||JIS H 3300||NFA 51 102|
|Symbol||CN 102||C 70600||CuNi10Fe1||C7060||CuNi10Fe1Mn|
|Cupro Nickel Tubes 70/30||Standard||BS2871part3||ASTM B-111||IS 1545||JIS H 3300||NFA 51 102|
|NFA 51 102||CN 107||C 71500||CuNi30Mn1Fe||C 7150||CuNi30Mn1Fe|
Heat Exchangers, Oil Coolers, Radiators, High Capacity Power Plants, Ship Building & Ship Repairs, Condensers, Offshore Oil rigs, Distiller Tubes, Evaporators, Ferrules etc.
