Product Name: | Stainless Steel Tube | Standard: | ASMESA213,SA213M,SA688,SA789,GB13296-91 |
---|---|---|---|
Type: | Heat Exchanger Tube, Stainless Steel Tube | Characteristics: | High Precision, Smooth Surface,good Corrosion Resisting And High Temperature/pressure Resisting |
Material Grade: | 304/304L/304H(1.4301/1.4306/1.4948) | Outer Diameter: | 10.0mm-88.9mm |
Wall Thickness: | 1.0mm-6.0mm | Shape: | Round |
Package: | Wooden Case | Application: | Heat Exchanger |
High Light: | sanitary stainless steel tubing,304 stainless steel tube |

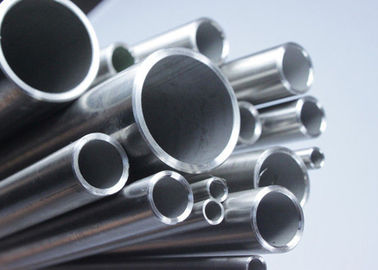

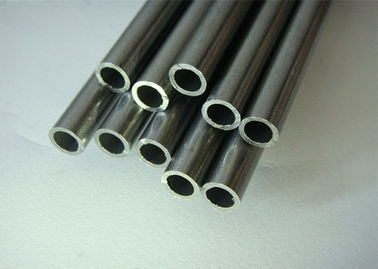

ASMESA213 Stainless Steel Heat Exchanger Tube,Seamless Cold Drawn Steel Tube DIN 17456 1.4301 1.4307
Quick Detail:
1)Standard : ASMESA213,SA213M,SA688,,SA789,,GB13296-91
2)Grade :304/304L/304H(1.4301/1.4306/1.4948)
3)Size : Dia10.0 to 88.9mm
Stainless Steel Heat Exchanger Tube :
Grades of Stainless Steel Heat Exchanger Tube:
304/304L/304H(1.4301/1.4306/1.4948); 316/316L(1.4401/1.4404); 316Ti(1.4571); 321(1.4541); 309S(1.4833); 310S(1.4845); 317L(1.4438); 321H(1.4878); 347H(1.4550); 2205(1.4462); S31803, 2507
Specifications of Stainless Steel Heat Exchanger Tube:
Stainless steel seamless pipe:
Diameter:10.0 ~ 88.9mm
Thickness:1.0 ~ 6.0mm
Stainless steel welded pipe:
Diameter:12.7 ~ 76.2mm
Thickness:0.5 ~ 3.05mm
Standards of Stainless Steel Heat Exchanger Tube:
1.ASME SA213/SA213M
2.ASME SA688/SA688M
3.ASME SA789 / SA789M
4.ASME SA249/SA249M
5.GB13296-91
Stainless Steel Pipe:
1. Material: TP304/304L,TP316/316L,TP304H,TP347H, TP317/317L,TP321/321H,TP310/310S ETC
2. O.D: 10mm-89mm , Thickness:0.25-3mm
3. A999/A999M: Each pipe shall be subjected to the nondestructive electric test or the hydrostatic test, the Thpe of test to be used shall be at the option of the mfg, unless otherwise specified in the PO.
4. The Pipe lengths : Unless otherwise agreed upon, all size from NPS 1/8” TO AND INCLUDING nps 8 are available in a length up to 24ft with the permitted range of 15 to 24 ft. Short length are acceptable and the number and min, length shall be agreed upon between mfg and purchaser.
5. The finished pipe shall be reasonably straight and shall have workmanlike finish, Removal of imperfections by grinding is permitted, provided the W.T are not decreased to the lenss than the permitted in Section 9 of Specification A999/A999M
6. Butt Weld End: According to ANSI B 16.25
7. PipeMarking:Specified in A999/999M, include “Logo+Standard+SIZE+Heat No.+Lot No.+H.T/E.T/U.T”

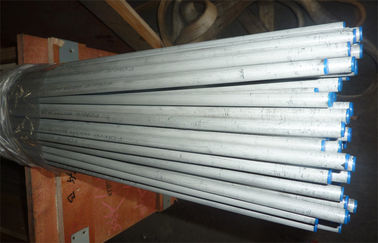

8. Packing: Each Pipe end is protected by Plastic cap. Then packed by Anti-rust steel strip, The outside of the bundle is plastic woven bag, or Plastic film.
9. Packing Mark: SIZE + STEEL GRADE+ QTY OF PIECE/WEIGHT/METRE.
10. MTC: BWSS Official Original MTC paper will be supplied for each order.
Item Name: EN10216-5 TC1 ASTM A-312 Seamless Stainless Steel Round Pipe | In stock |
42.16 X 4.85 mm 1 1/4" nb SCH 80S XS Seamless pipes, 4301/7 304/L, A+P, 10216-5 TC1,A-312 | # |
42.16 X 6.35 mm 1 1/4" nb SCH 160 Seamless pipes, 4301/7 304/L, A+P, 10216-5 TC1,A-312 | # |
48.26 X 2.77 mm 1 1/2" nb SCH 10S Seamless pipes, 4301/7 304/L, A+P, 10216-5 TC1,A-312 | # |
48.26 X 3.68 mm 1 1/2" nb SCH 40S STD Seamless pipes, 4301/7 304/L, A+P, 10216-5 TC1,A-312 | # |
48.3 X 2.0 mm Seamless pipes, 4301/7 304/L, A+P, EN-ISO1127 D3/T3, 10216-5 TC1 | # |
48.3 X 3.25 mm Seamless pipes, 4301/7 304/L, A+P, 10216-5 TC1,A-312 | # |
48.26 X 5.08 mm 1 1/2" nb SCH 80S XS Seamless pipes, 4301/7 304/L, A+P, 10216-5 TC1,A-312 | # |
48.26 X 7.14 mm 1 1/2" nb SCH 160 Seamless pipes, 4301/7 304/L, A+P, 10216-5 TC1,A-312 | # |
57.0 X 6.5 mm Seamless pipes, 4301/7 304/L, D2/T3, 10216-5 TC1,A-269/213 | # |
60,3 X 2,0 mm Seamless pipes, 4301/7 304/L, A+P, EN-ISO1127 D3/T3, 10216-5 TC1 | # |
60.3 X 3.65 mm Seamless pipes, 4301/7 304/L, A+P, 10216-5 TC1,A-312 | # |
60.33 X 5.54 mm 2" nb SCH 80S XS Seamless pipes, 4301/7 304/L, A+P, 10216-5 TC1,A-312 | # |
60.33 X 8.74 mm 2" nb SCH 160 Seamless pipes, 4301/7 304/L, A+P, 10216-5 TC1,A-312 | # |
60.33 X 2.77 mm 2" nb SCH 10S Seamless pipes, 4301/7 304/L, A+P, 10216-5 TC1,A-312 | # |
60.33 X 3.91 mm 2" nb SCH 40S STD Seamless pipes, 4301/7 304/L, A+P, 10216-5 TC1,A-312 | # |
73.03 X 3.05 mm 2 1/2" nb SCH 10S Seamless pipes, 4301/7 304/L, A+P, 10216-5 TC1,A-312 | # |
73.03 X 5.16 mm 2 1/2" nb SCH 40S STD Seamless pipes, 4301/7 304/L, A+P, 10216-5 TC1,A-312 | # |
76.1 X 2.0 mm Seamless pipes, 4301/7 304/L, D3/T3, 10216-5 TC1,A-269/213 | # |
76.1 X 2.90 mm Seamless pipes, 4301/7 304/L, A+P, D2/T3, 10216-5 TC1,A-312 | # |
76.1 X 3.65 mm Seamless pipes, 4301/7 304/L, A+P, 10216-5 TC1,A-312 | # |
88.9 X 3.05 mm 3" nb SCH 10S Seamless pipes, 4301/7 304/L, A+P, 10216-5 TC1,A-312 | # |
88.9 X 4.05 mm Seamless pipes, 4301/7 304/L, A+P, 10216-5 TC1,A-312 | # |
88.9 X 5.49 mm 3" nb SCH 40S STD Seamless pipes, 4301/7 304/L, A+P, 10216-5 TC1,A-312 | # |
88.9 X 7.62 mm 3" nb SCH 80S XS Seamless pipes, 4301/7 304/L, A+P, 10216-5 TC1,A-312 | # |
101.6 X 3.05 mm 3 1/2" nb SCH 10S Seamless pipes, 4301/7 304/L, A+P, 10216-5 TC1,A-312 | # |
101.6 X 5.74 mm 3 1/2" nb SCH 40S STD Seamless pipes, 4301/7 304/L, A+P, 10216-5 TC1,A-312 | # |
101.6 X 8.08 mm 3 1/2" nb SCH 80S XS Seamless pipes, 4301/7 304/L, A+P, 10216-5 TC1,A-312 | # |
114.3 X 3.05 mm 4" nb SCH 10S Seamless pipes, 4301/7 304/L, A+P, 10216-5 TC1,A-312 | # |
114.3 X 4.50 mm Seamless pipes, 4301/7 304/L, A+P, 10216-5 TC1,A-312 | # |
