Product Details:
Payment & Shipping Terms:
|
| Product Name: | Stainless Steel Tubing | Steel Grade: | 1.4404 |
|---|---|---|---|
| Standard: | ASTM A269 | Size: | 6mm-25.4mm |
| Process: | TIG | Surface Finish: | Bright Annealed/Polished |
| Application: | Petroleum | Shape: | Round |
| Package: | Wooden Case | ||
| High Light: | ss round tube,food grade stainless tubing |
||

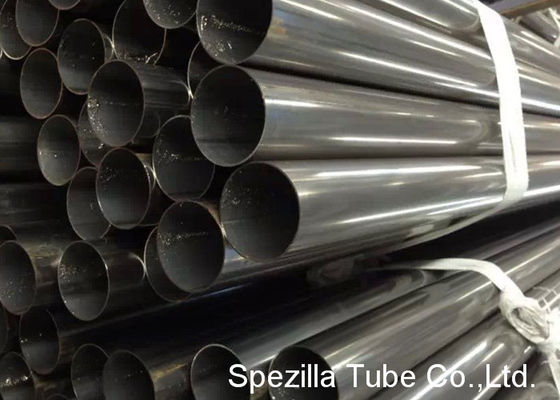

Industrial Stainless Steel Pipe , 2 inch round steel tubing En10217-7 A511 EN 1.4404
EN10217-7:
Eletric-Fushion-Welded Austenitic Chromium-Nickel Stainless Steel Pipe For High-Temperature Service and General Applications
This specification cover electric-fusion-welded austenitic chromium-nickel stainless steel pipe suitable for corrosive or high-temperature service, or both, or for general applications. The pipes come in five classes.
Class1:
Pipe is double welded by processes employing filler metal in all passes and are completely radiographed.
Class2:
Pipe is double welded by processes employing filler metal in all passes without radiography
Class3:
Pipe is single welded by processes employing filler metal in all passes and are completely radiographed.
Class4:
Same as Class 3 except that the weld pass exposed to the inside pipe surface may be made without the addition of filler metal.
Class5:
Pipe is double welded by processes employing filler metal in all passes and is spot radiographed.
Pipe Grades:
304,304L, 304H, 316, 316L, 316H, 321, 321H, 317, 317L, 347, 347H, 309, 309S, 310, 310S.
Available Sizes:
Any size can be provided but this process is usually used sizes of NPS 8’’ and upper.
| Specifications | ASTM A/ASME SA213/A249/A269/A312/A358 CL. I to V ASTM A789/A790 |
| Dimensions | ASTM, ASME and API |
| Specialized in | Large Diameter Size |
| 317 Pipes & Tubes | 1/2" NB - 8" NB |
| ERW 317 Pipes & Tubes | 1/2" NB - 24" NB |
| EFW 317 Pipes & Tubes | 6" NB - 100" NB |
| Tubing Size | 1/8″NB TO 30″NB IN |
| Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Length | Single Random, Double Random & Cut Length. |
| Type | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
| Form | Round, Square, Rectangular, Hydraulic Etc |
| End | Plain End, Beveled End, Treaded |
| EN - DIN | WNr | AISI/ Tradename | ASTM - UNS | Pipe seamless |
Pipe welded |
|
| X5CrNi18-10 | 1.4301 | 304 | S30400 | A/ SA312 | A/ SA358/ A/ SA312 | |
| EN10216-5 | EN10217-7 | |||||
| X6CrNiTi18-10 | 1.4541 | 321 | S32100 | A/ SA312 | A/ SA358/ A/ SA312 | |
| EN10216-5 | EN10217-7 | |||||
| X6CrNiNb18-10 | 1.4550 | 347 | S34700 | A/ SA312 | A/ SA358/ A/ SA312 | |
| EN10216-5 | EN10217-7 | |||||
| X5CrNiMo17-12-2 | 1.4401 | 316 | S31600 | A/ SA312 | A/ SA358/ A/ SA312 | |
| EN10216-5 | EN10217-7 | |||||
| X2CrNiMo17-13-2 | 1.4404 | 316L | S31603 | A/ SA312 | A/ SA358/ A/ SA312 | |
| EN10216-5 | EN10217-7 | |||||
| X2CrNiMo18-16-4 | 1.4438 | 317L | S31703 | A/ SA312 | A/ SA358/ A/ SA312 | |
| EN10216-5 | EN10217-7 | |||||
| X2CrNiMoN17-13-5 | 1.4439 | 317 LNM | S31726 | A/ SA312 | A/ SA358/ A/ SA312 | |
| EN10216-5 | EN10217-7 | |||||
| X5CrNiMo17-13 | 1.4449 | 317 | S31700 | A/ SA312 | A/ SA358/ A/ SA312 | |
| EN10216-5 | EN10217-7 | |||||
| X1NiCrMoCuN25-20-6 | 1.4529 | Alloy 926 | N08926 | B/ SB677/ A/ SA312 | B/ SB673 | |
| EN10216-5 | EN10217-7 | |||||
| X1NiCrMoCu25-20-5 | 1.4539 | 904L | N08904 | B/ SB677/ A/ SA312 | B/ SB673 | |
| EN10216-5 | EN10217-7 | |||||
| X6CrNiMoTi17-12-2 | 1.4571 | 316Ti | S31635 | A/ SA312 | A/ SA358/ A/ SA312 | |
| EN10216-5 | EN10217-7 | |||||
| X1CrNiMoCuN20-18-7 | 1.4574 | 254SMO® | S31254 | A/ SA312 | A/ SA358/ A/ SA312 | |
| EN10216-5 | EN10217-7 | |||||
