Product Details:
Payment & Shipping Terms:
|
| Product Name: | Stainless Steel Pipe | Standard: | ASTM A788 |
|---|---|---|---|
| Materials: | 304,316L,321,ect. | O.D.: | 1/2'' - 24'' |
| W.T.: | SCH5S - 80S | Length MAX: | 12000MM Max. |
| Type: | Welded | Shape: | Round |
| Finish: | Annealed&Pickled | Package: | Wooden Case/Bunlde |
| High Light: | welding stainless steel tubing,stainless steel welded pipe |
||

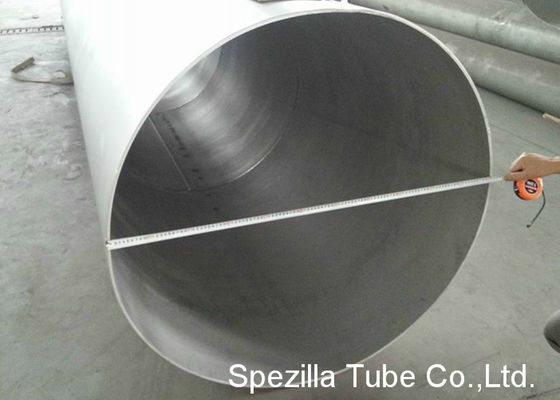

ASTM A778 Round Welded stainless steel 316 tube TP321 TP347 12000MM Max Smooth Surface
Stainless Steel Pipe Applications
Stainless steel pipe has a wide variety of applications, some of the most prevalent include:
Industrial Metal Supply offers stainless steel pipe in varying sizes and weights depending on your application needs.
304 stainless steel pipe is generally considered passageways for liquids and are measured by the inside diameter, or ID of the pipe. Additional qualities include high corrosion resistance, superior durability, high strength-to-weight ratio, fair resistance to thermal and electrical conductivity, ease of fabrication, ease of cleaning, non-magnetic and is hardenable by cold working.
SPEZILLA supplies welded tube per ASTM A 788 as rolled and welded. We supply common grades of stainless such as 304/304L and 316/316L in standard tube sizes and wall thicknesses, as well as more challenging stainless welded tube requirements including 304H, 316H, 309/S, 310/S, 317/L, 321/H, 347/H, 410, 410S, Duplex 2205, Duplex 2507, and more.
We can even supply material with wall thicknesses up to 3″ thick! Diameters sizes range from 1/8″ up to 96″. All welded tube products can be cut to size. Specialty testing services can also be provided. Stainless tubes can be polished per request and cut to size.
Stainless Steel Round Tube Standards:
A/SA 213 (ASTM/ASME A/SA213): Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes
A/SA 249 (ASTM/ASME A/SA249): Standard Specification for Welded Austenitic Steel Boiler, Superheater, Heat-Exchanger, and Condenser Tubes
A/SA 268 (ASTM/ASME A/SA268): Standard Specification for Seamless and Welded Ferritic and Martensitic Stainless Steel Tubing for General Service
A269 (ASTM A269): Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing for General Service
A 270 / BPE (ASTM A270): Standard Specification for Seamless and Welded Austenitic Stainless Steel Sanitary Tubing
A/SA 312 (ASTM/ASME A/SA3120): Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes
A/SA358 (ASTM/ASME A/SA358): Standard Specification for Electric-Fusion-Welded Austenitic Chromium-Nickel Alloy Steel Pipe for High-Temperature Service
A/SA376 (ASTM/ASME A/SA376): Standard Specification for Seamless and Welded Austenitic Stainless Steel Pipe for High-Temperature Central-Station Service
A511 (ASTM A511): Standard Specification for Seamless Stainless Steel Mechanical Tubing
A554 (ASTM A554): Standard Specification for Welded Stainless Steel Mechanical Tubing
A 778 (ASTM A778): Standard Specification For Welded, Unannealed Austenitic Stainless Steel Tubular Products
A/SA 688 (ASTM/ASME A/SA 688): Standard Specification for Seamless and Welded Austenitic Stainless Steel Feedwater Heater Tubes
A/SA 789 (ASTM/ASME A/SA 789): Standard Specification for Seamless and Welded Ferritic/Austenitic Stainless Steel Tubing for General Service
A/SA790 (ASTM/ASME A/SA 790): Standard Specification for Seamless and Welded Ferritic/Austenitic Stainless Steel Pipe
AS-WELDED SPECIFICATIONS ASTM A778 TOLERANCES, INCHES
|
Nominal Pipe |
OD |
Wall |
Cut |
|
|
Over |
Under |
|||
|
1/8 to 1-1/2 |
1/64 |
1/32 |
+4.5% to |
+1/4 |
|
Over 1-1/2 to 4 |
1/32 |
1/32 |
||
|
Over 4 to 8 |
1/16 |
1/32 |
||
|
Over 8 to 18 |
3/32 |
1/32 |
||
AS-WELDED SPECIFICATIONS ASTM A778 TENSILE REQUIREMENTS
|
Grade |
UNS |
Tensile |
Yield |
Elongation in 2 |
|
TP304L |
S30403 |
70 (485) |
25 (170) |
40 |
|
TP316L |
S31603 |
70 (485) |
25 (170) |
40 |
|
TP317L |
S31703 |
75 (515) |
30 (205) |
35 |
|
TP321 |
S32100 |
75 (515) |
30 (205) |
40 |
|
TP347 |
S34700 |
75 (515) |
30 (205) |
40 |
