Product Details:
Payment & Shipping Terms:
|
| Materials: | TP316L./AISI316L | O.D.: | 2" |
|---|---|---|---|
| W.T.: | 1.65mm | Length: | 6096mnm |
| Pipe Finish: | Polished | Standard: | ASTM A270 |
| High Light: | stainless steel round pipe,304 stainless steel tube |
||

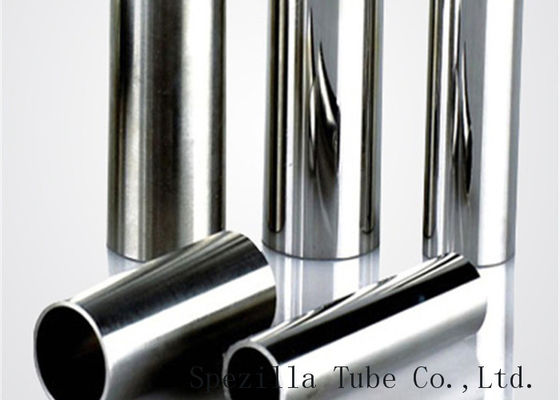

3/4"x0.065"x20ft S.S Welded Santiary tubing ASTM A270 TP316L Polished for food
Spezilla stainless steel sanitary tubes are designed to meet customer demands for enhanced hygenic components. These are implemented in processing lines throught the Food & Beverage Industry and are a e choice.
Manufacturing Standard: ISO2037, SMS3008, IDF
Material Type: TP304, TP304L, TP316L
Standard Length: 6.0Mtr., 6.1 Mtr.
Surface Roughness: Bright Annealed, Mill Finish is available for both ID/OD, Mechanical Polish, Electro Polish needs to specify either ID/OD.
In pursuit of faster & more efficient production, innovation is both a business & a consumer obligation resnating through the Food & Beverage Industry. Spezilla stainless steel sanitary tubes is proud to be a leader in industrial innovation, which is reflected in our designs, production methods & technologies.
Available Sizes:
OD from 1/2'' to 8'' (12.7MM to 203.20MM)
Wall thickness: 0.065'' to 0.083'' (1.65MM to 2.11MM)
Length: 20ft ( 6100MM)
ASTM A270 Sanitary stainless steel tubing as well sanitary stainless steel tube, meets A270 standards available in sanitary stainless steel AISI 316L, 304L or 304 from 1” to 4” sizes, inside roughness ( 32 μ'/0,8 μm ) Ra 180 grit; outside surface finishing ( 150 grit / Brushed ) acording A270. Upon Request Inside surface finishing ( 20 μ'/0,5 μm ) Ra. for ASME SA270 standards. To maintain clean standards tubes are packed individually in plastic sleeves and covered with plastic caps in both ends.
| Grade | Carbon | Silicon | Maganese | Phosphorus | Sulphur | Chromium | Moly | Nickel |
| C | Si | Mn | P | S | Cr | Mo | Ni | |
| Max. | Max. | Max. | Max. | Max. | ||||
| 304 | 0.08 | 0.75 | 2.00 | 0.045 | 0.03 | 18.00-20.00 | N/A | 8.00-10.50 |
| 304L | 0.03 | 0.75 | 2.00 | 0.045 | 0.03 | 18.00-20.00 | N/A | 8.00-12.00 |
| 316 | 0.08 | 0.75 | 2.00 | 0.045 | 0.03 | 16.00-18.00 | 2.00-3.00 | 10.00-14.00 |
| 316L | 0.03 | 0.75 | 2.00 | 0.045 | 0.03 | 16.00-18.00 | 2.00-3.00 | 10.00-14.00 |
| Inner surface | Outer surface | |
| CC |
pickled W2(b) and passivated Ra < 0.8 µm area of weld seam Ra < 1.6 µm |
pickled W2(b) and passivated |
| CD |
pickled W2(b) and passivated Ra < 0.8 µm area of weld seam Ra < 1.6 µm |
ground Ra < 1.0 µm |
| BC |
annealed and pickled, or bright annealed, W2R(b), l1g or l2g Ra < 0.8 µm area of weld seam Ra < 1.6 µm |
pickled and passivated or bright annealed W2A(b), W2R(b), l1g or l2g |
| BD |
annealed and pickled, or bright annealed, W2R(b), l1g or l2g Ra < 0.8 µm area of weld seam Ra < 1.6 µm |
ground Ra < 1.0 µm |
| Dimensional Tolerances ASTM A270 Stainless Steel Sanitary Pipe | ||||
| Size OD | Nominal Wall | Outside Diameter(MM) | Length | Wall |
| 1/2''(12.7) | 0.065''(1.65)/0.049''(1.25) | +/-0.005(0.13) | +1/8''(3.18)/-0 | +/-10.0% |
| 3/4''(19.05) | 0.065''(1.65)/0.049''(1.25) | +/-0.005(0.13) | +1/8''(3.18)/-0 | +/-10.0% |
| 1''(25.4) | 0.065''(1.65)/0.049''(1.25) | +/-0.005(0.13) | +1/8''(3.18)/-0 | +/-10.0% |
| 1-1/2''(38.1) | 0.065''(1.65)/0.049''(1.25) | +/-0.008(0.20) | +1/8''(3.18)/-0 | +/-10.0% |
| 2''(50.8) | 0.065''(1.65)/0.049''(1.25) | +/-0.008(0.20) | +1/8''(3.18)/-0 | +/-10.0% |
| 2-1/2''(63.5) | 0.065''(1.65) | +/-0.010(0.25) | +1/8''(3.18)/-0 | +/-10.0% |
| 3''(76.2) | 0.065''(1.65) | +/-0.010(0.25) | +1/8''(3.18)/-0 | +/-10.0% |
| 4''(101.6) | 0.083''(2.11) | +/-0.015(0.38) | +1/8''(3.18)/-0 | +/-10.0% |
| 6''(152.4) | 0.083''(2.11) | +/-0.030(0.76) | +3/16"(5.00)/-0 | +/-10.0% |
| 6''(152.4) | 0.109''(2.77) | +/-0.030(0.76) | +3/16"(5.00)/-0 | +/-10.0% |
| 8''(203.2) | 0.109''(2.77) | +/-0.050(1.25) | +3/16"(5.00)/-0 | +/-10.0% |
