Materials: | AISI TP316L,304L | O.D.: | 3/4"-6" |
---|---|---|---|
W.T.: | 1.65mm,2mm,1.5mm,1.2mm | Length: | 20ft |
Pipe Finish: | Polished | Standard: | ASTM A270 |
High Light: | polished stainless tube,316 ss tubing |

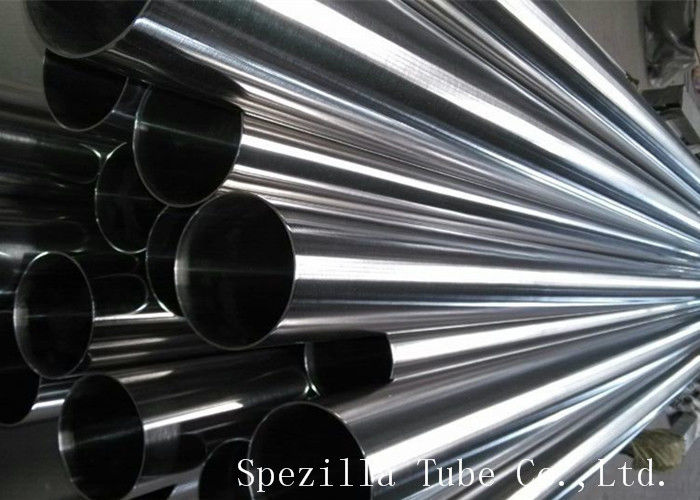

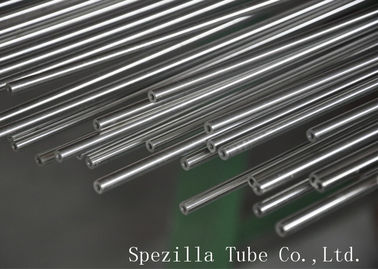

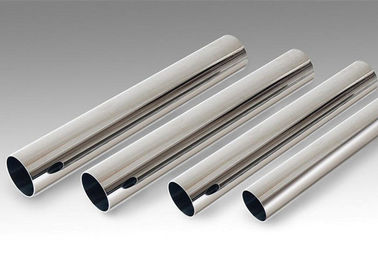

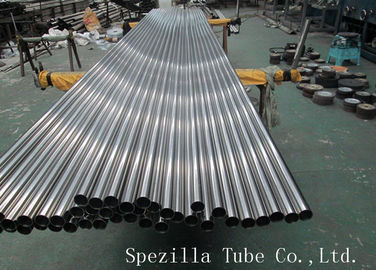

DIN 11850 Polished Pipe Stainless Steel EN1.4301 with Size 154x2MMx20FT
SPEZILLA is leading manufacturer & suppliers of stainless steel seamless and welded tubing manufactured as per DIN 11850 standards in grades SS304L, 904L, 321, SS316L with bright annealed finish, electropolished finish or mechanical polish & all stainless steel pipes, with strategic inventories for quick call-outs.
DIN11850 Sanitary stainless steel tubing as well sanitary stainless steel tube, meets sanitary standards available in stainless steel AISI 316L, 304L or 304 from 1” to 4” sizes, inside roughness ( 32 μ'/0,8 μm ) Ra 180 grit; outside surface finishing ( 150 grit / Brushed ) acording A270. Upon Request Inside surface finishing ( 20 μ'/0,5 μm ) Ra. for ASME A270 standards. To maintain clean standards tubes are packed individually in plastic sleeves and covered with plastic caps in both ends.
This product range provides a wide range of tubes with internal surface finishes that have a roughness average (Ra) of < 0.8 - 1.6 μ. Tubes in the hygienice range comply with DIN 11850.
Available Sizes:
OD from 1/2'' to 8'' (12.7MM to 203.20MM)
Wall thickness: 0.065'' to 0.083'' (1.65MM to 2.11MM)
Length: 20ft ( 6100MM)
Surface Polish:
Surface finish is 20 u-in Ra (0.5um) ID maximum, 30 u-in Ra (0.8um) OD maximum surface roughness measured per ASME/ANSI B46.1 with the profilo-meter reading at 90 degree to the lay. Other finishes available upon request.
Applications:
1. Heat Exchangers, Condensers & Pressure Vessels
2. Chemical & Petrochemical
3. Gas Industry
4. Power Generation
5. Pressure Vessels
6. Marine Equipments
7. Food & Beverage Processing
8. Automotive
9. Pulp & Paper
DIN 11850 Range 1 / 304L - 316L
OUTSIDE DIAMETER (MM) | WALL- THICKNESS (MM) | NOMINAL OUTSIDE DIAMETER | NOMINAL WALL THICKNESS | DIMENSIONAL STANDARD |
---|---|---|---|---|
12,00 | 1,00 | DN 10 | Range 1 | DIN 11850 Reihe 1 |
18,00 | 1,00 | DN 15 | Range 1 | DIN 11850 Reihe 1 |
22,00 | 1,00 | DN 20 | Range 1 | DIN 11850 Reihe 1 |
28,00 | 1,00 | DN 25 | Range 1 | DIN 11850 Reihe 1 |
34,00 | 1,00 | DN 32 | Range 1 | DIN 11850 Reihe 1 |
40,00 | 1,00 | DN 40 | Range 1 | DIN 11850 Reihe 1 |
52,00 | 1,00 | DN 50 | Range 1 | DIN 11850 Reihe 1 |
OUTSIDE DIAMETER (MM) | WALL- THICKNESS (MM) | NOMINAL OUTSIDE DIAMETER | NOMINAL WALL THICKNESS | DIMENSIONAL STANDARD |
---|---|---|---|---|
13,00 | 1,50 | DN 10 | Range 2 | DIN 11850 Reihe 2 |
19,00 | 1,50 | DN 15 | Range 2 | DIN 11850 Reihe 2 |
23,00 | 1,50 | DN 20 | Range 2 | DIN 11850 Reihe 2 |
29,00 | 1,50 | DN 25 | Range 2 | DIN 11850 Reihe 2 |
35,00 | 1,50 | DN 32 | Range 2 | DIN 11850 Reihe 2 |
41,00 | 1,50 | DN 40 | Range 2 | DIN 11850 Reihe 2 |
53,00 | 1,50 | DN 50 | Range 2 | DIN 11850 Reihe 2 |
70,00 | 2,00 | DN 65 | Range 2 | DIN 11850 Reihe 2 |
85,00 | 2,00 | DN 80 | Range 2 | DIN 11850 Reihe 2 |
104,00 | 2,00 | DN 100 | Range 2 | DIN 11850 Reihe 2 |
129,00 | 2,00 | DN 125 | Range 2 | DIN 11850 Reihe 2 |
154,00 | 2,00 | DN 150 | Range 2 | DIN 11850 Reihe 2 |
204,00 | 2,00 | DN 200 | Range 2 | DIN 11850 Reihe 2 |
DIN 11850 Stainless Steel Hygienic Tube | |
Standard | A270, DIN11850 |
Material |
Stainless Steel 304 or 304L, 316 & 316L (annealed, not annealed or bright annealed) |
Standard Length | 6 meters |
Internal Finishing | Polished with Ra ≤ 0.4μm or < 0.8μm pickled |
External Finishing | Brushed with Ra < 0.8μm |
Size |
ISO 0.5” ~ 4” DIN DN10 ~ DN300 |
