Product Details:
Payment & Shipping Terms:
|
| Product Name: | Stainless Steel Coil Tubing | Tubing Spec.: | ASTM B163 |
|---|---|---|---|
| ASTM: | ALLOY 825 | Inspection: | EN10204 3.1 |
| Tube Size: | 3.00MM - 25MM | Thickness: | 0.5MM - 3.0MM |
| Length: | 20ft | Grade No.: | W.Nr. 2.4858 |
| Shape: | Round | Package: | Wooden Case |
| Application: | Heat Exchanger | ||
| High Light: | stainless steel coil tube,ss coil tubing |
||

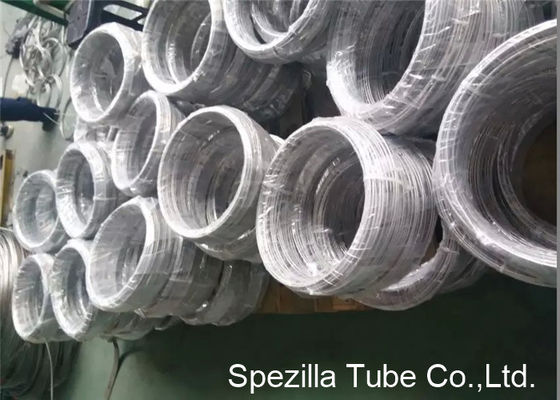

ASTM B163 stainless steel coil tube Incoloy 825 OD 1/2'' X 0.035''
Description:
Alloy 825 is an austenitic nickel-iron-chromium alloy with additions of copper, molybdenum and titanium. The alloy chemical composition is designed to provide exceptional corrosion resistance in both oxidizing and reducing environments. The nickel content is sufficient for resistance to chloride-ion stress corrosion cracking and the molybdenum also aids resistance to pitting and crevice corrosion. The addition of titanium stabilized the alloy 825 against sensitization and inter granular corrosion. The resistance of alloy 825 to general and localized corrosion under diverse conditions gives the alloy broad use fullness.
INCOLOY® alloy 825 (UNS N08825/W.Nr. 2.4858) is a nickel-iron-chromium alloy with additions of molybdenum, copper, and titanium. The alloy’s chemical composition, given in Table 1, is designed to provide exceptional resistance to many corrosive environments. The nickel content is sufficient for resistance to chloride-ion stress-corrosion cracking. The nickel, in conjunction with the molybdenum and copper, also gives outstanding resistance to reducing environments such as those containing sulfuric and phosphoric acids. The molybdenum also aids resistance to pitting and crevice corrosion. The alloy’s chromium content confers resistance to a variety of oxidizing substances such as nitric acid, nitrates and oxidizing salt. The titanium addition serves, with an appropriate heat treatment, to stabilize the alloy against sensitization to intergranular corrosion.
The resistance of INCOLOY alloy 825 to general and localized corrosion under diverse conditions gives the alloy broad usefulness. Applications include chemical processing, pollution control, oil and gas recovery, acid production, pickling operations, nuclear fuel reprocessing, and handling of radioactive wastes. Applications for alloy 825 are similar to those for INCOLOY alloy 020.
Features:
Exceptional resistance to many corrosive environments
Very good resistance to sulfuric and phosphoric acids
Good mechanical properties from moderately to high temperatures
Good formability and weld ability
Good resistance to stress-corrosion cracking and pitting
Applications:
Chemical process equipment
Oil and Gas well tubing
Chemical infection lines
Acid production
Down hole control lines
Specifications:
| Grade | Standards | Size | Max. Service Temperature |
|
Alloy 825 UNS N08825 Wst. 2.4858 |
ASTM B 163/ ASTM B 423/ASTM B 829 NACE MR0175/ISO 15156-3 |
3 – 25 mm OD 1/16’’ – 1’’ OD |
550°C / 1020°F |
| Technical composition (%) | Cr | Ni | Mo | Mn | Cu | Si | P | C | S | Ti | Al | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 825 | min | 19.5 | 38.0 | 2.5 | - | 1.5 | - | - | - | - | 0.60 | - |
| max | 23.5 | 46.0 | 3.5 | 1.00 | 3.0 | 0.50 | 0.030 | 0.05 | 0.030 | 1.20 | 0.20 | |
| Mechanical properties | 825 |
|---|---|
| Tensile strenght (mpa, min) | 590 |
| Yield strength (0.2% offset mpa, min) | 240 |
| Elongation (%, min) | 30 |
| Density / weight (g / cm3 / kg) | 8.14 |
