Product Details:
Payment & Shipping Terms:
|
Materials No.: | Inconel 625 UNS N06625 | Standard Specification: | ASTM B446 |
---|---|---|---|
OD: | 19.05MM | Thickness: | 2.11MM / 0.083'' |
MTR.: | MTC EN10204 3.1 | Test Method: | EDDY CURRENT |
High Light: | nickel alloy pipe,polished nickel tubing |

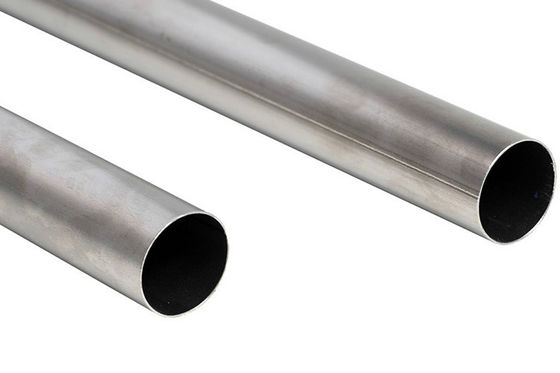

ASTM B446 ASTM B443 Inconel 625 UNS N06625 High Temperature NICKEL ALLOY SEAMLESS TUBING
Ni 58.0, Cr 21.5 Mo 9.0,Mn 0.50 C0.10 Si 0.50 Fe 5.0
High Performance Alloys stocks and produces Inconel 625 in this grade in the following forms: Bar, square bar, wire cuts, sheet, plate, tube, pipe, fastener, disk, machined, forged.
Overview
Inconel 625 is a material with excellent resistance to pitting, crevice and corrosion cracking. Inconel 625 is highly resistant in a wide range of organic and mineral acids. Good high temperature strength.
Characteristics
Applications
Specifications
Form |
Standard |
---|---|
Metal Type |
UNS N06625 |
Bar |
ASTM B446 AMS 5666 BS3076 |
Wire |
AMS 5837 |
Sheet |
ASTM B443 AMS 5599 BS3072 |
Plate |
ASTM B443 AMS 5599 BS3072 |
Pipe
|
ASTMB444 ASTM B704 AMS 5581 BS3074 GEB50TF133 |
Tube
|
ASTM B444 ASTM B704 AMS 5581 BS3074 GEB50TF133
|
Fitting |
ASTM B366 Din 17754 |
Forging |
|
Weld Wire
|
|
Weld Electrode
|
|
NA 21 |
All forms |
Din
|
2.4856 |
Chemistry
Chemical Requirements |
|||||||
---|---|---|---|---|---|---|---|
|
Ni |
Fe |
Cr |
Si |
Mo |
Mn |
C |
Max |
|
5.0 |
23.0 |
0.50 |
10.0 |
0.50 |
0.10 |
Min |
58.0 |
|
20.0 |
|
8.0 |
|
|
Tensile Data
Mechanical Property Requirements |
|||||
---|---|---|---|---|---|
|
Ultimate Tensile |
Yield Strength (0.2% OS) |
Elong. in 2 in. or 50mm or 4D, min., % |
R/A |
Hardness |
Cold Worked/Annealed | |||||
Min | 120 KSI | 60 KSi | 30 | ||
Max | |||||
Min | |||||
Max | |||||
Hot Worked/Annealed | |||||
Min | 120 KSi | 60 KSi | 30 | ||
Max | |||||
Min | |||||
Max |
