Product Details:
Payment & Shipping Terms:
|
Materials No.: | Alloy 625 UNS N06625 | Standard Specification: | ASTM B446 |
---|---|---|---|
OD: | 19.05MM | Thickness: | 2.11MM / 0.083'' |
MTR.: | MTC EN10204 3.1 | Test Method: | EDDY CURRENT |
Highlight: | nickel alloy tubing,polished nickel tubing |

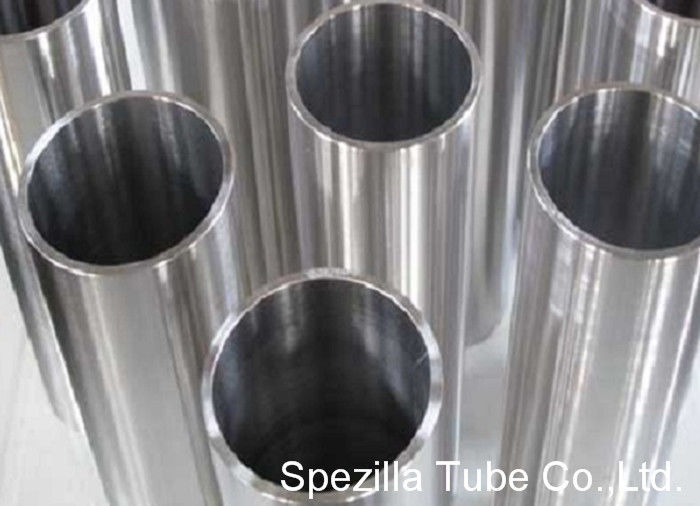

ASTM B446, ASTM B443 Alloy 625 UNS N06625 NICKEL ALLOY SEAMLESS TUBING
Inconel 625 is a material with excellent resistance to pitting, crevice and corrosion cracking. Inconel 625 is highly resistant in a wide range of organic and mineral acids. Good high temperature strength.
Characteristics
Applications
Specifications
Form |
Standard |
---|---|
Metal Type |
UNS N06625 |
Bar |
ASTM B446 AMS 5666 BS3076 |
Wire |
AMS 5837 |
Sheet |
ASTM B443 AMS 5599 BS3072 |
Plate |
ASTM B443 AMS 5599 BS3072 |
Pipe
|
ASTMB444 ASTM B704 AMS 5581 BS3074 GEB50TF133 |
Tube
|
ASTM B444 ASTM B704 AMS 5581 BS3074 GEB50TF133
|
Fitting |
ASTM B366 Din 17754 |
Forging |
|
Weld Wire
|
|
Weld Electrode
|
|
NA 21 |
All forms |
Din
|
2.4856 |
Chemistry
Chemical Requirements |
|||||||
---|---|---|---|---|---|---|---|
|
Ni |
Fe |
Cr |
Si |
Mo |
Mn |
C |
Max |
|
5.0 |
23.0 |
0.50 |
10.0 |
0.50 |
0.10 |
Min |
58.0 |
|
20.0 |
|
8.0 |
|
|
Tensile Data
Mechanical Property Requirements |
|||||
---|---|---|---|---|---|
|
Ultimate Tensile |
Yield Strength (0.2% OS) |
Elong. in 2 in. or 50mm or 4D, min., % |
R/A |
Hardness |
Cold Worked/Annealed | |||||
Min | 120 KSI | 60 KSi | 30 | ||
Max | |||||
Min | |||||
Max | |||||
Hot Worked/Annealed | |||||
Min | 120 KSi | 60 KSi | 30 | ||
Max | |||||
Min | |||||
Max |
