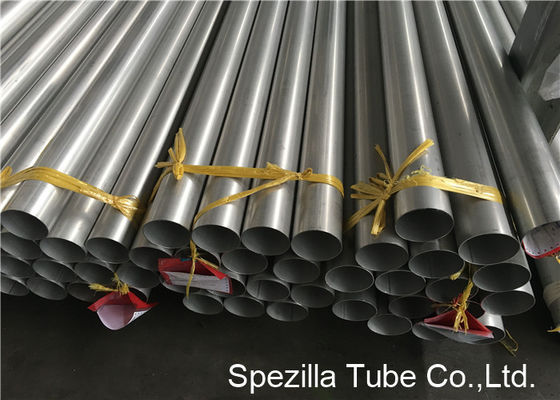

Monel UNS N04400 Polished Nickel Tubing W.Nr. 2.4360 OD 60.3X3.91 MM High Precision

Monel UNS N04400 Seamless Nickel Alloy Tube W.Nr. 2.4360 OD 60.3X3.91 MM

Description:

Common Trade Names: Monel 400, Alloy 400; Nickel 400; Nickelvac 400; Nicorros 400.

Monel® Alloy nickel-copper alloy 400 (UNS N04400; W.Nr. 2.4360 and 2.4361) is a solid-solution alloy that can be hardened only by cold working. It has high strength and toughness over a wide temperature range and excellent resistance to many corrosive environments.

Alloy 400 is widely used in many fields, especially marine and chemical processing. Typical applications are valves and pumps; pump and propeller shafts; marine fixtures and fasteners; electrical and electronic components; springs; chemical processing equipment; gasoline and fresh water tanks; crude petroleum stills, process vessels and piping; boiler feed water heaters and other heat exchangers; and deaerating heaters.

Monel 400 is a Nickel-Copper alloy, resistant to sea water and steam at high temperatures as well as to salt and caustic solutions.

Monel 400 is a nickel-copper alloy with excellent corrosion resistance in a wide variety of media. Monel 400 is characterized by good general corrosion resistance, good weldability and moderate to high strength. The alloy has been used in a variety of applications. It has excellent resistance to rapidly flowing brackish water or seawater. It is particularly resistant to hydrochloric and hydrofluoric acids when they are de-aerated. The alloy is slightly magnetic at room temperature. Monel 400 is widely used in the chemical, oil and marine industries.

Characteristics:

Corrosion resistance in an extensive range of marine and chemical environments. From pure water to nonoxidizing mineral acids, salts and alkalis.

This alloy is more resistant to nickel under reducing conditions and more resistant than copper under oxidizing conditions, it does show however better resistance to reducing media than oxidizing.

Good mechanical properties from subzero temperatures up to about 480C.

Good resistance to sulfuric and hydrofluoric acids. Aeration however will result in increased corrosion rates.

May be used to handle hydrochloric acid, but the presence of oxidizing salts will greatly accelerate corrosive attack.

Resistance to neutral, alkaline and acid salts is shown, but poor resistance is found with oxidizing acid salts such as ferric chloride.

Excellent resistance to chloride ion stress corrosion cracking.

Specifications:

MONEL® alloy 400 is designated as UNS N04400 and Werkstoff Nr. 2.4360 and 2.4361. It is listed in NACE MR-01-75 for oil and gas service.

Plate, Sheet, and Strip: - BS3072NA13 (Sheet and Plate), BS3073NA13 (Strip), ASTM B 127, ASME SB 127 (Plate,Sheet, and Strip), SAE AMS 4544 (Sheet, Strip, and Plate),
DIN 17750 (Plate, Strip and Sheet), QQ-N-281 (Plate, Sheet, Strip, Bar, Rod, Wire, and Forgings)

Bar, Rod, Wire, and Forgings - BS3075NA13 (Wire), BS3076NA13 (Bar), ASTM B 164 (Rod, Bar, and Wire), ASTM B 564 (Forgings), ASME SB 164 (Rod, Bar, and Wire), ASME SB 564 (Forgings), AECMA PrEN 2305 (Wire for Rivets), SAE AMS 4675 (Bars and Forgings),SAE AMS 4730 (Wire), SAE AMS 4731 (Wire and Ribbon), DIN 17752 (Rod and Bar), DIN 17753 (Wire), DIN 17754 (Forgings), VdTÜV 263 (Sheet, Plate, Bar, and Tubing), QQ-N-281 (Plate, Sheet, Strip, Bar, Rod, Wire, and Forgings)

Pipe and Tube - BS3074NA13 (Tube), ASTM B 163 (Condenser and Heat Exchanger Tube), ASTM B 165 (Seamless Pipe and Tube), ASTM B 725 (Welded Pipe), ASTM B 730 (Welded Tube), ASTM B 751 (Welded Tube), ASTM B 775 (Welded Pipe), ASTM B 829 (Seamless Pipe and Tube), ASME SB 163 (Condenser and Heat Exchanger Tubes), ASME SB 165 (Seamless Pipe and Tube), ASME SB 725 (Welded Pipe), ASME SB 730 (Welded Tube), ASME SB 751 (Seamless and Welded Tube), ASME SB 775 (Seamless and Welded Pipe), ASME SB 829 (Seamless Pipe and Tube), SAE AMS 4574 (Seamless Tubing), DIN 17751 (Pipe and Tube), VdTÜV 263 (Sheet, Plate, Bar, and Tubing),

Welding Products - MONEL Filler Metal 60-AWS A5.14/ERNiCu-7; MONEL Welding Electrode 190-AWS A5.11/ENiCu-7.

Other Products - ASTM B 366, ASME SB 366 (Welded Fittings), SAE AMS 7233 (Rivets), DIN 17743 (Chemical Composition)

Trademark Notice: Some names are trade names and/or trademarks of specific manufacturers. American Special Metals, Corp. is not affiliated with any manufacturer(s). Orders will be filled to meet specifications from any available source(s). Names are listed solely for reference to help identify products consistent with listed specifications.

Monel® Alloy 400 is a Registered Trademarks of Special Metals Corporation and Its subsidiaries.

ASTM Specifications:

Mechanical Properties:

Typical room temperature Tensile Properties of Annealed Material

Applications:

Feed water and steam generator tubing.

Brine heaters, sea water scrubbers in tanker inert gas systems.

Sulfuric acid and hydrofluoric acid alkylation plants.

Pickling bat heating coils.

Heat exchangers in a variety of industries.

Transfer piping from oil refinery crude columns.

Plant for the refining of uranium and isotope separation in the production of nuclear fuel.

Pumps and valves used in the manufacture of perchlorethylene, chlorinated plastics.

Monoethanolamine (MEA) reboiling tube.

Cladding for the upper areas of oil refinery crude columns.

Propeller and pump shafts.
