Product Details:
Payment & Shipping Terms:
|
Material Grade: | TP316/316L | Size Range: | OD: 6.00mm - 38.10mm; WT: 0.30mm - 3.00mm |
---|---|---|---|
Specification: | EN10216-5 ASME SA213 | Finishing Options: | Bright Annealing, Pickling, Polishing, Custom Cutting |
Test Certificate: | EN10204 3.1 | Packaging: | Wooden Box, Bundled, Export Packaging Available |
Product Name: | Seamless Stainless Steel Heat Exchanger Tube | Quality: | 100%ET |
High Light: | sanitary stainless steel tubing,304 stainless steel tube |

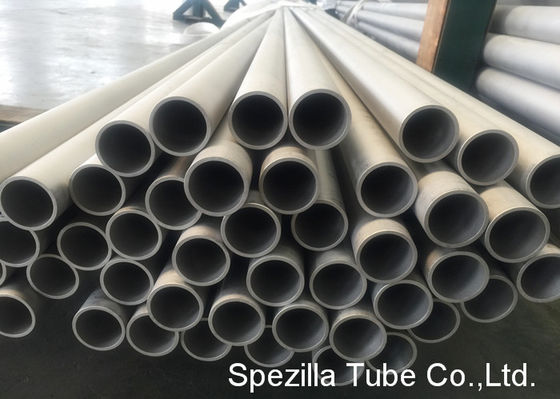

TP316/316L SA-213 Seamless Cold Drawn Stainless Steel Heat Exchanger and Condenser Tubes
Seamless cold-drawn stainless steel heat exchanger and condenser tubes.
The most common seamless stainless steel tubing is the 300 series of alloys, which are available in varieties of high-performance, corrosion-resistant types and sizes. These stainless steel alloys most commonly include chromium, nickel, and molybdenum, and are ideal for heat exchanger tubing because they are easy to maintain. have good corrosion resistance and can withstand high pressures and temperatures.
316 Stainless Steel provides the best resistance to pitting and corrosion of any of the austenitic (300 series) stainless steels. It is extremely ductile, with excellent strength at elevated temperatures. Seamless tubing can be produced with heavier wall thicknesses for mechanical applications. It is ideal for hydraulic and instrumentation tubing in chemical, textile, and pulp and paper industries, and in marine environments.
Spezilla is a producer stainless steel seamless tubing and a variety of alloys used in a variety of processes in the oil and gas, power, chemical, marine and defense industries. Spezilla provides custom tube from ¼” – 3″ outside diameter and .020″ to .100″ wall thickness.
Description:
Item Code: | SPS-TP316/316L |
Tube OD.: | 6.00 - 38.10MM |
Wall: | 0.50 - 3.00MM |
Length: | 6000MM - 25000MM |
Material: | AISI 316/316L |
Standard: | ASTM A213 / ASME SA213 |
Finish: | BA / Bright Annealed. AP / Annealed & Pickled. |
Type: | Seamless Cold Drawn |
Certification: | ISO9001:2015 |
Mill Test Certificate: | EN10204 3.1 |
Packing: | Sleeved, Wooden Boxed |
C |
Si |
Ni |
Mn |
P |
Cr |
S |
Mo |
0.08 |
1.0 |
10.0-14.0 |
2.0 |
0.045 |
16.0-18.0 |
.030 |
2.0 -3.0 |
Grade | Specification |
Stainless 304/304L, 304/304H | ASTM A213/SA213 |
Stainless 309S | ASTM A213/SA213 |
Stainless 310S | ASTM A213/SA213 |
Stainless 316/316L, 316/316H | ASTM A213/SA213 |
Stainless 317/317L | ASTM A213/SA213 |
Stainless 321/321H | ASTM A213/SA213 |
Stainless 347/347H | ASTM A213/SA213 |
Annealed & Pickled.
Quality Assurance:
Spezilla's 316/316L seamless heat exchanger stainless steel tubes are produced acc. to the following process and inspection to assure our quality:
1. Chemical Composition Analysis Test With 100% PMI.
2. Solution Annealing / Bright Annealed.
3. 100% Hydrostatic Test and 100% Eddy Current Test
4. Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test.
5. Impact Test subject to Standard request.
6. Grain Size Test and Intergranular Corrosion Test.
7. Visual Test and Endoscope Test for Surface Quality Test
Typical Applications:
Falling Film Evapotators
Condensers
Tube and Shell Heat exchangers
Typical Manufacturing Specifications:
ASME SA213
ASTM A213
ASTM A269
EN10216-5
Also individual customer specifications.
